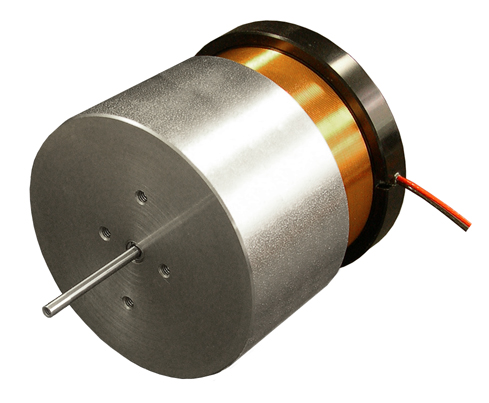

The GVM-095-051-01 Linear Voice Coil Servo Motor, also called a moving
coil motor, features: High acceleration/deceleration, high speed, smooth motion
even at very low speeds, and high precision, accuracy and repeatability when
operated in a closed servo loop.
This brushless servo motor has a 1.0
in. (25.4 mm) stroke with 23.5 lbs. (104.6 N) of continuous force for a high
force-to-size ratio and 74.0 lbs. (329.3 N) of peak force at a 10% duty cycle.
The precision ground diameter shaft, guided by a bearing, is 1.78 in. (45.2 mm)
long in the extended position. The shaft can tolerate side loads to 5 lbs. (22
N), and has a 4-40 UNC 2B x 0.38 deep thread for backlash free connection to a
load.

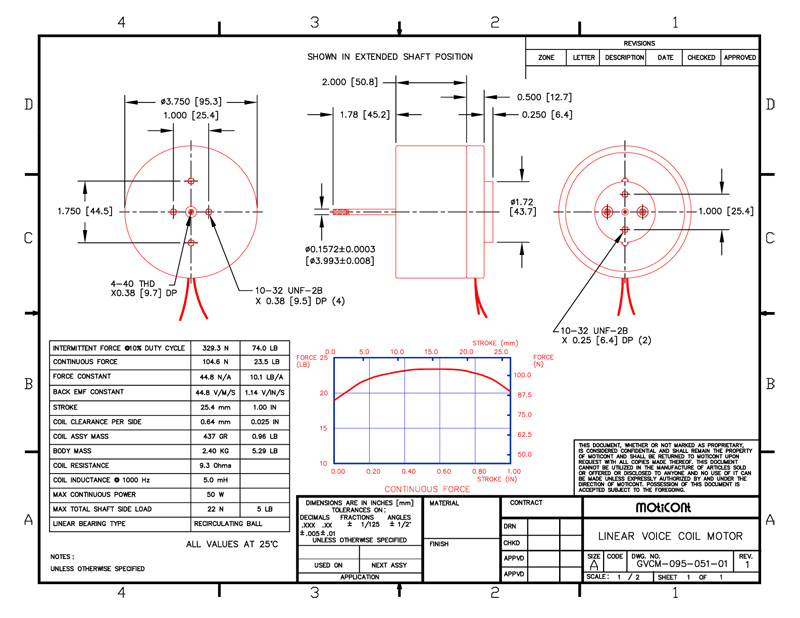

Compact, the GVCM-095-051-01 motor is 3.750 in. (95.3 mm) in
diameter and the housing is just 2.0 in. (63.5 mm) long. When the shaft is
extended the coil end extends beyond the housing by 1.780 in. (45.2 mm) and the
housing and coil ends each have two 10-32 UNF-2B threaded holes on 1.00 in.
(25.4mm) bolt circles for easy installation.
The quiet, reliable,
efficient, smooth motion of this clean, low inertia GVCM-095-051-01 Linear Voice
Coil Motor makes it the ideal choice for: Assembly, clamping and work holding,
sorting equipment, medical devices, optical focusing, antenna positioning,
shutters and doors, testing, slide actuators, valve actuation, and wafer
handling.
|
