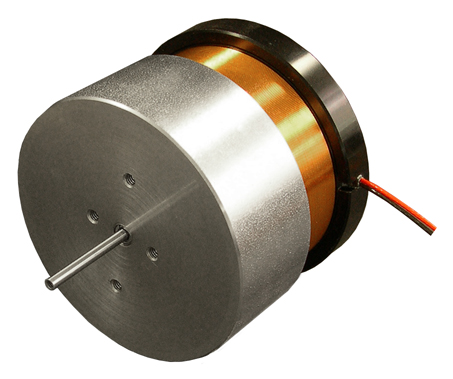

Linear Motor with Internal Shaft & Bearing, GVCM-095-038-01
Continuous
Force: 23.1 lb (102.8 N), Stroke: 0.50 in (12.7 mm)
 |
 |
 |
 |
| Housing Outside Diameter, 3.750 inch, 95.3 mm | ||||||||
|
||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| GVCM-095-038-01 | 0.50 | inch | 23.1 | lb | 73.1 | lb | 1.50 | inch |
Datasheet in PDF  |
12.7 | mm | 102.8 | N | 325.3 | N | 38.1 | mm |

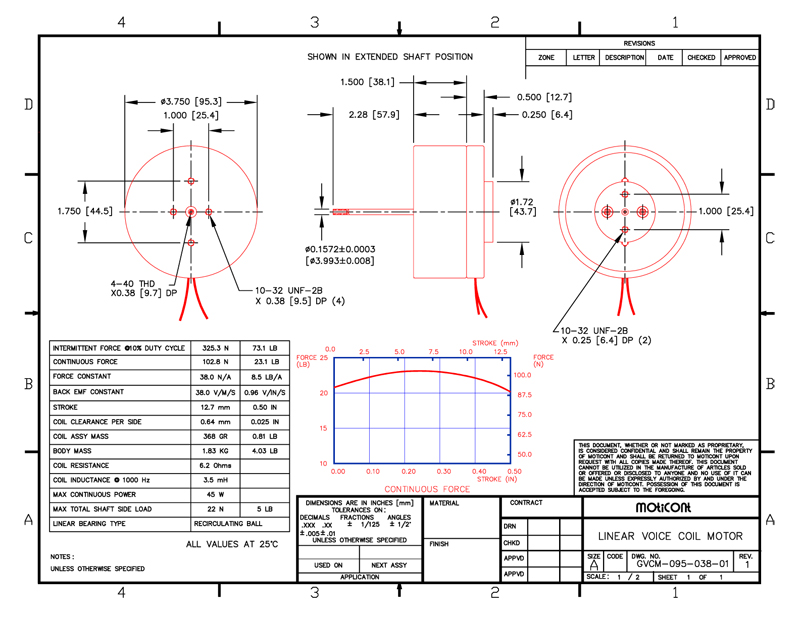

Drawing quick view
 |
Download 3D STEP | |||||||
