Linear Motor with Internal Shaft & Bearing, GVCM-051-089-01
Continuous Force: 5.9 lb (26.2 N), Stroke: 2.25 in (57.2 mm)




Previous Buy Online View Cart Next
Housing Outside Diameter, 2.000 inch, 50.8 mm

Linear Voice Coil Motor with Internal Bearing

A high Force-to-Size ratio is just one of the many features of Moticont’s GVCM-051-089-02 Linear Voice Coil Actuator with Built-in Bearing.

Applying up to 66.4 N (14.9 lbs) of continuous force and 210 N (47.2 lbs) of peak force, this linear voice coil actuator or moving coil actuator features high speed, high acceleration/deceleration, and zero backlash.

It exhibits very high accuracy, and high repeatability if a position sensor is used. This clean, quiet, efficient, low inertia, non-commutated linear actuator features high reliability and is ideal for: Medical devices, work holding and clamping, assembly equipment, testing, sorting, laser machining and drilling, wafer handling, optical focusing, dynamic vibration absorption, scanners, laser beam steering, filtering, and antenna positioning.

This compact linear actuator is 50.8 mm (2.000 in) in diameter and the total length of the actuator including the 82 mm (3.26 in) shaft extension is 190.5 mm (7.53 in). The diameter of the precision ground shaft is 5.99 mm (0.2360 in.) with a M3X0.5 internal thread. The shaft is supported by a long-life plain bushing and tolerates side loads to 4.4 N (1lb). The housing and coil end have threaded mounting holes on a 25.4 mm (1.000 in) bolt circle for easy integration into current and future applications.
Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
GVCM-051-089-01S06 2.25 inch 5.9 lb 18.6 lb 3.50 inch
Datasheet in PDF 57.2 mm 26.2 N 82.7 N 88.9 mm

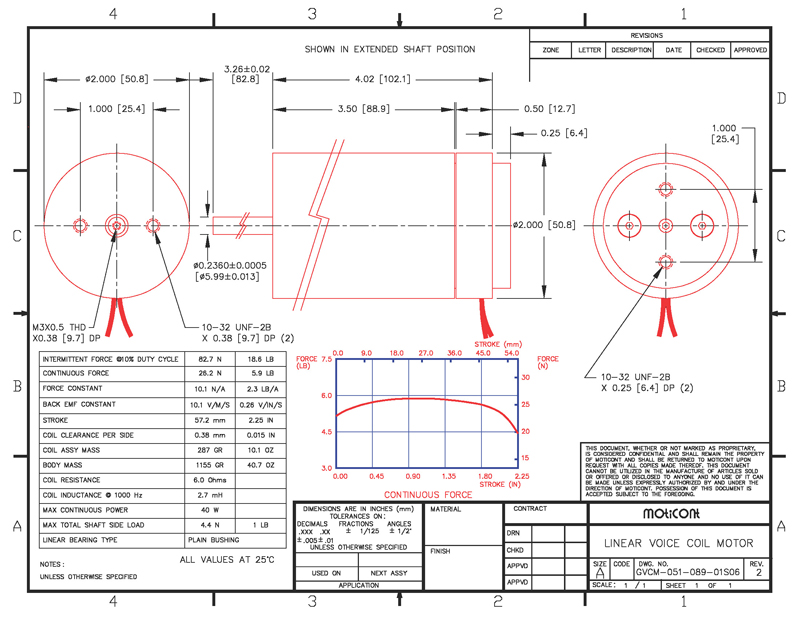

Drawing quick view Mechanical Drawing Download 3D STEP
