This compact 0.875 in. (22.2 mm) diameter high
speed, high force-to-size linear motor features
high accuracy and high repeatability when
operated in a closed loop as a DC servo motor.
This brushless servo motor is clean, quiet and
has long life, low mass and high
acceleration/deceleration for high throughput.
This linear voice coil motor, also known as
a moving coil motor or actuator is ideal for:
Haptic feedback, medical devices, wafer
handling, optical focusing, dynamic vibration
absorption, work holding and clamping, assembly,
testing, positioning, scanners, laser beam
steering, laser speckle correction and
filtering.

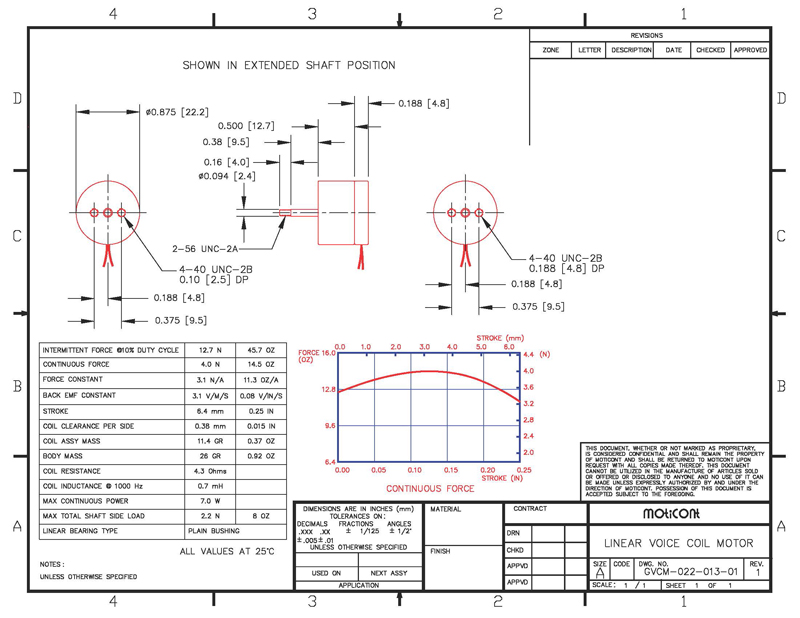

The 0.094 in. (2.4 mm)
diameter shaft has a 2-56 UNC-2A thread and
exerts 14.5 oz. (4.0 N) of continuous force and
45.7 oz (12.7 N) peak force with a 0.25 in. (6.4
mm) stroke. The housing length is 0.500 in.
(12.7 mm) long, the shaft extension is 0.54 in.
(13.5 mm) for a total length (including shaft)
of 1.22 in. (31 mm). For easy integration into
new and existing applications the housing and
coil ends have two 4-40 UNC-2B threaded holes on
a 0.375 (9.5 mm) bolt circle.
|
