Linear Motor with Internal Shaft & Bearing, GVCM-019-016-02
Continuous
Force: 7.4 Oz (2.1 N), Stroke: 0.250 in (6.4 mm)
 |
 |
 |
 |
| Housing Outside Diameter, 0.750 inch, 19.1 mm | ||||||||||
|
||||||||||
|
This small 0.75 in. (19.1 mm) diameter actuator,
also called an Electric Cylinder, has a high force
to size ratio of 7.4 oz (2.1 N) continuous force and
23.7 oz (4.4 N) of peak force and a stroke length of
0.250 in. (6.4 mm). The housing measures just 0.625
in. long and in the fully extended position the
shaft extends 0.436 in. (13.5 mm) beyond the face of
the housing. This linear actuator features high acceleration/deceleration, high speed, high reliability, and zero backlash. This small brushless servo motor is an ideal low cost replacement for pneumatic linear actuators and for: Heptic feedback and pipetting in medical devices, switch activation, testing, sorting, assembly equipment, work holding and clamping, scanners and laser beam steering and filtering, laser, machining and drilling, optical focusing, and dynamic vibration absorption. Clean and quiet, this brushless servo linear actuator’s 0.094 in. (2.38 mm) diameter shaft has a 2-56-UNC-2A thread to a length of 0.156 in. (4.0 mm) for a backlash free connections and the housing and coil ends each have 2 4-40 UNC-2B threaded mounting holes on 0.313 in (7.9 mm) centers. The built in centered shaft facilitates the commissioning of the motor for easy integration into current and future applications. |
||||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||||
| GVCM-019-016-02 | 0.250 | inch | 7.4 | oz | 23.7 | oz | 0.625 | inch | ||
Datasheet in PDF  |
6.4 | mm | 2.1 | N | 6.6 | N | 15.9 | mm | ||

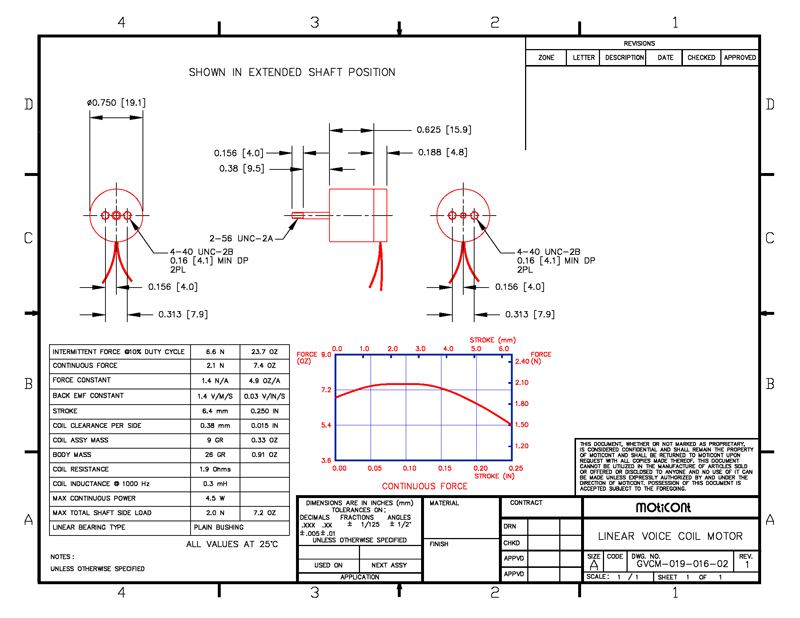

Drawing quick view
 |
Download 3D STEP | |||||||||
