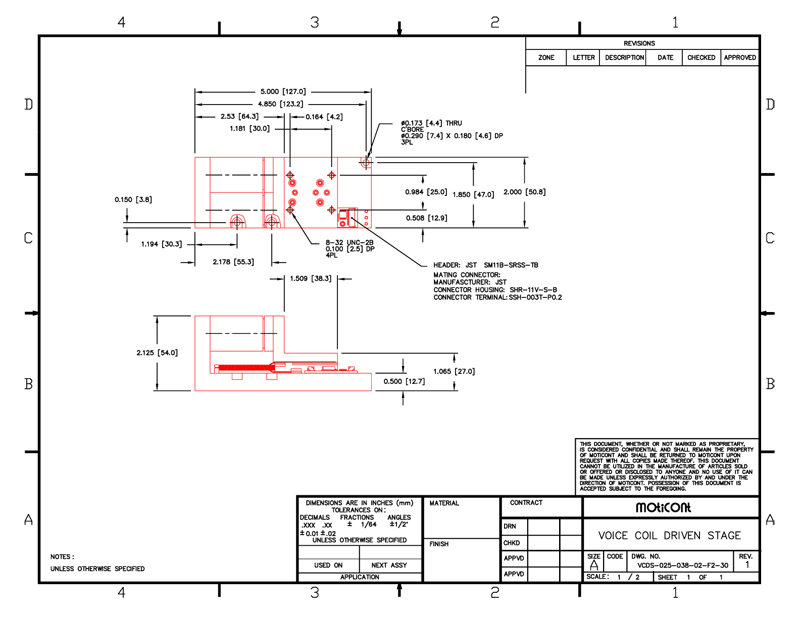

Linear Voice Coil Stage, VCDS-025-038-02-F2-30
Continuous Force: 2.0 lb (9.2 N), Range of Motion: 0.97” (24.6 mm), Resolution: 30 microns

Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

Cable is not included and is sold separately
Optional cables CBL-01 or CBL-04

VCDS-025-038-02-F2-30

STAGE SPECIFICATIONS
Intermittent Force @ 10% Duty Cycle	28.8	N	6.4	lb
Continuous Force	9.2	N	2.0	lb
Force Constant	3.9	N/A	0.88	lb/A
BACK EMFConstant	3.9	V/M/S	0.10	V/in/S
Stroke	24.6	mm	0.97	in
Moving Mass	150	gr	5.3	oz
Total Mass	651	gr	23.0	oz
Coil Resistance	3.7	Ohm
Coil Inductance at 1000 Hz	1.2	mH
Continuous Power	20	W

Pin Assignment

Pin	Description
1	+5 VDC Power
2	A- Channel of Quadrature Encoder
3	B+ Channel of Quadrature Encoder
4	A+ Channel of Quadrature Encoder
5	Return for +5 VDC Power
6	Reference Signal, Active High
7	B- Channel of Quadrature Encoder
8	Motor Minus
9	Motor Plus

Linear Voice Coil Stage, VCDS-025-038-02-F2-30Continuous Force: 2.0 lb (9.2 N), Range of Motion: 0.97” (24.6 mm), Resolution: 30 microns
