Vacuum Compatible Linear DC Motors

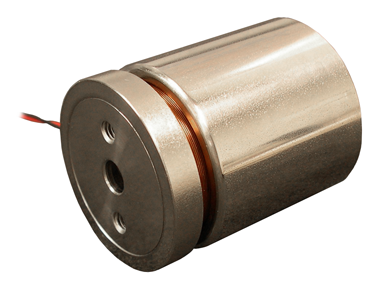

Vacuum Compatible Voice Coil Motor


All models of Linear Voice Coil Motors, Linear Voice Coil Motors with Internal Bearing and Hollow Core Linear Voice Coil Motors are available with vacuum compatibility.

Vacumm Compatible Linear Voice Coil Motors

Model #

 Stroke   Continuous Force



   Intermittent Force @ 10% Duty Cycle   Force Constant



   Coil Mass



   Body Mass



   Housing Outside Diameter   Housing Length




LVCM-010-013-01VCM 0.25 inch 1.0 oz 3.2 oz 1.0 oz/A 0.09 oz 0.13 oz 0.375 inch 0.500 inch
  6.4 mm 0.28 N 0.88 N 0.29 N/A 2.5 gr 3.8 gr 9.5 mm 12.7 mm

LVCM-013-008-02VCM 0.125 inch 2.9 oz 9.1 oz 3.5 oz/A 0.1 oz 0.18 oz 0.500 inch 0.313 inch
  3.2 mm 0.8 N 2.53 N 0.97 N/A 2.7 gr 5.0 gr 12.7 mm 8.0 mm

LVCM-013-013-02VCM 0.25 inch 3.1 oz 9.8 oz 2.5 oz/A 0.19 oz 0.27 oz 0.500 inch 0.500 inch
  6.4 mm 0.86 N 2.73 N 0.69 N/A 5.4 gr 7.6 gr 12.7 mm 12.7 mm

LVCM-013-013-3VCM 0.125 inch 5.1 oz 16.1 oz 4.1 oz/A 0.19 oz 0.27 oz 0.500 inch 0.500 inch
  6.4 mm 1.42 N 2.73 N 1.14 N/A 5.4 gr 7.6 gr 12.7 mm 12.7 mm

LVCM-013-019-02VCM 0.50 inch 2.9 oz 9.2 oz 2.8 oz/A 0.23 oz 0.37 oz 0.500 inch 0.750 inch
  12.7 mm 0.81 N 2.55 N 0.77 N/A 6.4 gr 10.6 gr 12.7 mm 19.1 mm

LVCM-013-019-03VCM 0.25 inch 6.8 oz 21.6 oz 6.5 oz/A 0.23 oz 0.37 oz 0.500 inch 0.750 inch
  6.4 mm 1.9 N 6.01 N 1.82 N/A 6.4 gr 10.6 gr 12.7 mm 19.1 mm

LVCM-013-025-02VCM 0.75 inch 2.9 oz 9.0 oz 2.9 oz/A 0.32 oz 0.49 oz 0.500 inch 1.000 inch
  19.1 mm 0.79 N 2.51 N 0.80 N/A 9.0 gr 13.8 gr 12.7 mm 25.4 mm

LVCM-013-025-03VCM 0.375 inch 7.9 oz 25.0 oz 8.0 oz/A 0.32 oz 0.49 oz 0.500 inch 1.000 inch
  9.5 mm 2.20 N 6.96 N 2.22 N/A 9.0 gr 13.8 gr 12.7 mm 25.4 mm

LVCM-013-032-02VCM 1.00 inch 2.5 oz 7.9 oz 2.7 oz/A 0.38 oz 0.60 oz 0.500 inch 1.250 inch
  25.4 mm 0.70 N 2.20 N 0.76 N/A 10.8 gr 17 gr 12.7 mm 31.8 mm

LVCM-013-032-03VCM 0.50 inch 7.9 oz 25.0 oz 8.6 oz/A 0.38 oz 0.60 oz 0.500 inch 1.250 inch
  12.7 mm 2.20 N 6.95 N 2.39 N/A 10.8 gr 17 gr 12.7 mm 31.8 mm

LVCM-013-044-02VCM 1.50 inch 2.5 oz 8.0 oz 3.0 oz/A 0.52 oz 0.88 oz 0.500 inch 1.750 inch
  38.1 mm 0.71 N 2.23 N 0.84 N/A 14.6 gr 25 gr 12.7 mm 44.5 mm

LVCM-013-044-03VCM 0.60 inch 6.9 oz 21.7 oz 8.01 oz/A 0.51 oz 0.88 oz 0.500 inch 1.750 inch
  15.2 mm 1.9 N 6.0 N 2.23 N/A 14.5 gr 25 gr 12.7 mm 44.5 mm

LVCM-016-010-01VCM 0.125 inch 5.9 oz 18.6 oz 4.0 oz/A 0.18 oz 0.25 oz 0.625 inch 0.375 inch
  3.2 mm 1.6 N 5.2 N 1.1 N/A 5.0 gr 7.0 gr 15.9 mm 9.5 mm
LVCM-016-013-01VCM 0.25 inch 6.3 oz 20.0 oz 5.1 oz/A 0.25 oz 0.42 oz 0.625 inch 0.500 inch
  6.4 mm 1.8 N 5.6 N 1.4 N/A 7.0 gr 12 gr 15.9 mm 12.7 mm

LVCM-016-019-01VCM 0.50 inch 6.1 oz 19.3 oz 6.3 oz/A 0.32 oz 0.60 oz 0.625 inch 0.750 inch
  12.7 mm 1.7 N 5.4 N 1.7 N/A 9.0 gr 17 gr 15.9 mm 19.1 mm

LVCM-019-016-02VCM 0.25 inch 8.9 oz 28.0 oz 5.28 oz/A 0.28 oz 0.9 oz 0.750 inch 0.875 inch
  6.4 mm 2.5 N 7.8 N 1.5 N/A 8 gr 26 gr 19.1 mm 22.2 mm

LVCM-019-022-02VCM 0.5 inch 8.1 oz 25.7 oz 5.74 oz/A 0.39 oz 1.3 oz 0.750 inch 0.875 inch
  12.7 mm 2.3 N 7.1 N 1.6 N/A 11 gr 36 gr 19.1 mm 22.2 mm

LVCM-019-032-02VCM 0.875 inch 8.1 oz 25.7 oz 7.12 oz/A 0.49 oz 1.7 oz 0.750 inch 1.250 inch
  22.2 mm 2.3 N 7.2 N 2.0 N/A 14 gr 48 gr 19.1 mm 31.8 mm

LVCM-019-048-02VCM 1.5 inch 7.4 oz 23.5 oz 7.06 oz/A 0.71 oz 2.6 oz 0.750 inch 1.875 inch
  38.1 mm 2.1 N 6.5 N 2.0 N/A 20 gr 73 gr 19.1 mm 47.6 mm

LVCM-022-013-01VCM 0.25 inch 14.5 oz 45.7 oz 11.3 oz/A 0.37 oz 0.92 oz 0.875 inch 0.500 inch
  6.4 mm 4.0 N 12.7 N 3.1 N/A 10.4 gr 26.0 gr 22.2 mm 20.7 mm

LVCM-022-013-02VCM 0.25 inch 5.9 oz 18.7 oz 5.9 oz/A 0.27 oz 0.75 oz 0.500 inch 0.500 inch
  6.4 mm 1.6 N 5.2 N 1.6 N/A 7.7 gr 21.3 gr 12.7 mm 12.7 mm

LVCM-025-022-01VCM 0.38 inch 16.9 oz 53.5 oz 11.1 oz/A 0.71 oz 2.2 oz 1.000 inch 0.875 inch
  9.5 mm 4.7 N 14.9 N 3.1 N/A 20 gr 62 gr 25.4 mm 22.2 mm

LVCM-025-022-02VCM 0.19 inch 26.5 oz 83.9 oz * oz/A * oz   oz * inch * inch
  4.8 mm 7.4 N 23.3 N * N/A * gr   gr * mm * mm

LVCM-025-029-01VCM 0.63 inch 18.2 oz 57.7 oz 13.5 oz/A 0.95 oz 2.8 oz 1.000 inch 1.125 inch
  15.9 mm 5.1 N 16.0 N 3.75 N/A 27 gr 78 gr 25.4 mm 28.6 mm

LVCM-025-029-02VCM 0.31 inch 37.6 oz 118.9 oz * oz/A * oz   oz * inch * inch
  7.9 mm 10.5 N 33.1 N * N/A * gr   gr * mm * mm

LVCM-025-038-01VCM 0.37 inch 2.5 lb 7.8 lb 2.0 lb/A 1.16 oz 3.6 oz 1.000 inch 1.50 inch
  9.5 mm 11 N 34.7 N 9.0 N/A 33 gr 102 gr 25.4 mm 38.1 mm

LVCM-025-038-02VCM 1.00 inch 16.4 oz 51.9 oz 0.88 lb/A 1.22 oz 3.6 oz 1.000 inch 1.50 inch
  25.4 mm 4.6 N 14.4 N 3.9 N/A 35 gr 102 gr 25.4 mm 38.1 mm

LVCM-032-025-02VCM 0.50 inch 2.1 lb 6.6 lb 0.88 lb/A 0.99 oz 4.5 oz 1.250 inch 1.00 inch
  12.7 mm 9.3 N 29.3 N 3.9 N/A 28 gr 127 gr 31.8 mm 25.4 mm

LVCM-032-038-02VCM 1.00 inch 1.9 lb 5.9 lb 0.94 lb/A 1.34 oz 6.5 oz 1.250 inch 1.50 inch
  25.4 mm 8.3 N 26.1 N 4.2 N/A 38 gr 184 gr 31.8 mm 28.6 mm

LVCM-032-076-02VCM 2.50 inch 1.8 lb 5.7 lb 1.11 lb/A 2.40 oz 12.7 oz 1.250 inch 3.0 inch
  63.5 mm 8.0 N 25.3 N 5.0 N/A 68 gr 360 gr 31.8 mm 76.2 mm

LVCM-038-038-01VCM 0.75 inch 3.0 lb 9.5 lb 2.3 lb/A 1.90 oz 9.5 oz 1.500 inch 1.50 inch
  19.1 mm 13.4 N 42.5 N 10.1 N/A 54 gr 270 gr 38.1 mm 38.1 mm

LVCM-038-038-02VCM 0.38 inch 5.6 lb 17.7 lb 3.9 lb/A 1.83 oz 9.3 oz 1.500 inch 1.50 inch
  9.5 mm 24.9 N 78.8 N 17.3 N/A 52 gr 265 gr 38.1 mm 38.1 mm

LVCM-044-032-02VCM 0.50 inch 5.0 lb 15.8 lb 2.8 lb/A 2.3 oz 11.3 oz 1.750 inch 1.25 inch
  12.7 mm 22.2 N 70.4 N 12.3 N/A 64 gr 320 gr 44.5 mm 31.8 mm

LVCM-044-051-01VCM 1.25 inch 4.9 lb 15.4 lb 2.3 lb/A 5.8 oz 14.3 oz 1.750 inch 2.00 inch
  31.8 mm 21.6 N 68.4 N 10.3 N/A 165 gr 405 gr 44.5 mm 50.8 mm

LVCM-044-051-02VCM 1.25 inch 5.0 lb 15.8 lb 1.6 lb/A 3.2 oz 17.5 oz 1.750 inch 2.00 inch
  31.8 mm 22.3 N 70.4 N 6.9 N/A 90 gr 497 gr 44.5 mm 50.8 mm

LVCM-051-025-01VCM 0.50 inch 5.3 lb 16.9 lb 1.6 lb/A 3.2 oz 11.5 oz 2.000 inch 1.00 inch
  12.7 mm 23.7 N 74.8 N 6.9 N/A 92 gr 326 gr 50.8 mm 25.4 mm

LVCM-051-032-01VCM 0.75 inch 6.3 lb 20.0 lb 1.9 lb/A 3.6 oz 14.4 oz 2.000 inch 1.25 inch
  19.1 mm 28.2 N 89.9 N 8.4 N/A 103 gr 409 gr 50.8 mm 31.8 mm

LVCM-051-051-01VCM 0.75 inch 6.3 lb 19.9 lb 1.8 lb/A 4.23 oz 24.2 oz 2.000 inch 2.00 inch
  19.1 mm 28.0 N 88.6 N 8.0 N/A 120 gr 685 gr 50.8 mm 50.8 mm

LVCM-051-051-05VCM 1.00 inch 6.6 lb 20.8 lb 1.98 lb/A 4.23 oz 23.6 oz 2.000 inch 2.00 inch
  25.4 mm 29.3 N 92.6 N 8.8 N/A 120 gr 670 gr 50.8 mm 50.8 mm

LVCM-051-051-06VCM 1.25 inch 3.0 lb 9.5 lb * lb/A * lb   lb * inch * inch
  31.8 mm 13.3 N 42.2 N * N/A * gr   gr * mm * mm

LVCM-051-051-07VCM 0.625 inch 5.02 lb 15.9 lb 1.59 lb/A 3.07 oz 16.1 oz 2.000 inch 2.00 inch
  15.9 mm 22.3 N 70.6 N 7.9 N/A 87 gr 455 gr 50.8 mm 50.8 mm

LVCM-051-064-01VCM 1.25 inch 6.6 lb 20.9 lb 2.2 lb/A 5.3 oz 30.0 oz 2.000 inch 2.50 inch
  31.8 mm 29.4 N 92.9 N 9.6 N/A 150 gr 850 gr 50.8 mm 63.5 mm

LVCM-051-064-02VCM 0.50 inch 15.3 lb 48.5 lb 4.8 lb/A 4.9 oz 29.6 oz 2.000 inch 2.50 inch
  12.7 mm 68.2 N 215.5 N 21.6 N/A 140 gr 840 gr 50.8 mm 63.5 mm

LVCM-051-064-03VCM 0.5 inch 19.3 lb 60.8 lb * lb/A * lb   lb * inch * inch
  12.7 mm 85.4 N 270.0 N * N/A * gr * gr * mm * mm

LVCM-051-064-05VCM 2.0 inch 5.8 lb 18.4 lb * lb/A * lb   lb * inch * inch
  50.8 mm 25.8 N 81.7 N * N/A * gr * gr * mm * mm

LVCM-051-089-01VCM 2.25 inch 5.9 lb 18.6 lb 2.3 lb/A 6.9 oz 40.7 oz 2.000 inch 3.50 inch
  57.2 mm 26.2 N 82.7 N 10.1 N/A 195 gr 1155 gr 50.8 mm 88.9 mm

LVCM-051-089-02VCM 1.00 inch 14.9 lb 47.2 lb 5.7 lb/A 6.7 oz 40.6 oz 2.000 inch 3.50 inch
  25.4 mm 66.4 N 210 N 25.5 N/A 190 gr 1150 gr 50.8 mm 88.9 mm

LVCM-051-089-05VCM 2.75 inch 5.5 lb 17.5 lb * lb/A * lb   lb * inch * inch
  69.9 mm 24.6 N 77.7 N * N/A * gr   gr * mm * mm

LVCM-051-127-01VCM 3.75 inch 5.0 lb 15.8 lb * lb/A * lb   lb * inch * inch
  95.3 mm 22.2 N 70.3 N * N/A * gr   gr * mm * mm

LVCM-051-127-02VCM 1.75 inch 13.8 lb 43.7 lb * lb/A * lb   lb * inch * inch
  44.5 mm 61.5 N 194.4 N * N/A * gr   gr * mm * mm

LVCM-051-127-03VCM 1.00 inch 22.4 lb 70.7 lb * lb/A * lb   lb * inch * inch
  25.4 mm 99.5 N 314.5 N * N/A * gr   gr * mm * mm

LVCM-051-165-01VCM 5.25 inch 4.8 lb 15.3 lb 2.4 lb/A 12.0 oz 74.0 oz 2.000 inch 6.50 inch
  133.4 mm 21.5 N 68.1 N 10.6 N/A 340 gr 2100 gr 50.8 mm 165.1 mm

LVCM-051-165-02VCM 2.50 inch 13.4 lb 42.3 lb 6.6 lb/A 12 oz 340 oz 2.000 inch 2.50 inch
  63.5 mm 59.4 N 187.8 N 29.3 N/A 74 gr 2100 gr 50.8 mm 63.5 mm

LVCM-051-165-03VCM 1.00 inch 26.5 lb 83.8 lb 13.1 lb/A 11.6 oz 330 oz 2.000 inch 2.50 inch
  25.4 mm 117.7 N 372.3 N 58.2 N/A 72.7 gr 2060 gr 50.8 mm 63.5 mm

LVCM-070-038-01VCM 0.50 inch 14.5 lb 45.9 lb 4.7 lb/A 0.42 oz 2.1 lb 2.750 inch 1.50 inch
  12.7 mm 64.6 N 204.4 N 21.2 N/A 192 gr 0.95 kg 69.9 mm 28.6 mm

LVCM-070-051-01VCM 1.00 inch 14.6 lb 46.0 lb 5.5 lb/A 0.53 oz 2.74 oz 2.750 inch 2.00 inch
  25.4 mm 64.7 N 204.3 N 24.4 N/A 240 gr 1.24 kg 69.9 mm 50.8 mm

LVCM-070-064-01VCM 1.50 inch 14.4 lb 45.5 lb 2.5 lb/A 0.67 oz 3.37 lb 2.750 inch 2.50 inch
  38.2 mm 64.0 N 202.0 N 11.0 N/A 305 gr 1.53 kg 69.9 mm 63.5 mm

LVCM-070-064-02VCM 0.50 inch 28.7 lb 90.5 lb * oz/A * oz * oz * inch * inch
  12.7 mm 128.0 N 403.0 N * N/A * gr * gr * mm * mm

LVCM-070-089-01VCM 2.50 inch 14.1 lb 44.6 lb 2.6 lb/A 0.904 oz 4.67 lb 2.750 inch 3.50 inch
  63.5 mm 62.8 N 198.3 N 11.5 N/A 410 gr 2.12 kg 69.9 mm 88.9 mm

LVCM-070-089-02VCM 1.00 inch 33.9 lb 107.1 lb 6.3 lb/A 0.873 oz 4.69 lb 2.750 inch 3.50 inch
  25.4 mm 150.7 N 476.3 N 28.2 N/A 396 gr 2.13 kg 69.9 mm 88.9 mm

LVCM-095-038-01VCM 0.50 inch 23.1 lb 73.1 lb 8.5 lb/A 0.72 oz 4.07 lb 3.750 inch 1.50 inch
  12.7 mm 102.7 N 324.4 N 38.0 N/A 326 gr 1.85 kg 95.3 mm 28.6 mm

LVCM-095-051-01VCM 1.00 inch 23.4 lb 70.0 lb 10.1 lb/A 0.87 oz 5.34 lb 3.750 inch 2.0 inch
  25.4 mm 104.0 N 328.7 N 44.8 N/A 395 gr 2.42 kg 95.3 mm 50.8 mm

LVCM-095-064-01VCM 1.50 inch 24.4 lb 77.1 lb 4.8 lb/A 1.07 lb 6.61 lb 3.750 inch 2.50 inch
  38.2 mm 108.2 N 342.0 N 21.1 N/A 484 gr 3.00 kg 95.3 mm 63.5 mm

LVCM-095-064-02VCM 0.50 inch 44.9 lb 141.8 lb * lb/A * lb * lb * inch * inch
  12.7 mm 199.1 N 629.2 N * N/A * gr * gr * mm * mm

LVCM-095-089-01VCM 2 .50 inch 25.0 lb 79.0 lb 5.0 lb/A 1.39 lb 9.14 lb 3.750 inch 3.50 inch
  63.5 mm 111.2 N 351.3 N 22.2 N/A 632 gr 4.14 kg 95.3 mm 88.9 mm

LVCM-095-089-02VCM 1.00 inch 58.0 lb 183.1 lb 11.6 lb/A 1.37 lb 9.15 lb 3.750 inch 3.50 inch
  25.4 mm 257.7 N 814.5 N 51.6 N/A 621 gr 4.15 kg 95.3 mm 88.9 mm

LVCM-095-089-03VCM 0.50 inch 63.9 lb 202.0 lb * lb/A * lb * lb * inch * inch
  12.7 mm 284.1 N 898.4 N * N/A * gr * gr * mm * mm





Vacuum Compatible Hollow Core Linear Voice Coil Motors



Model #

 Stroke   Continuous Force



   Intermittent Force @ 10% Duty Cycle   Force Constant



   Coil Mass



   Body Mass



   Housing Outside Diameter   Housing Length




HVCM-016-010-003-01VAC 0.125 inch 5.0 oz 15.7 oz 3.3 oz/A 0.18 oz 0.25 oz 0.625 inch 0.375 inch
  3.2 mm 1.4 N 4.4 N 0.9 N/A 5 gr 7 gr 15.9 mm 9.5 mm
HVCM-016-013-003-01VAC 0.25 inch 5.7 oz 17.9 oz 4.5 oz/A 0.25 oz 0.42 oz 0.625 inch 0.500 inch
  6.4 mm 1.6 N 5.0 N 1.3 N/A 7 gr 12 gr 15.9 mm 12.7 mm
HVCM-016-019-003-01VAC 0.50 inch 5.3 oz 16.6 oz 5.4 oz/A 0.32 oz 0.60 oz 0.625 inch 0.750 inch
  12.7 mm 1.5 N 4.6 N 1.5 N/A 9 gr 17 gr 15.9 mm 19.1 mm
HVCM-019-016-003-02VAC 0.250 inch 7.4 oz 23.7 oz 4.9 oz/A 0.28 oz 0.91 oz 0.750 inch 0.625 inch
  6.4 mm 2.1 N 6.6 N 1.4 N/A 8 gr 26 gr 19.1 mm 15.9 mm
HVCM-019-022-003-02VAC 0.500 inch 8.4 oz 26.6 oz 6.4 oz/A 0.39 oz 1.22 oz 0.750 inch 0.875 inch
  12.7 mm 2.3 N 7.4 N 1.8 N/A 11 gr 35 gr 19.1 mm 22.2 mm
HVCM-019-032-003-02VAC 0.875 inch 7.4 oz 23.3 oz 6.5 oz/A 0.49 oz 1.7 oz 0.750 inch 1.250 inch
  22.2 mm 2.1 N 6.5 N 1.8 N/A 14 gr 48 gr 19.1 mm 31.8 mm
HVCM-019-032-003-02VAC 0.875 inch 7.4 oz 23.3 oz 6.5 oz/A 0.49 oz 1.7 oz 0.750 inch 1.250 inch
  22.2 mm 2.1 N 6.5 N 1.8 N/A 14 gr 48 gr 19.1 mm 31.8 mm
HVCM-025-038-003-02VAC 1.00 inch 1.0 lb 3.2 lb * lb/A * oz * oz * inch * inch
  25.4 mm 4.6 N 14.4 N * N/A * gr * gr * mm * mm
HVCM-025-022-003-01VAC 0.375 inch 16.9 oz 53.5 oz 11.1 oz/A 0.78 oz 2.15 oz 1.00 inch 0.875 inch
  9.5 mm 4.7 N 14.9 N 3.1 N/A 21 gr 61 gr 25.4 mm 22.2 mm
HVCM-025-029-003-01VAC 0.625 inch 18.2 oz 57.5 oz 13.5 oz/A 0.95 oz 2.68 oz 1.00 inch 1.125 inch
  15.9 mm 5.1 N 16.0 N 3.75 N/A 27 gr 76 gr 25.4 mm 28.6 mm
HVCM-025-038-003-01 0.375 inch 2.5 lb 7.8 lb 2.0 lb/A 1.20 oz 3.46 oz 1.00 inch 1.500 inch
  9.5 mm 11.0 N 34.7 N 9.0 N/A 34 gr 98 gr 25.4 mm 38.1 mm
HVCM-051-025-013-01VAC 0.25 inch 5.3 lb 16.9 lb 1.6 lb/A 3.2 oz 10.6 oz 2.0 inch 1.0 inch
  12.7 mm 23.7 N 74.8 N 6.9 N/A 92 gr 300 gr 50.8 mm 25.4 mm
HVCM-051-025-019-01VAC 0.50 inch 4.8 lb 15.15 lb 1.4 lb/A 3.0 oz 9.8 oz 2.0 inch 1.0 inch
  12.7 mm 21.3 N 67.4 N 6.2 N/A 86 gr 277 gr 50.8 mm 25.4 mm
HVCM-051-032-013-01VAC 0.75 inch 6.3 lb 20.0 lb 1.9 lb/A 3.6 oz 13.2 oz 2.0 inch 1.25 inch
  19.1 mm 28.2 N 89.9 N 8.4 N/A 103 gr 375 gr 50.8 mm 31.8 mm

HVCM-051-032-019-01VAC 0.75 inch 4.9 lb 15.7 lb 1.5 lb/A 3.4 oz 12.1 oz 2.0 inch 1.25 inch
  19.1 mm 22.0 N 69.6 N 6.5 N/A 97 gr 343 gr 50.8 mm 31.8 mm

HVCM-051-051-013-01VAC 0.75 inch 6.3 lb 19.9 oz 1.8 lb/A 4.23 oz 22.2 oz 2.0 inch 2.0 inch
  19.1 mm 28.0 N 88.6 N 8.0 N/A 120 gr 630 gr 50.8 mm 50.8 mm

HVCM-051-051-019-01 0.75 inch 5.2 lb 16.4 lb 1.56 lb/A 4.13 oz 20.1 oz 2.0 inch 2.0 inch
  19.1 mm 23.1 N 72.9 N 7.0 N/A 117 gr 570 gr 50.8 mm 50.8 mm

HVCM-051-064-013-01VAC 1.25 inch 6.6 lb 20.9 lb 2.2 lb/A 5.3 oz 27.9 oz 2.0 inch 2.50 inch
  38.1 mm 29.4 N 92.9 N 9.6 N/A 150 gr 790 gr 50.8 mm 63.5 mm

HVCM-051-064-019-01VAC 1.5 inch 4.7 lb 14.9 lb 1.6 lb/A 4.8 oz 24.7 oz 2.0 inch 2.50 inch
  38.1 mm 21.0 N 66.3 N 7.0 N/A 135 gr 700 gr 50.8 mm 63.5 mm

HVCM-051-089-019-01VAC 2.25 inch 4.2 lb 13.4 lb 1.6 lb/A 6.7 oz 33.7 oz 1.0 inch 3.50 inch
  57.2 mm 18.8 N 59.5 N 7.3 N/A 190 gr 954 gr 25.4 mm 88.9 mm

HVCM-095-038-051-01VAC 0.50 inch 15.0 lb 47.5 lb 5.6 lb/A 0.63 lb 2.80 lb 3.750 inch 1.50 inch
  12.7 mm 66.7 N 211.0 N 24.8 N/A 286 gr 1.27 kg 95.3 mm 38.1 mm

HVCM-095-051-051-01VAC 1.00 inch 16.1 lb 50.8 lb 6.9 lb/A 0.78 lb 3.61 lb 3.750 inch 2.00 inch
  25.4 mm 71.4 N 225.8 N 30.8 N/A 353 gr 1.64 kg 95.3 mm 50.8 mm

HVCM-095-064-051-01VAC 1.50 inch 15.4 lb 48.6 lb 3.0 lb/A 0.97 lb 4.43 lb 3.750 inch 2.50 inch
  38.1 mm 68.3 N 215.9 N 13.3 N/A 443 gr 2.01 kg 95.3 mm 63.5 mm

HVCM-095-089-051-01VAC 2.50 inch 16.3 lb 51.5 lb 3.26 lb/A 1.30 lb 6.12 lb 3.750 inch 3.50 inch
  63.5 mm 72.4 N 228.9 N 14.5 N/A 591 gr 2.78 kg 95.3 mm 88.9 mm






Vacuum Compatible Linear Voice Coil Motors with Internal Bearing


Model #

 Stroke   Continuous Force



   Intermittent Force @ 10% Duty Cycle   Force Constant



   Coil Mass



   Body Mass



   Housing Outside Diameter   Housing Length




GVCM-016-010-01VAC 0.125 inch 5.0 oz 15.7 oz 3.3 oz/A 0.22 oz 0.35 oz 0.625 inch 0.375 inch
  3.2 mm 1.4 N 4.4 N 0.9 N/A 6 gr 10 gr 15.9 mm 9.5 mm

GVCM-016-013-01VAC 0.25 inch 5.7 oz 17.9 oz 4.5 oz/A 0.27 oz 0.42 oz 0.625 inch 0.500 inch
  6.4 mm 1.6 N 5.0 N 1.3 N/A 8 gr 12 gr 15.9 mm 12.7 mm

GVCM-016-019-01VAC 0.50 inch 5.3 oz 16.6 oz 5.4 oz/A 0.39 oz 0.60 oz 0.625 inch 0.750 inch
  12.7 mm 1.5 N 4.6 N 1.5 N/A 11 gr 17 gr 15.9 mm 19.1 mm

GVCM-019-016-02VAC 0.250 inch 7.4 oz 23.7 oz 4.9 oz/A 0.33 oz 0.91 oz 0.750 inch 0.625 inch
  6.4 mm 2.1 N 6.6 N 1.4 N/A 9 gr 26 gr 19.1 mm 15.9 mm

GVCM-019-022-02VAC 0.500 inch 8.4 oz 26.6 oz 6.4 oz/A 0.41 oz 1.22 oz 0.750 inch 0.875 inch
  12.7 mm 2.3 N 7.4 N 1.8 N/A 12 gr 35 gr 19.1 mm 22.2 mm

GVCM-022-013-01VAC 0.25 inch 14.5 oz 45.7 oz * oz/A * oz * oz * inch * inch
  6.4 mm 4.0 N 12.7 N * N/A * gr * gr 19.1 mm * mm

GVCM-019-032-02VAC 0.875 inch 7.4 oz 23.3 oz 6.5 oz/A 0.56 oz 1.7 oz 0.750 inch 1.250 inch
  22.2 mm 2.1 N 6.5 N 1.8 N/A 16 gr 48 gr 19.1 mm 31.8 mm

GVCM-025-022-01VAC 0.375 inch 16.9 oz 53.5 oz 11.1 oz/A 0.7 oz 2.2 oz 1.000 inch 0.875 inch
  9.5 mm 4.7 N 14.9 N 3.1 N/A 20 gr 62 gr 25.4 mm 22.2 mm

GVCM-025-029-01VAC 0.625 inch 18.2 oz 57.5 oz 13.5 oz/A 0.95 oz 2.75 oz 1.000 inch 1.125 inch
  15.9 mm 5.1 N 16.0 N 3.75 N/A 27 gr 78 gr 25.4 mm 28.6 mm

GVCM-025-038-01VAC 0.375 inch 2.5 lb 7.8 lb 2.0 lb/A 1.16 oz 3.6 oz 1.000 inch 1.500 inch
  9.5 mm 11.0 N 34.7 N 9.0 N/A 33 gr 102 gr 25.4 mm 38.1 mm

GVCM-025-038-02VAC 1.000 inch 1.0 lb 3.2 lb 0.88 lb/A 1.22 oz 3.6 oz 1.000 inch 1.500 inch
  25.4 mm 4.6 N 14.4 N 3.9 N/A 35 gr 102 gr 25.4 mm 38.1 mm

GVCM-032-025-02VAC 0.500 inch 2.1 lb 6.6 lb * lb/A * lb * lb * inch * inch
  12.7 mm 9.3 N 29.3 N * N/A * gr * gr * mm * mm

GVCM-032-038-02VAC 1.00 inch 1.9 lb 5.9 lb * lb/A * lb * lb * inch * inch
  25.4 mm 8.3 N 26.1 N * N/A * gr * gr * mm * mm

GVCM-032-076-02VAC 2.50 inch 1.8 lb 5.3 lb * lb/A * lb * lb * inch * inch
  63.5 mm 8.0 N 25.3 N * N/A * gr * gr * mm * mm

GVCM-051-025-01VAC 0.50 inch 5.3 lb 16.7 lb 1.5 lb/A 4.7 oz 11.3 oz 2.000 inch 1.00 inch
  23.5 mm 23.54 N 74.4 N 6.9 N/A 132 gr 320 gr 50.8 mm 25.4 mm

GVCM-051-032-01VAC 0.75 inch 5.7 lb 18.1 lb 1.7 lb/A 5.1 oz 13.9 oz 2.000 inch 1.25 inch
  19.1 mm 25.5 N 80.4 N 7.6 N/A 144 gr 393 gr 50.8 mm 31.7 mm

GVCM-051-051-01VAC 0.75 inch 6.3 lb 19.9 lb 1.8 lb/A 5.7 oz 23.6 oz 2.000 inch 2.00 inch
  19.1 mm 28.0 N 88.6 N 8.0 N/A 162 gr 668 gr 50.8 mm 50.8 mm

GVCM-051-051-05VAC 1.00 inch 6.6 lb 20.8 lb * lb/A * lb * lb * inch * inch
  25.4 mm 29.3 N 92.6 N * N/A * gr * gr * mm * mm

GVCM-051-064-01VAC 1.25 inch 6.6 lb 20.9 lb 2.2 lb/A 6.8 oz 28.9 oz 2.000 inch 2.50 inch
  31.8 mm 29.4 N 92.9 N 9.6 N/A 192 gr 818 gr 50.8 mm 63.5 mm

GVCM-051-089-01VAC 2.25 inch 5.9 lb 18.6 lb * lb/A * lb * lb * inch * inch
  57.2 mm 26.2 N 82.7 N * N/A * gr * gr * mm * mm

GVCM-051-089-02VAC 1.00 inch 14.9 lb 47.2 lb * lb/A * lb * lb * inch * inch
  25.4 mm 66.4 N 210.0 N * N/A * gr * gr * mm * mm

GVCM-051-089-05VAC 2.75 inch 5.5 lb 17.5 lb * lb/A * lb * lb * inch * inch
  69.9 mm 24.6 N 77.7 N * N/A * gr * gr * mm * mm

GVCM-051-127-01VAC 3.75 inch 5.0 lb 15.8 lb * lb/A * lb * lb * inch * inch
  95.3 mm 22.2 N 70.3 N * N/A * gr * gr * mm * mm

GVCM-070-038-01VAC 0.50 inch 14.5 lb 45.9 lb 4.7 lb/A 0.52 lb 2.10 lb 2.750 inch 1.50 inch
  12.7 mm 64.6 N 204.4 N 21.2 N/A 234 gr 0.93 kg 69.9 mm 28.6 mm

GVCM-070-051-01VAC 1.00 inch 14.6 lb 46.0 lb 5.5 lb/A 0.62 lb 2.70 lb 2.750 inch 2.00 inch
  25.4 mm 64.7 N 204.3 N 24.4 N/A 282 gr 1.22 kg 69.9 mm 50.8 mm

GVCM-070-064-01VVAC 1.50 inch 14.4 lb 45.5 lb 2.5 lb/A 0.77 lb 3.30 lb 2.750 inch 2.50 inch
38.2 mm 64.0 N 202.0 N 11.0 N/A 350 gr 1.50 kg 69.9 mm 63.5 mm

GVCM-070-089-01VAC 2.50 inch 14.1 lb 44.6 lb 2.6 lb/A 1.08 lb 4.6 lb 2.750 inch 3.50 inch
  63.5 mm 62.8 N 198.3 N 11.5 N/A 488 gr 2.1 kg 69.9 mm 88.9 mm

GVCM-095-038-01VAC 0.50 inch 23.1 lb 73.1 lb 8.5 lb/A 0.81 lb 4.03 lb 3.750 inch 1.50 inch
  12.7 mm 102.7 N 324.4 N 38.0 N/A 368 gr 1.83 kg 95.3 mm 28.6 mm

GVCM-095-051-01VAC 1.00 inch 23.4 lb 70.0 lb 10.1 lb/A 0.96 lb 5.29 lb 3.750 inch 2.0 inch
  25.4 mm 104.0 N 328.7 N 44.8 N/A 437 gr 2.40 kg 95.3 mm 50.8 mm

GVCM-095-064-01VAC 1.50 inch 23.1 lb 73.1 lb 4.8 lb/A 1.17 lb 6.55 lb 3.750 inch 2.50 inch
  38.2 mm 102.7 N 102.7 N 21.1 N/A 529 gr 2.97 kg 95.3 mm 63.5 mm

GVCM-095-064-02S04VAC 0.50 inch 44.9 lb 141.8 lb * lb/A * lb * lb * inch * inch
  12.7 mm 199.1 N 629.2 N * N/A * gr * gr * mm * mm

GVCM-095-064-02S06VAC 0.50 inch 44.9 lb 141.8 lb * lb/A * lb * lb * inch * inch
  12.7 mm 199.1 N 629.2 N * N/A * gr * gr * mm * mm

GVCM-095-089-01VAC 2.50 inch 25.0 lb 79.0 lb 5.0 lb/A 1.57 lb 9.1 lb 3.750 inch 3.50 inch
  63.5 mm 111.2 N 351.3 N 22.2 N/A 710 gr 4.1 kg 95.3 mm 88.9 mm

GVCM-095-089-02VAC 1.00 inch 58.0 lb 183.1 lb 11.6 lb/A 1.57 lb 9.1 lb 3.750 inch 3.50 inch
  25.4 mm 257.7 N 814.5 N 51.6 N/A 710 gr 4.1 kg 95.3 mm 88.9 mm

GVCM-095-089-03VAC 0.50 inch 63.9 lb 202.0 lb * lb/A * lb * lb * inch * inch
  12.7 mm 284.1 N 898.4 N * N/A * gr * gr * mm * mm
