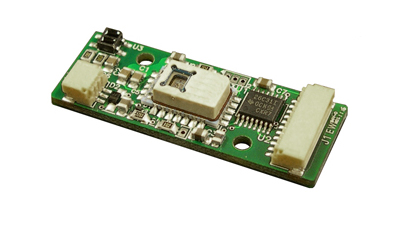

One-micron Optical Encoder Module, OEM-001U-01



Previous Buy Online View Cart Next



One-micron Optical Encoder Module and Linear Scale

  • Small Size, 1.145" (29.1 mm) by 0.551" (14.0 mm)
  • Low Profile, 0.190" (4.8 mm)
  • Low Power
  • High Resolution, 0.00004", 1 micron
  • TTL Reference Point Output
  • TTL Differential Quadrature Outputs
  • Single +5 VDC Supply
    		•
    OEM-001U-01
    Datasheet in PDFDatasheet in PDF

    Enlargezoom

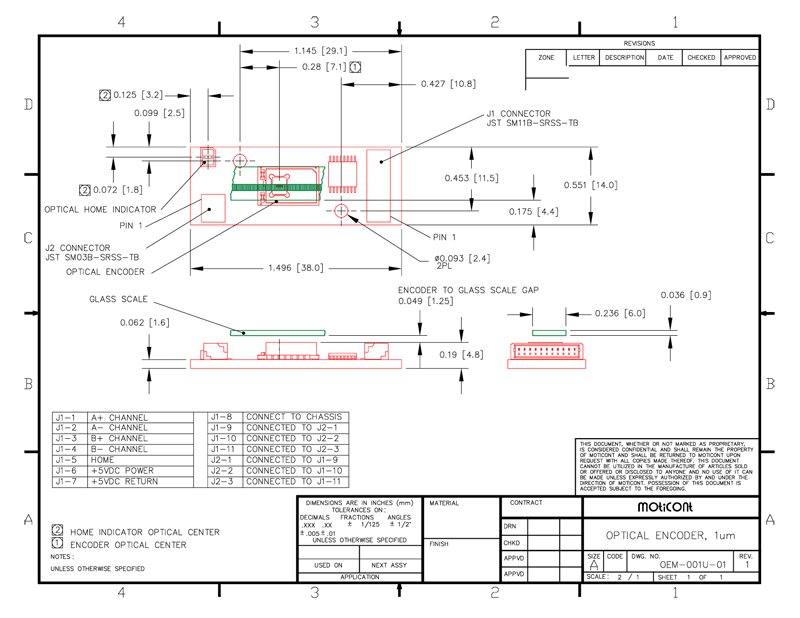

    Drawing quick view

    J1 Pin Assignment

    Pin

    		 Description

    1

    		 A+ Channel of Quadrature Encoder

    2

    		 A- Channel of Quadrature Encoder

    3

    		 B+ Channel of Quadrature Encoder

    4

    		 B- Channel of Quadrature Encoder

    5

    		 Reference Signal, Active High

    6

    		+5 VDC Power

    7

    		 Return for +5 VDC Power

    8

    		 Connect to chassis if the following pins carry motor current

    9

    		 Connected to J2-1

    10

    		 Connected to J2-2

    11

    		 Connected to J2-2

    J2 Pin Assignment

    Pin

    		 Description

    1

    		 Connected to J1-9

    2

    		 Connected to J1-10
    3 Connected to J1-11
