Linear Voice Coil Motor Actuator LVCM-070-089-01, Continuous Force: 14.1 lb (62.8 N), Stroke: 2.50 in (63.5 mm)
 |
 |
 |
 |
| Housing Outside Diameter, 2.750 inch, 69.9 mm | ||||||||
|
|
||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-070-089-01 | 2.50 | inch | 14.1 | lb | 44.6 | lb | 3.50 | inch |
Datasheet in PDF  |
63.5 | mm | 62.8 | N | 198.3 | N | 88.9 | mm |

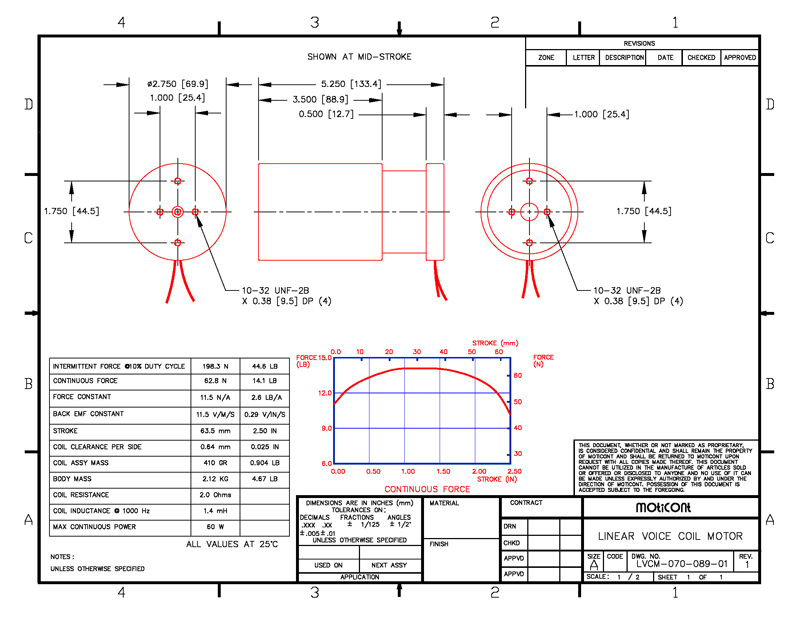

Drawing quick view
 |
Download 3D STEP | |||||||
