Linear Voice Coil Motor Actuator LVCM-051-127-02, Continuous Force: 13.8 lb (61.5 N), Stroke: 1.75 in (44.5 mm)
 |
 |
 |
 |
| Housing Outside Diameter, 2.000 inch, 50.8 mm | ||||||||||
|
|
||||||||||
|
The miniature LVCM-019-022-02 Linear Voice Coil
Motor also called a Linear DC Motor, has a 1/2 inch
(12.7 mm) stroke and a high force-to-size ratio! It
produces 8.1 oz. (2.3 N) of continuous force and
25.7 oz. (7.1 N) of peak force in a compact 0.750
in. (19.1 mm) diameter x 0.875 in. (22.2 mm)
housing. This miniature high speed / high acceleration servo motor may be used in closed loop servo loop. This zero cogging, clean, quiet, efficient, low inertia, high acceleration, miniature voice coil motor is ideal for applications such as: Pick-and-place, testing, laser steering, laser speckle reduction, mirror positioning, scanning, oscillation, switching, clamping, and haptic feedback in hand held medical, dental, or industrial applications. This miniature LVCM-019-016-02 linear voice coil motor can be easily added to new or existing applications using the precision drilled and tapped 8-32 UNC-2B mounting holes in the coil and housing ends of the motor. |
||||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||||
| LVCM-051-127-02 | 1.75 | inch | 13.8 | lb | 43.7 | lb | 5.00 | inch | ||
Datasheet in PDF  |
44.5 | mm | 61.5 | N | 194.4 | N | 127.0 | mm | ||

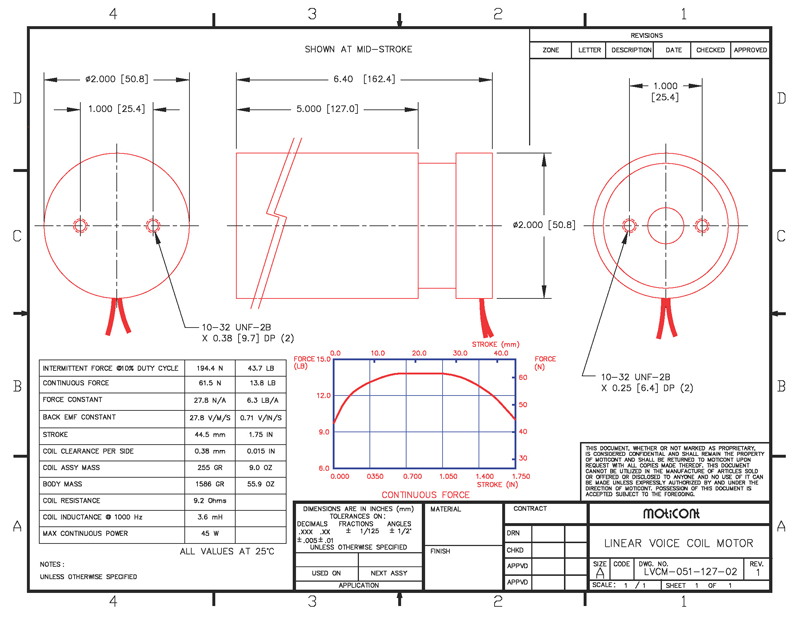

Drawing quick view
 |
Download 3D STEP | |||||||||
