Linear Voice Coil Motor Actuator LVCM-051-064-02, Continuous Force: 15.3 lb (68.2N), Stroke: 0.50 in (12.7 mm)







Linear Voice Coil Motor Actuator LVCM-051-064-02, Continuous Force: 15.3 lb (68.2N), Stroke: 0.50 in (12.7 mm)




Previous Buy Online View Cart Next
Housing Outside Diameter, 2.000 inch, 50.8 mm

Linear Voice Coil Motor

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
LVCM-051-064-02 0.50 inch 15.3 lb 48.5 lb 2.50 inch
Datasheet in PDF 12.7 mm 68.2 N 215.5 N 63.5 mm

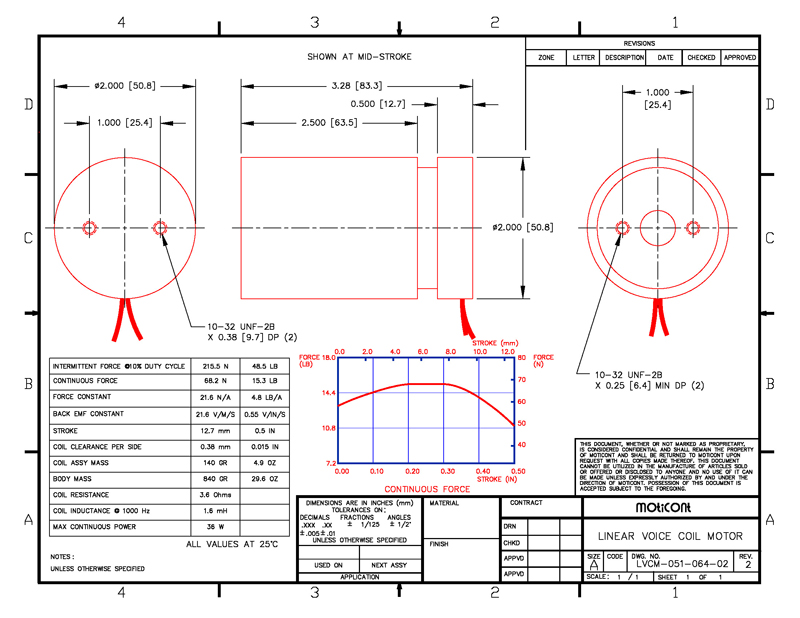

Drawing quick view Mechanical Drawing Download 3D STEP
