Linear Voice Coil Motor Actuator LVCM-051-051-07, Continuous Force: 5.02 lb (22.3 N), Stroke: 0.625 in (15.9 mm)
 |
 |
 |
 |
| Housing Outside Diameter, 2.000 inch, 50.8 mm - Large Clearance Gap | ||||||||
|
|
||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-051-051-07 | 0.625 | inch | 5.02 | lb | 15.9 | lb | 2.00 | inch |
Datasheet in PDF  |
15.9 | mm | 22.3 | N | 70.6 | N | 50.8 | mm |

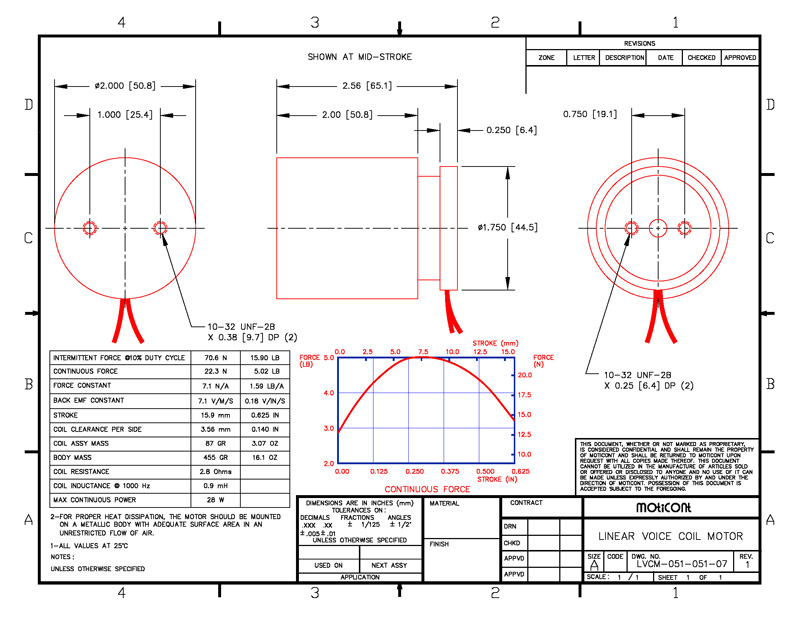

Drawing quick view
 |
Download 3D STEP | |||||||
