Linear Voice Coil Motor Actuator LVCM-051-051-05, Continuous Force: 6.6 lb (29.3 N), Stroke: 1.00 in (25.4 mm)
 |
 |
 |
 |
| Housing Outside Diameter, 2.000 inch, 50.8 mm | ||||||||
|
|
||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-051-051-05 | 1.00 | inch | 6.6 | lb | 20.8 | lb | 2.00 | inch |
Datasheet in PDF  |
25.4 | mm | 29.3 | N | 92.6 | N | 50.8 | mm |

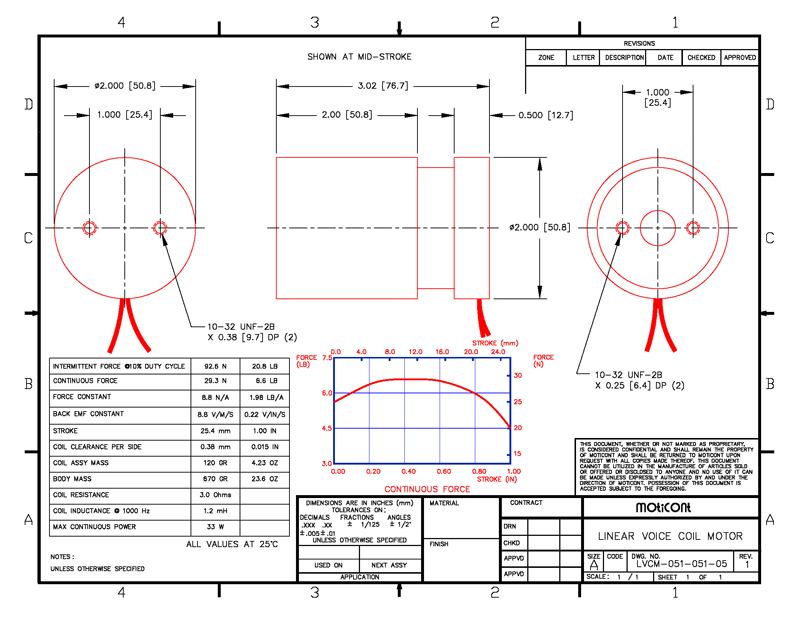

Drawing quick view
 |
Download 3D STEP | |||||||
