Linear Voice Coil Motor Actuator LVCM-051-025-01, Continuous Force: 5.3 lb (22.8 N), Stroke: 0.50 in (12.7 mm)
 |
 |
 |
 |
| Housing Outside Diameter, 1.750 inch, 44.4 mm | ||||||||
|
|
||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-051-025-01 | 0.50 | inch | 5.3 | lb | 16.9 | lb | 1.00 | inch |
Datasheet in PDF  |
12.7 | mm | 22.7 | N | 74.8 | N | 25.4 | mm |

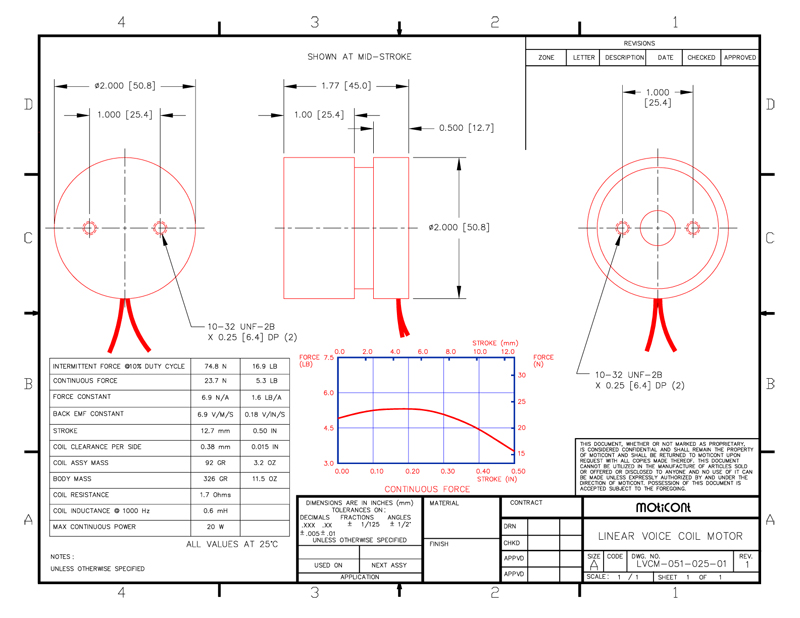

Drawing quick view
 |
Download 3D STEP | |||||||
