Linear Voice Coil Motor Actuator LVCM-013-032-02, Continuous Force: 2.5 Oz (0.70 N), Stroke: 1.00 in (25.4 mm)
 |
 |
 |
| Housing Outside Diameter, 0.500 inch, 12.7 mm | ||||||||
 The LVCM-013-032-02M (Metric) and the LVCM-013-032-02 (Imperial) are brushless high speed linear servo motors have a 25.4 mm 1.000 in. long stroke, and a high-force-to-size ratio of 0.70 N (2.5 oz.) and a peak force of 2.20 N (7.9 oz.) at 10% duty cycle. Known also as moving coil motors or linear actuators they are ideal for: Dispensing, work holding and clamping, assembly, testing, wafer handling, animation, dynamic vibration absorption, scanners and laser beam steering and filtering. Featuring low inertia and high acceleration/deceleration they are: Clean, quiet, efficient, and have high accuracy and high repeatability when operated in a closed loop as a DC Servo Motor. These miniature motors are just 49.2 mm (1.94 in.) long at mid-stroke. The LVCM-013-032-02M (Metric) Linear Voice Coil Motor has a M3X0.5 threaded mounting hole in the center of the housing and the coil end, and the LVCM-013-032-02 has 4-40 UNC-2B threaded holes for easy integration of these linear servo motors into a new or existing application. |
||||||||
| Imerial Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-013-032-02 | 1.00 | inch | 2.5 | oz | 7.9 | oz | 1.250 | inch |
Datasheet in PDF  |
25.4 | mm | 0.70 | N | 2.20 | N | 31.8 | mm |

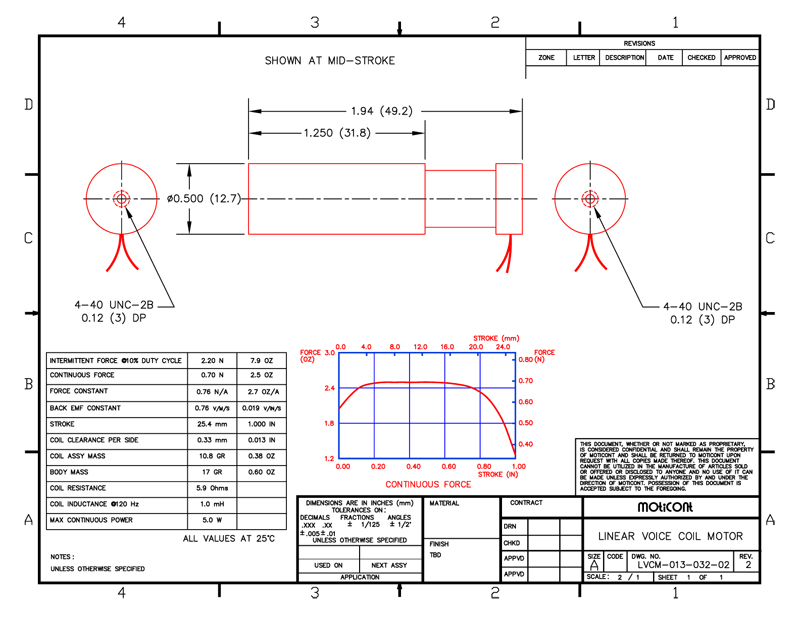

Drawing quick view
 |
Download 3D STEP |
|||||||
| ||||||||
| Metric Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-013-032-02M | 1.00 | inch | 2.5 | oz | 7.9 | oz | 1.250 | inch |
|
Datasheet in PDF |
25.4 | mm | 0.70 | N | 2.20 | N | 31.8 | mm |

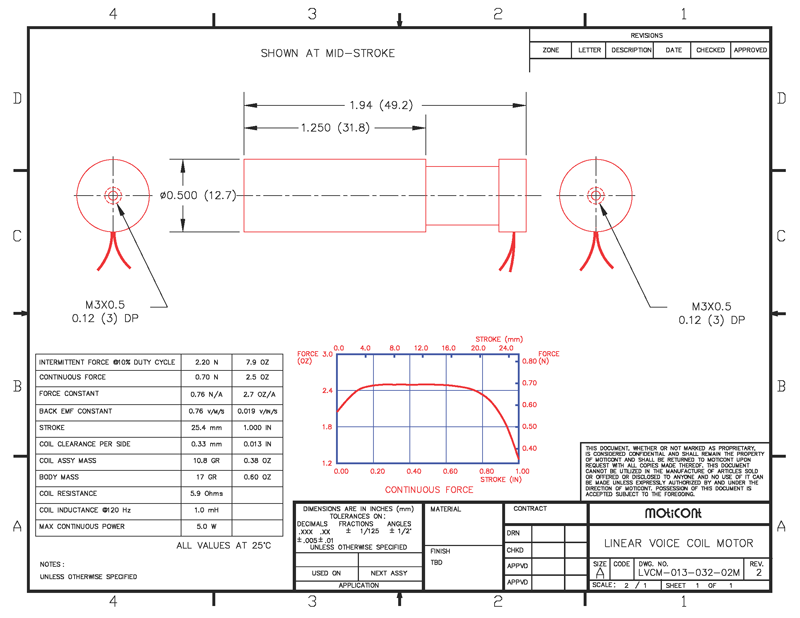

Drawing quick view
 |
Download 3D STEP |
|||||||
|
| ||||||||
