Linear Voice Coil Motor Actuator LVCM-013-013-02, Continuous Force: 3.1 Oz (0.86 N), Stroke: 0.25 in (6.4 mm)

The LVCM-013-013-02M (Metric version) and the LVCM-013-013-02 (Imperial version) Linear Servo Motors, are miniature, brushless high speed linear servo motors with a 6.4 mm (0.25 in.) long stroke.

They have a high-force-to-size ratio of 0.86 N (3.1 oz) and a peak force of 2.73 N (9.8oz) at a 10% duty cycle. Operated in a closed loop as a DC Servo Motor, these miniature linear servo motors exhibit high accuracy and high repeatability. Featuring high acceleration/deceleration and low inertia, they are clean, quiet, reliable, and efficient.

These LVCM-013-013-02M and the LVCM-013-013-02, Linear Voice Coil Servo Motors are also known as moving coil motors or linear actuators. Only 20.4 mm (0.80 in.) long at mid-stroke they are easily integrated into new and existing applications and ideal replacements for pneumatic actuators.

Their high force-to-size make them the practical choice for: Scanners, laser beam steering and filtering, haptic feedback, dynamic vibration absorption, dispensing, work holding and clamping, assembly, testing, and wafer handling.

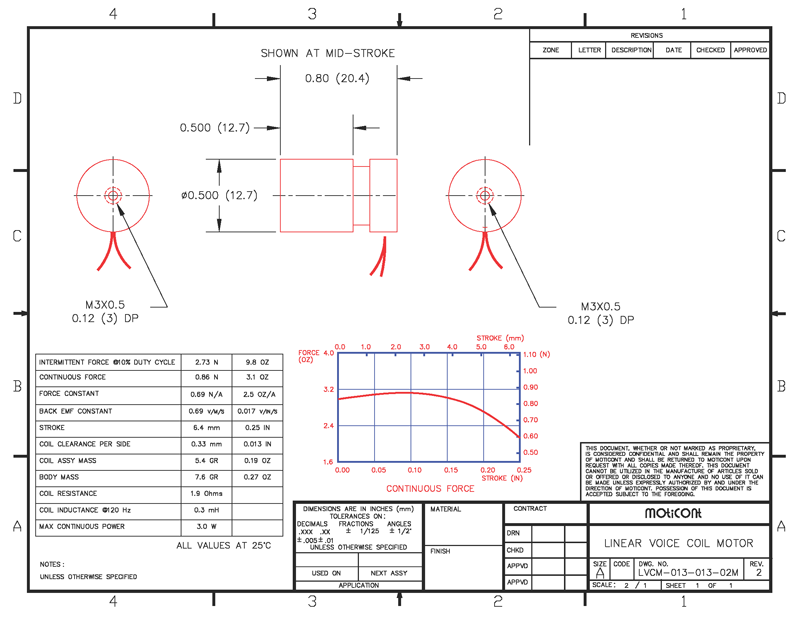

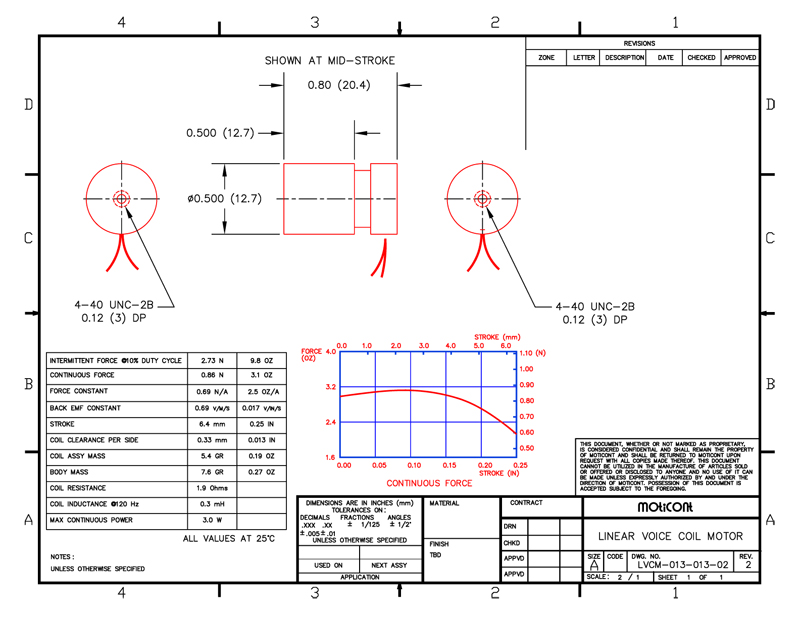

The LVCM-013-013-02M has M3X0.5 threaded holes in the center of the housing and the coil end, and the LVCM-013-013-02 has 4-40 UNC-2B threaded mounting holes for easy integration into new or existing applications. These motors are made in the USA.
