Linear Motor Actuator LMA 051-051-01
Continuous Force: 6.0 lb (26.7 N), Range of Motion: 0.7" (17.8 mm)




Previous Buy Online View Cart Next


Linear Motor Actuator LMA 051-051-01
  • Range of Motion: 0.7” (17.8 mm) Max
  • Continuous Force: 6.0 lb (26.7 N)
  • Intermittent Force: 19 lbs (84.3 N) at 10% duty cycle
  • Optional Return Spring
  • Quadrature Optical Encoder with Optional Differential Outputs
  • Built-in Home Switch
LMA-051-051-01-26

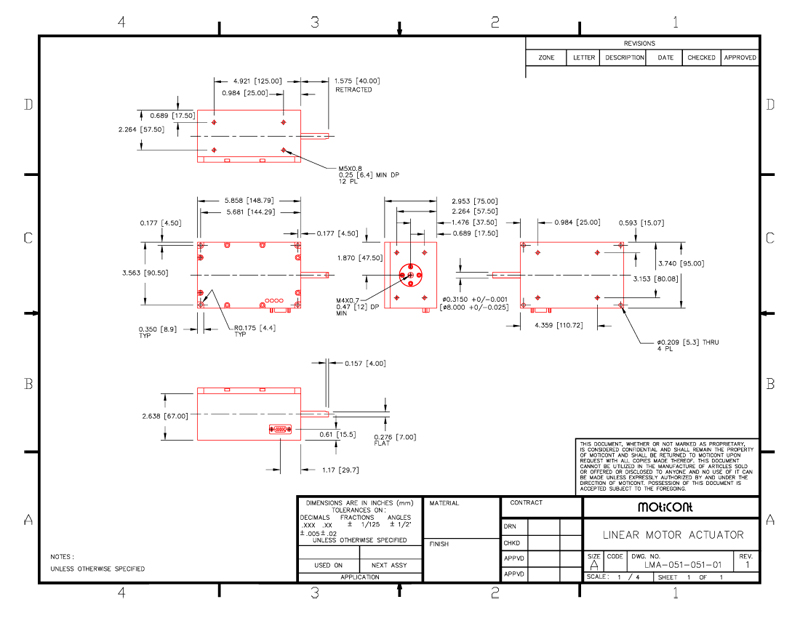

Datasheet in PDF Datasheet in PDF Drawing quick view Mechanical Drawing


LMA Pin Assignment and Description

Signal Name

 DB9 Male

+5 VDC Input

 1

Home - Active High - Normally Low

 2

Channel A of encoder

 3

Channel B of encoder

 4

Ground, +5 VDC Return

 5

Inner Limit - Active High - Normally Low

 6

Outer Limit - Active High - Normally Low

 7

Red Lead of the Motor

 8

Black Lead of the Motor

 9
