Hollow Core Voice Coil Driven Stages

The high performance compact positioning hollow core voice coil driven linear stages are used in positioning applications where high speed, high acceleration or high accuracy is required.

The hollow core motorized linear stages are fully self-contained. Each stage utilizes a voice coil motor,  a linear carriage system,  an optical quadrature encoder feedback device and a home switch. The standard positioning resolutions of 1 micron through 29.95 microns are available for immediate delivery.  Other resolutions are available upon request.

Range of motion is from 0.50” (12.7 mm) through 5.20” (132.1 mm). Continuous (stall) forces range from 1 lb (4.5 N) through 23.0 lb (102 N). The intermittent forces at 10% duty cycle are from 3.1 lb (13.8 N) through 73 lb (323 N).

The stages may be stacked in XY, XZ and XYZ configurations.

These stages are available in variety of resolutions as stated. All stages also available without encoders.

Videos of Motorized Linear Stages:

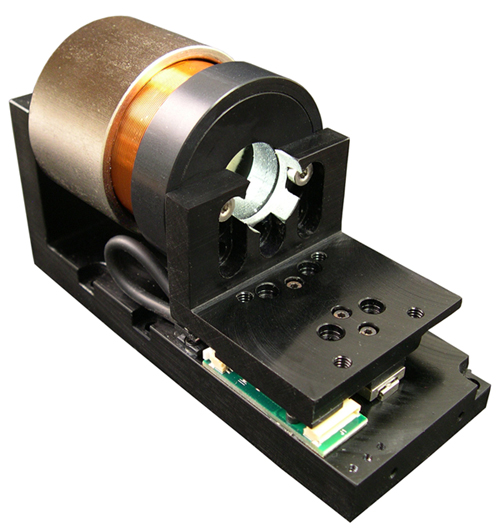

			Hollow Core Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch Range of Motion: 0.97” (24.6 mm)  Efficient Force within First 0.750" (19.1 mm) of Stroke Positioning Resolution: 1 through 29.95 microns Continuous Force: 4.9 lb (22.0 N) through 6.3 lb (28.2 N) Intermittent Force:  15.7 lb (69.6 N) through 20.0 lb (89.9 N) at 10% duty cycle Optional Return Spring Cross Roller or Linear Ball Bearing Built-in Home Switch Quadrature Optical Encoder with Differential Outputs Also Available Without Encoder
HCDS-051-032-01 Series	Enlarge

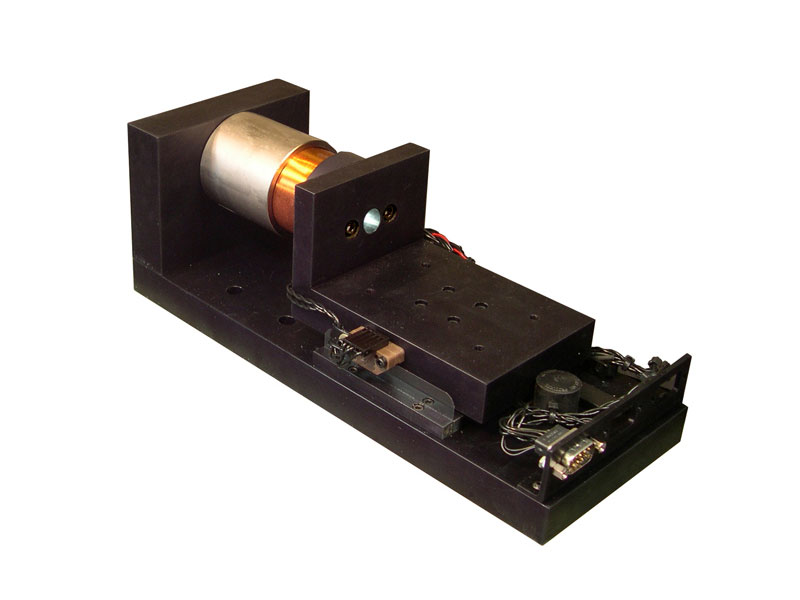

			Hollow Core Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch Range of Motion: 0.70” (17.8 mm) Positioning Resolution: 1 through 29.95 microns Continuous Force: 5.2 lb (23.1 N) through 6.3 lb (28.0 N) Intermittent Force: 16.4 lbs (72.9 N) through 19.9 lbs (88.6 N) at 10% duty cycle Optional Return Spring Linear Ball Bearing Built-in Home Switch Quadrature Optical Encoder with Differential Outputs Also Available Without Encoder
HCDS-051-051-01 Series	Enlarge

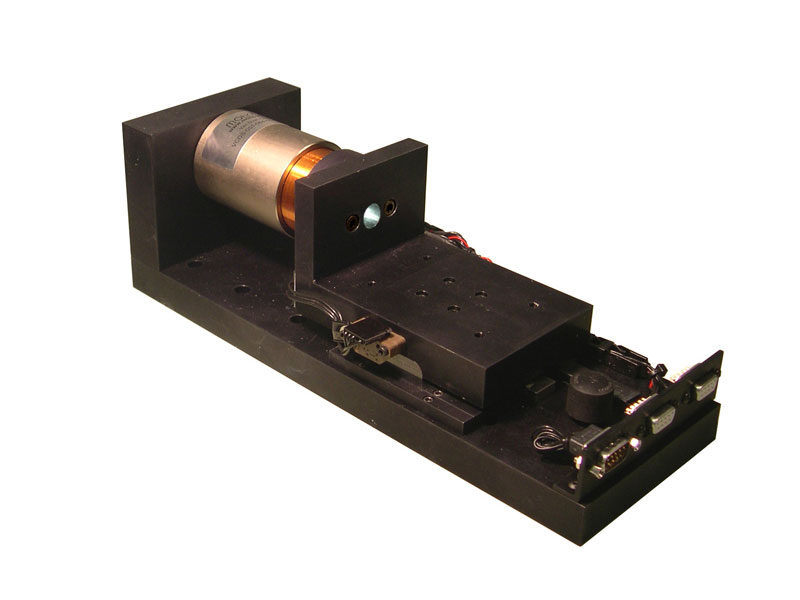

			Hollow Core Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch Range of Motion: 1.20” (30.5 mm) Positioning Resolution: 1 through 29.95 microns Continuous Force: 4.7 lb (21.0 N) through 6.4 lb (28.4 N) Intermittent Force: 14.9 lbs (66.3 N) through 20.2 lbs (89.9 N) at 10% duty cycle Optional Return Spring Linear Ball Bearing Built-in Home Switch Quadrature Optical Encoder with Differential Outputs Also Available Without Encoder
HCDS-051-064-01 Series	Enlarge

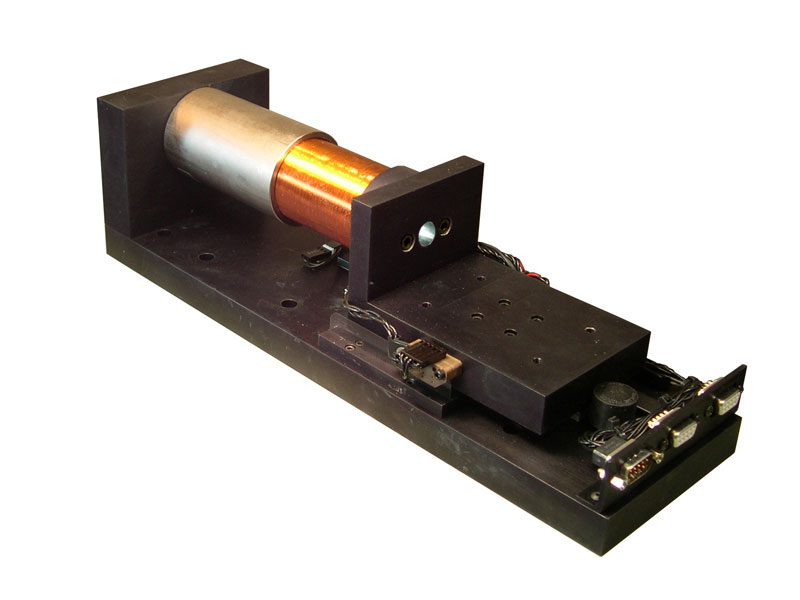

			Hollow Core Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch Range of Motion: 2.20” (55.9 mm) Positioning Resolution: 1 through 29.95 microns Continuous Force: 4.2 lb (18.8 N) Intermittent Force: 13.4 lbs (59.5 N) at 10% duty cycle Optional Return Spring Linear Ball Bearing Built-in Home Switch Quadrature Optical Encoder with Differential Outputs Also Available Without Encoder
HCDS-051-089-01 Series	Enlarge
