Motorized Linear Stages, VCDS-051-165-01 Series

Videos of Motorized Linear Stages:

Video of Low Cost MULTI-AXIS Motorized Linear Stages

Video of Two-axis Voice Coil Motor Stage by MOTICONT

Video of Single-axis Positioning Linear Motor Stage by MOTICONT

Motorized Linear Stages Catalog in PDF

Comparison table

			Voice Coil Driven Stage - VCDS-051-165-01-01 Range of Motion: 5.20” (132.1 mm) Positioning Resolution: 1 microns Continuous Force: 4.8 lb (21.5 N) Intermittent Force: 15.3 lbs (68.1 N) at 10% duty cycle Optional Return Spring Linear Ball Bearing Quadrature Optical Encoder with Differential Outputs Built-in Home Switch

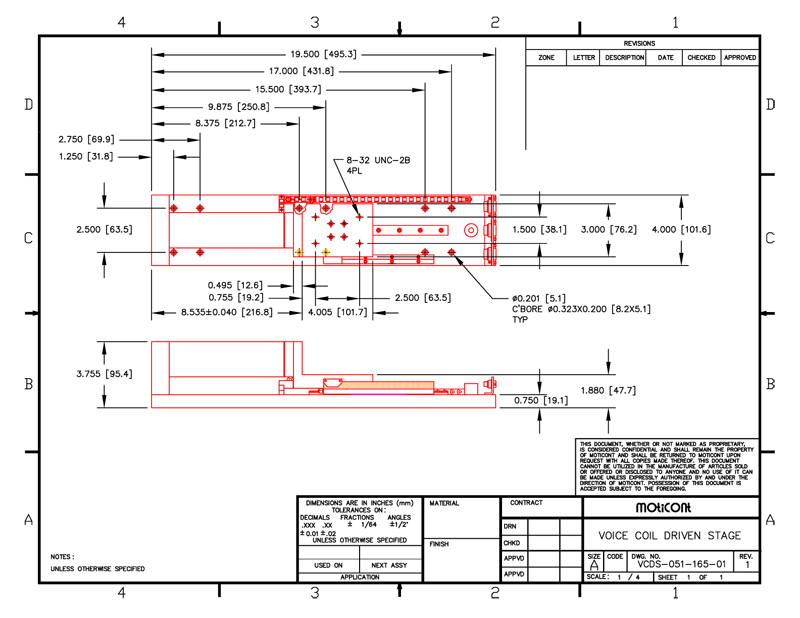

VCDS-051-165-01-01 Drawing quick view	Datasheet in PDF

Comparison table

			Voice Coil Driven Stage - VCDS-051-165-01-13 Range of Motion: 5.20” (132.1 mm) Positioning Resolution: 12.7 microns Continuous Force: 4.8 lb (21.5 N) Intermittent Force: 15.3 lbs (68.1 N) at 10% duty cycle Optional Return Spring Linear Ball Bearing Quadrature Optical Encoder with Differential Outputs Built-in Home SwitchQuadrature Optical Encoder with Differential Outputs Built-in Home Switch
VCDS-051-165-01-13 Drawing quick view	Datasheet in PDF

Comparison table

			Voice Coil Driven Stage - VCDS-051-165-01-26 Range of Motion: 5.20” (132.1 mm) Positioning Resolution: 25.4 microns Continuous Force: 4.8 lb (21.5 N) Intermittent Force: 15.3 lbs (68.1 N) at 10% duty cycle Optional Return Spring Linear Ball Bearing Quadrature Optical Encoder with Differential Outputs Built-in Home Switch
VCDS-051-165-01-26 Drawing quick view	Datasheet in PDF

Comparison table

			Voice Coil Driven Stage - VCDS-051-165-01-30 Range of Motion: 5.20” (132.1 mm) Positioning Resolution: 29.95 microns Continuous Force: 4.8 lb (21.5 N) Intermittent Force: 15.3 lbs (68.1 N) at 10% duty cycle Optional Return Spring Linear Ball Bearing Quadrature Optical Encoder with Differential Outputs Built-in Home Switch
VCDS-051-165-01-30 Drawing quick view	Datasheet in PDF
