Motorized Linear Stages, VCDS-051-064-01 Series




Videos of Motorized Linear Stages:

Low Cost MULTI-AXIS Motorized Linear Stages Two-axis Voice Coil Motor Stage by MOTICONT SINGLE-AXIS Positioning Linear Motor Stage by MOTICONT

Motorized Linear Stages Catalog in PDF



Comparison table
Voice Coil Driven Stage VCDS-051-064-01-01


Voice Coil Driven Stage - VCDS-051-064-01-01

  • Range of Motion: 1.20” (30.5 mm)
  • Positioning Resolution: 1 micron
  • Continuous Force: 6.4 lb (28.4 N)
  • Intermittent Force: 20.2 lbs (89.9 N) at 10% duty cycle
  • Optional Return Spring
  • Linear Ball Bearing
  • Built-in Home Switch
  • Quadrature Optical Encoder with Differential Outputs
    		•
    VCDS-051-064-01-01

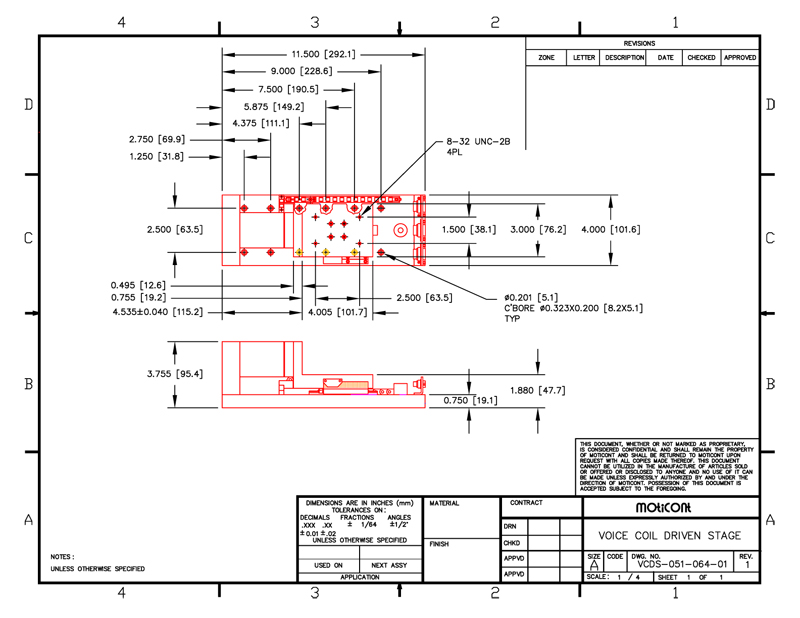

    Drawing quick view Mechanical Drawing    		 Datasheet in PDF Datasheet in PDF

    Comparison table
    Voice Coil Driven Stage VCDS-051-064-01-13


    Voice Coil Driven Stage - VCDS-051-064-01-13

  • Range of Motion: 1.20” (30.5 mm)
  • Positioning Resolution: 12.7 microns
  • Continuous Force: 6.4 lb (28.4 N)
  • Intermittent Force: 20.2 lbs (89.9 N) at 10% duty cycle
  • Optional Return Spring
  • Linear Ball Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch
    		•
    VCDS-051-064-01-13
    Drawing quick view Mechanical Drawing    		 Datasheet in PDF Datasheet in PDF

    Comparison table
    Voice Coil Driven Stage VCDS-051-064-01-26

    Voice Coil Driven Stage - VCDS-051-064-01-26

  • Range of Motion: 1.20” (30.5 mm)
  • Positioning Resolution: 25.4 microns
  • Continuous Force: 6.4 lb (28.4 N)
  • Intermittent Force: 20.2 lbs (89.9 N) at 10% duty cycle
  • Optional Return Spring
  • Linear Ball Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch
    		•
    VCDS-051-064-01-26
    Drawing quick view Mechanical Drawing    		 Datasheet in PDF Datasheet in PDF

    Comparison table
    Voice Coil Driven Stage VCDS-051-064-01-30


    Voice Coil Driven Stage - VCDS-051-064-01-30

  • Range of Motion: 1.20” (30.5 mm)
  • Positioning Resolution: 29.95 microns
  • Continuous Force: 6.4 lb (28.4 N)
  • Intermittent Force: 20.2 lbs (89.9 N) at 10% duty cycle
  • Optional Return Spring
  • Linear Ball Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch
    		•
    VCDS-051-064-01-30
    Drawing quick view Mechanical Drawing    		 Datasheet in PDF Datasheet in PDF
