Linear Voice Coil Stage, VCDS-051-051-01-30
Continuous Force: 6.0 lb (26.7
N), Range of Motion: 0.70” (17.8 mm), Resolution: 30 microns
 |
 |
 |
 |
 |
Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch
|
||
|
VCDS-051-051-01-30 |
|||
Datasheet in PDF

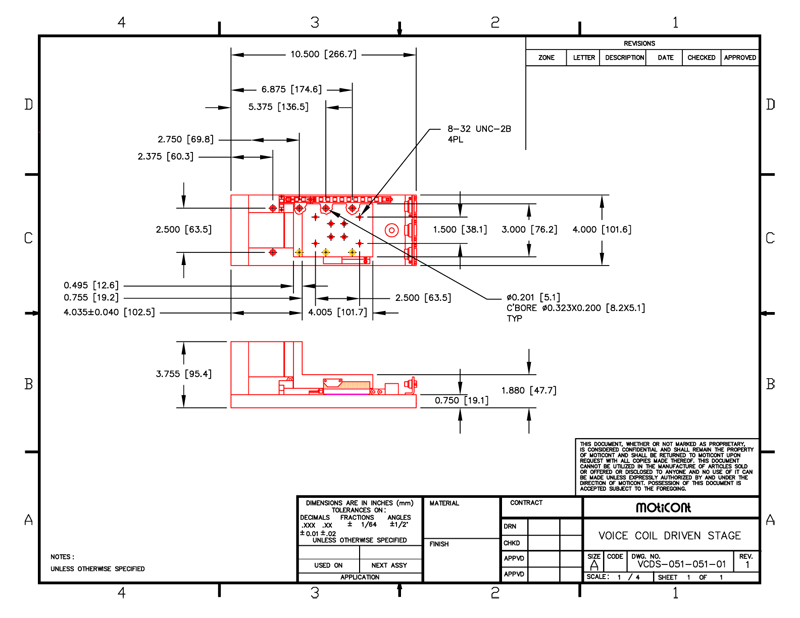

Drawing quick view  |
|||
| STAGE SPECIFICATIONS | ||||
|
Intermittent Force @ 10% Duty Cycle |
88.6 | N |
19.9 |
lb |
| Continuous Force | 28.0 | N |
6.3 |
lb |
|
Force Constant |
8.0 | N/A |
1.8 |
lb/A |
| BACK EMF Constant | 8.0 | V/M/S |
0.20 |
V/in/S |
|
Stroke |
19.1 | mm |
0.75 |
in |
| Moving Mass | 735 | gr |
25.9 |
oz |
|
Total Mass |
3.5 | kg |
7.7 |
lb |
Coil Resistance |
2.7 | Ohm | ||
Coil Inductance at 1000 Hz |
1.2 | mH | ||
Continuous Power |
33 | W |
| Pin Assignment |
|
Pin |
Description |
|
1 |
+5 VDC Power |
|
2 |
A- Channel of Quadrature Encoder |
|
3 |
B+ Channel of Quadrature Encoder |
|
4 |
A+ Channel of Quadrature Encoder |
|
5 |
Return for +5 VDC Power |
|
6 |
Reference Signal, Active High |
|
7 |
B- Channel of Quadrature Encoder |
|
8 |
Motor Minus |
|
9 |
Motor Plus |
