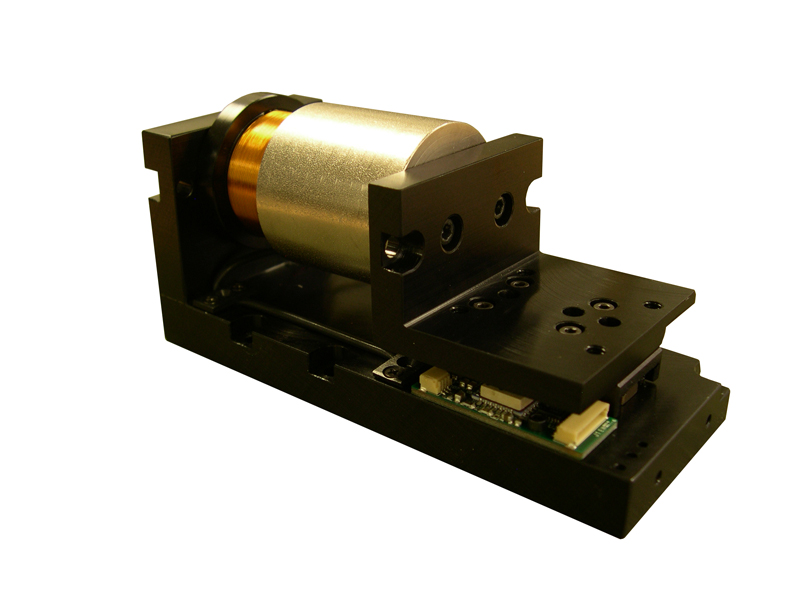

Linear Voice Coil Stage, VCDS-038-038-01-B1-01
Continuous Force: 3.0 lb
(13.4 N), Range of Motion: 0.97” (24.6 mm), Resolution: 1 micron
 |
 |
 |
 |
 |
Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch
Cable is not included and is sold separately Optional cables CBL-01 or CBL-04 |
||
|
VCDS-038-038-01-B1-01 |
|||
Datasheet in PDF

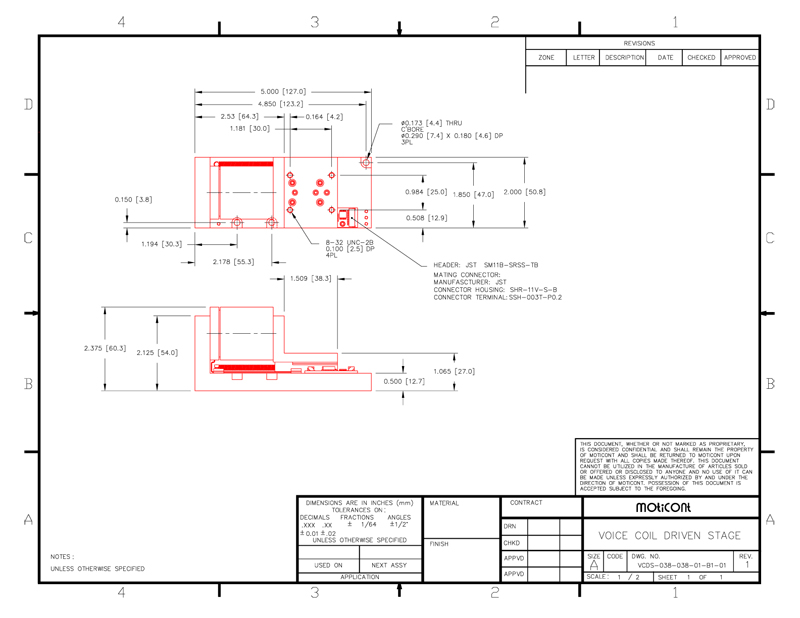

Drawing quick view  |
|||
| STAGE SPECIFICATIONS | ||||
|
Intermittent Force @ 10% Duty Cycle |
42.5 | N |
9.5 |
lb |
| Continuous Force | 13.4 | N |
3.0 |
lb |
|
Force Constant |
10.1 | N/A |
2.3 |
lb/A |
| BACK EMF Constant | 10.1 | V/M/S |
0.26 |
V/in/S |
|
Stroke |
24.6 | mm |
0.97 |
in |
| Moving Mass | 370 | gr |
13.1 |
oz |
|
Total Mass |
730 | gr |
25.7 |
oz |
|
Coil Resistance |
10.1 | Ohm | ||
|
Coil Inductance at 1000 Hz |
3.7 | mH | ||
|
Continuous Power |
18 | W |
| Pin Assignment |
|
Pin |
Description |
|
1 |
+5 VDC Power |
|
2 |
A- Channel of Quadrature Encoder |
|
3 |
B+ Channel of Quadrature Encoder |
|
4 |
A+ Channel of Quadrature Encoder |
|
5 |
Return for +5 VDC Power |
|
6 |
Reference Signal, Active High |
|
7 |
B- Channel of Quadrature Encoder |
|
8 |
Motor Minus |
|
9 |
Motor Plus |
