Motorized Linear Stages, VCDS-025-038-02 Single Motor Series




Videos of Motorized Linear Stages:

Video of Low Cost MULTI-AXIS Motorized Linear Stages Video of Two-axis Voice Coil Motor Stage by MOTICONT Video of Single-axis Positioning Linear Motor Stage by MOTICONT

Motorized Linear Stages Catalog in PDF



Voice Coil Driven Stage VCDS-025-038-02-B1-01



Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

  • Range of Motion: 0.97” (24.6 mm)
  • Positioning Resolution: 1 micron
  • Continuous Force: 1.0 lb (4.6 N)
  • Intermittent Force: 3.2 lb (14.4 N) at 10% duty cycle
  • Optional Return Spring
  • Cross Roller Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch

  • Cable is not included and is sold separately
    Optional cables CBL-01 or CBL-04
    VCDS-025-038-02-B1-01
    Drawing quick view Mechanical Drawing
    Datasheet in PDF Datasheet in PDF

    Voice Coil Driven Stage VCDS-025-038-02-B1-30



    Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

  • Range of Motion: 0.97” (24.6 mm)
  • Positioning Resolution: 29.95 microns
  • Continuous Force: 1.0 lb (4.6 N)
  • Intermittent Force: 3.2 lb (14.4 N) at 10% duty cycle
  • Optional Return Spring
  • Linear Ball Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch

  • Cable is not included and is sold separately
    Optional cables CBL-01 or CBL-04
    VCDS-025-038-02-B1-30
    Drawing quick view Mechanical Drawing
    Datasheet in PDF Datasheet in PDF

    Voice Coil Driven Stage VCDS-025-038-02-F1-01



    Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

  • Range of Motion: 0.97” (24.6 mm)
  • Positioning Resolution: 1 micron
  • Continuous Force: 1.0 lb (4.6 N)
  • Intermittent Force: 3.2 lb (14.4 N) at 10% duty cycle
  • Optional Return Spring
  • Cross Roller Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch

  • Cable is not included and is sold separately
    Optional cables CBL-01 or CBL-04
    VCDS-025-038-02-F1-01
    Drawing quick view Mechanical Drawing
    Datasheet in PDF Datasheet in PDF





    Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

  • Range of Motion: 0.97” (24.6 mm)
  • Positioning Resolution: 29.95 microns
  • Continuous Force: 1.0 lb (4.6 N)
  • Intermittent Force: 3.2 lb (14.4 N) at 10% duty cycle
  • Optional Return Spring
  • Linear Ball Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch

  • Cable is not included and is sold separately
    Optional cables CBL-01 or CBL-04

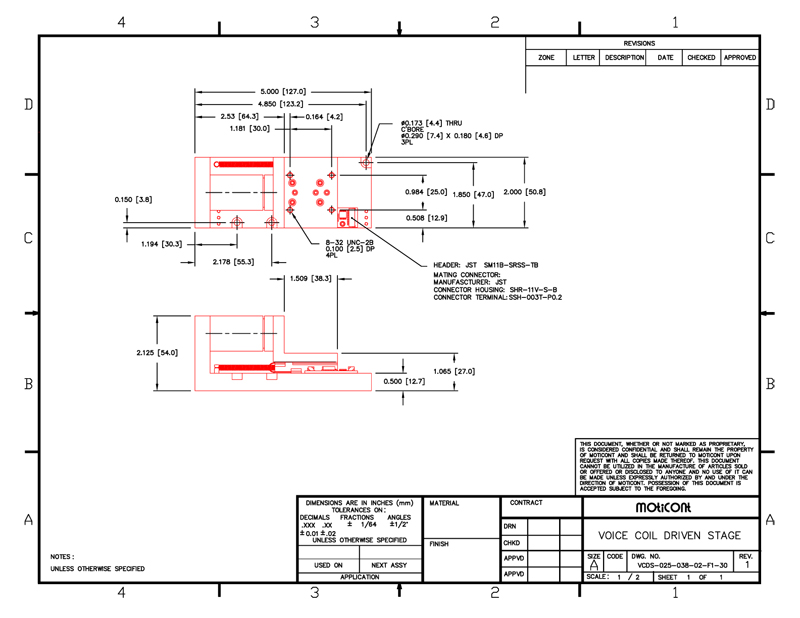

    VCDS-025-038-02-F1-30
    Drawing quick view Mechanical Drawing
    Datasheet in PDF Datasheet in PDF
