Linear Voice Coil Stage VCDS-025-038-02-B2-01
Continuous Force: 2.0 lb (9.2 N), Range of Motion: 0.97” (24.6 mm)




Previous Buy Online View Cart Next
Voice Coil Driven Stage VCDS-025-038-02-B2-01


Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

  • Range of Motion: 0.97” (24.6 mm)
  • Positioning Resolution: 1 microns
  • Continuous Force: 2.0 lb (9.2 N)
  • Intermittent Force: 6.4 lb (28.8 N) at 10% duty cycle
  • Optional Return Spring
  • Cross Roller Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch

Cable is not included and is sold separately
Optional cables CBL-01 or CBL-04
VCDS-025-038-02-B2-01
Datasheet in PDF Datasheet in PDF
Drawing quick view

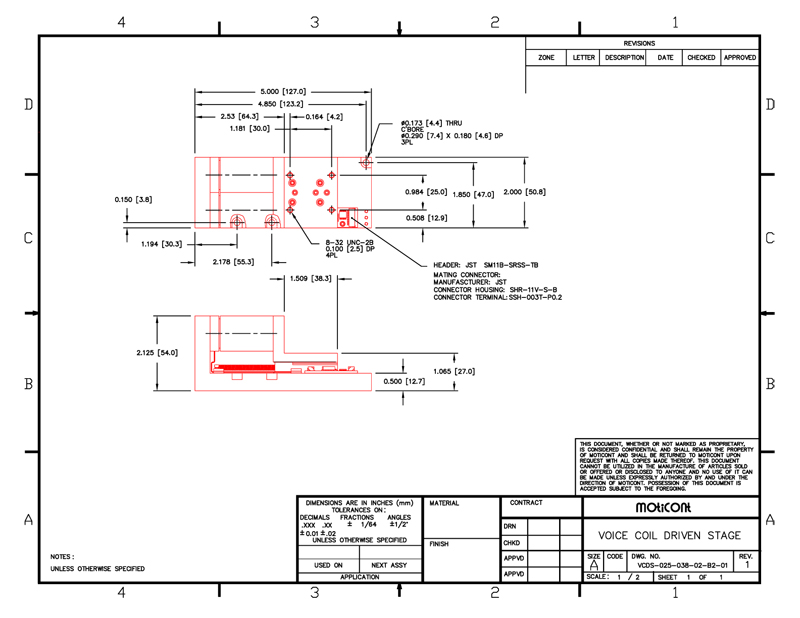

Mechanical Drawing

STAGE SPECIFICATIONS

Intermittent Force @ 10% Duty Cycle

28.8 N

6.4

lb
Continuous Force 9.2 N

2.0

lb

Force Constant

3.9 N/A

0.88

lb/A
BACK EMF Constant 3.9 V/M/S

0.10

V/in/S

Stroke

24.6 mm

0.97

in
Moving Mass 301 gr

10.6

oz

Total Mass

673 gr

23.7

oz

Coil Resistance

3.7 Ohm

Coil Inductance at 1000 Hz

1.2 mH

Continuous Power

20 W

Pin Assignment

Pin

Description

1

+5 VDC Power

2

A- Channel of Quadrature Encoder

3

B+ Channel of Quadrature Encoder

4

A+ Channel of Quadrature Encoder

5

Return for +5 VDC Power

6

Reference Signal, Active High

7

B- Channel of Quadrature Encoder

8

Motor Minus

9

Motor Plus
