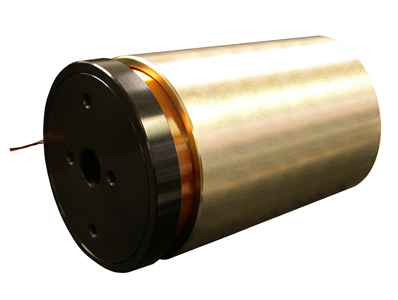

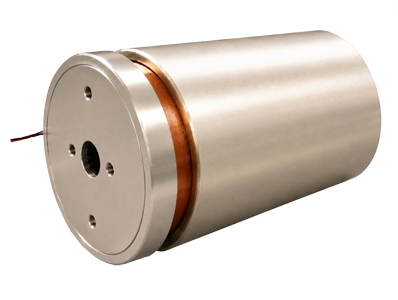

Linear Voice Coil Motor Actuator LVCM-070-089-03VAC, Vacuum Compatible, Continuous Force: 41.0 lb (182.3 N), Stroke: 0.50 in (12.7 mm)
 |
 |
 |
 |
| Housing Outside Diameter, 2.750 inch, 69.9 mm | ||||||||
|
|
||||||||
|
The LVCM-070-089-03VAC linear voice coil motor features 40.86 lbs. (181.5
N) continuous force and 129.1 lbs. (573.4 N) peak force at 10% duty
cycle. This linear voice coil motor has a diameter of 2.750 in. (69.9 mm) diameter, a housing length of 3.50 in. (88.9 mm). This clean, quiet, efficient, low inertia, high acceleration, brushless high speed linear motor has zero cogging and features high accuracy, and a high repeatability when operated in a closed loop as a DC servo motor.. The LVCM-070-089-03VAC linear voice coil motor linear motor has a stroke length of 1.00 in (25.4 mm). and can be easily added to new or existing applications. |
||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-070-089-03VAC | 0.50 | inch | 41.0 | lb | 129.6 | lb | 3.50 | inch |
Datasheet in PDF  |
12.7 | mm | 182.3 | N | 576.6 | N | 88.9 | mm |

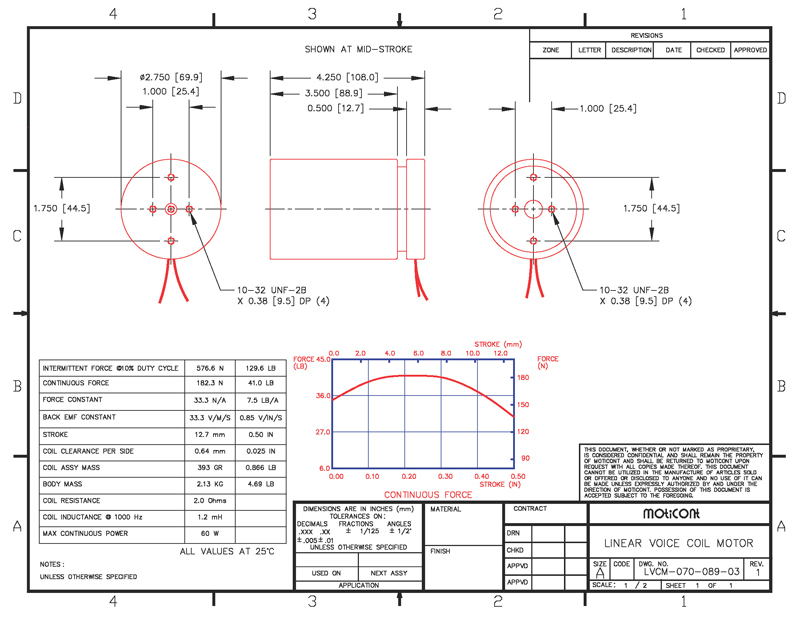

Drawing quick view
 |
Download 3D STEP | |||||||
