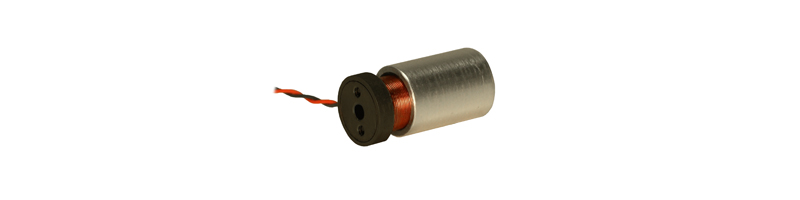

Linear Voice Coil Motor Actuator LVCM-025-038-02VAC, Vacuum Compatible, Continuous Force: 16.4 Oz (4.6 N), Stroke: 1.00 in (25.4 mm)
 |
 |
 |
| Housing Outside Diameter, 1.000 inch, 25.4 mm | ||||||||
|
The LVCM-032-038-02VAC Linear Voice Coil Servo Motor with a 25.4 mm (1.00 in) stroke is a compact linear servo motor with built-in shaft and bearing and is just 31.8 mm (1.250 in) in diameter.
Also referred to as an electric cylinder, this compact linear servo actuator features a continuous high-force-to-size ratio of 4.6 N (1.0 lb) and 14.4 N (3.2 lb) of peak force at a 10 percent duty cycle.
Featuring: High reliability, high speed, zero cogging, high acceleration/deceleration, and when used in a closed servo loop, very high accuracy and repeatability. These non-commutated brushless linear servo motors are clean and quiet. |
||||||||
| Imperial Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-025-038-02VAC | 1.00 | inch | 16.4 | oz | 51.9 | oz | 1.50 | inch |
Datasheet in PDF  |
25.4 | mm | 4.6 | N | 14.4 | N | 38.1 | mm |

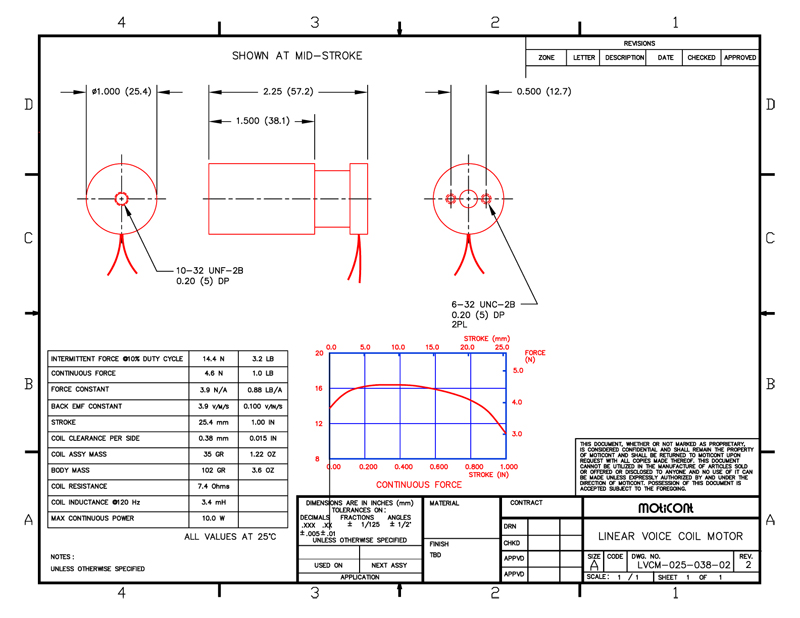

Drawing quick view
 |
Download 3D STEP | |||||||
| ||||||||
| Metric Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-025-038-02MVAC | 1.00 | inch | 16.4 | oz | 51.9 | oz | 1.50 | inch |
|
Datasheet in PDF |
25.4 | mm | 4.6 | N | 14.4 | N | 38.1 | mm |

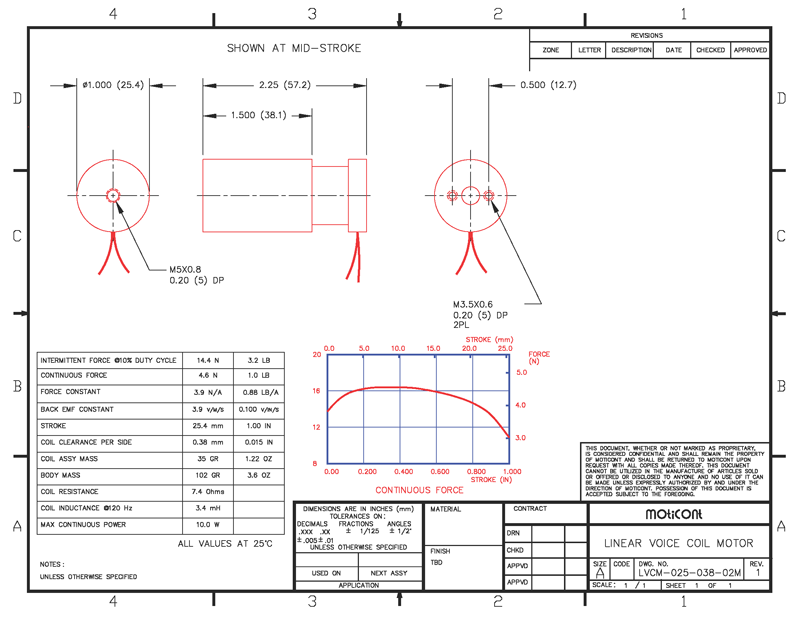

Drawing quick view
 |
Download 3D STEP | |||||||
|
| ||||||||
