Housing Outside Diameter, 1.000
inch, 25.4 mm |
|
|
This vacuum compatible miniature voice coil actuator has a continuous
force of 5.9 oz (1.6 N) and a peak force of 18.6 oz
(5.2 N), and it features a 0.125 in. (3.2 mm)
stroke. It has 0.625 in. in diameter and it is just
0.63 in. long..
The
LVCM-016-010-01VAC Linear Actuator features very high
accuracy and repeatability when operated as a DC
servo motor in a closed servo loop. Each end of
linear actor has two 2-56 UNC-2B threaded mounting
holes in the housing and two 2-56 UNC-2B threaded
mounting holes in the coil end on 0.250 in. (6.35
mm) centers for easy integration into new and
existing applications. |
|
Imperial Model # |
Stroke |
|
Continuous Force |
|
Intermittent Force @ 10% Duty Cycle |
|
Housing Length |
|
| LVCM-025-038-01VAC |
0.37 |
inch |
2.5 |
lb |
7.8 |
lb |
1.50 |
inch |
Datasheet in PDF  |
9.5 |
mm |
11.0 |
N |
34.7 |
N |
38.1 |
mm |

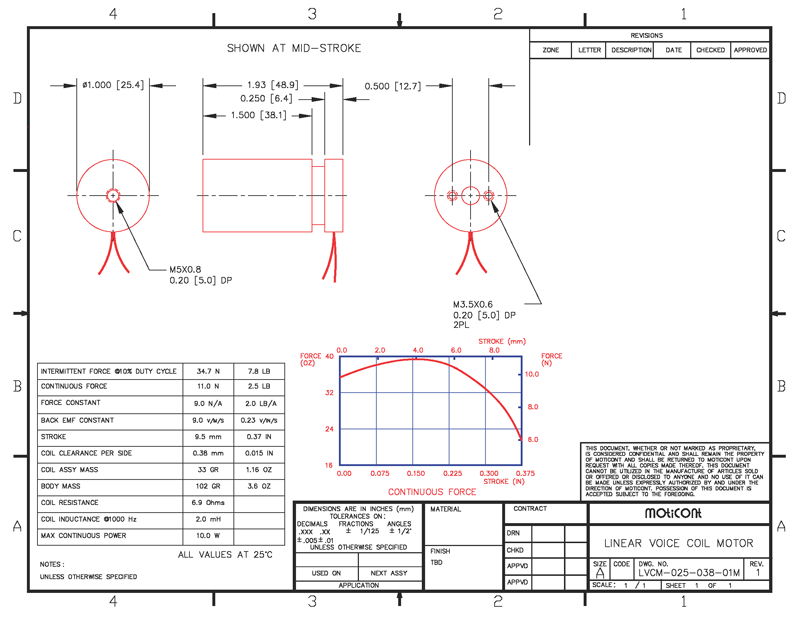

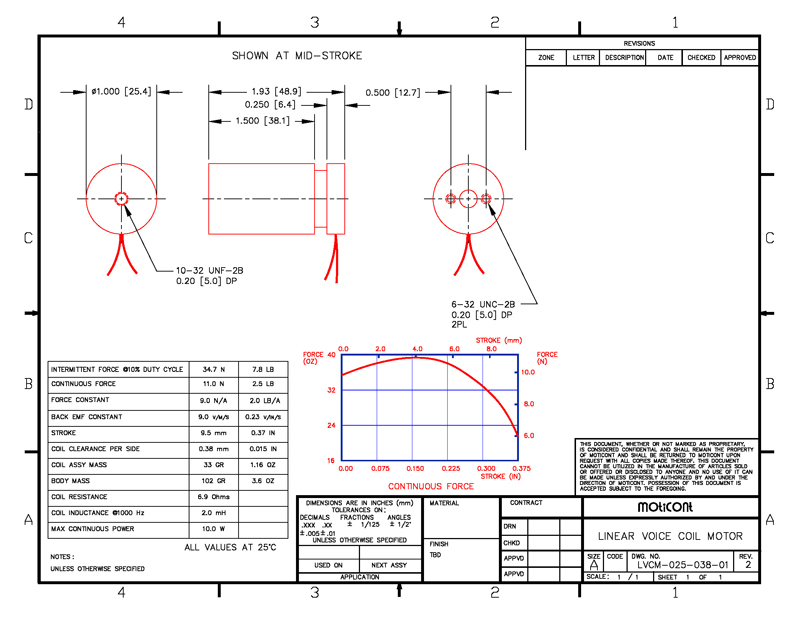

Drawing quick view
 |
Download 3D STEP |
|
|
Metric Model # |
Stroke |
|
Continuous Force |
|
Intermittent Force @ 10% Duty Cycle |
|
Housing Length |
|
| LVCM-025-038-01MVAC |
0.37 |
inch |
2.5 |
lb |
7.8 |
lb |
1.50 |
inch |
|
Datasheet in PDF |
9.5 |
mm |
11.0 |
N |
34.7 |
N |
38.1 |
mm |
|
Drawing quick view
|
Download 3D STEP |
|
