The

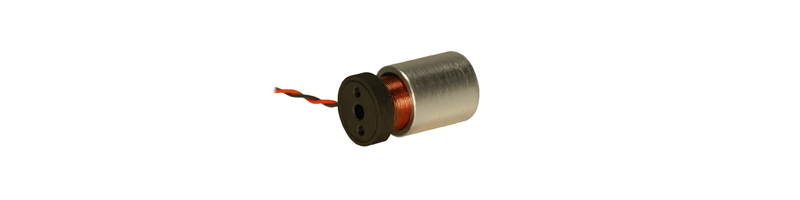

LVCM-025-029-01VAC DC motor has a stroke length of 0.625 in. (15.9 mm) a mid-stroke
length of 1.68 in. (43 mm) with a continuous force of 18.2 oz (5.1 N) and a peak
force of 57.7 oz. (16.0 N) at 10% duty cycle.
The efficient high-speed linear motors have zero cogging and
feature high accuracy, and high repeatability when operated in a closed loop as

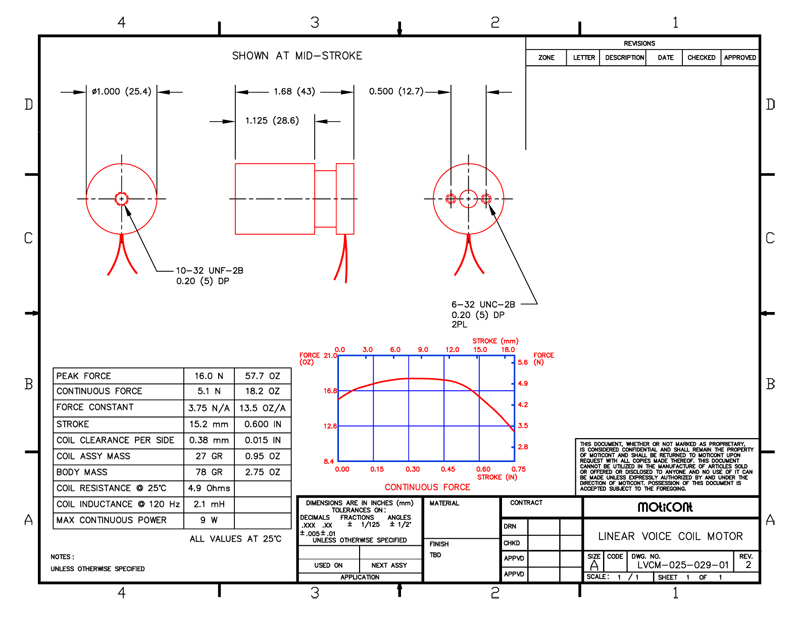

a dc servo motor. Each of these motors features a 10-32 UNC-2B threaded mounting
hole in the center of the housing and two 6-32-UNC-2B threaded mounting holes on
the coil end to simplify addition of these motors to new or existing
applications.
|
