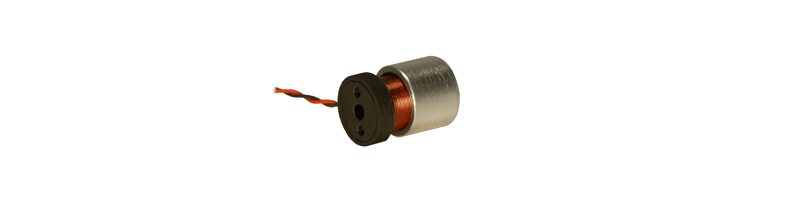

Linear Voice Coil Motor Actuator LVCM-025-022-01VAC, Vacuum Compatible, Continuous Force: 16.9 Oz (4.7 N), Stroke: 0.38 in (9.5 mm)
 |
 |
 |
| Housing Outside Diameter, 1.000 inch, 25.4 mm | ||||||||
|
The vacuum compatible LVCM-025-022-01VAC is 1 inch diameter brushless high speed linear DC motor features zero cogging, is clean, quiet, and efficient. It features high accuracy and high repeatability when operated in a closed loop as a DC servo motor.
Featuring low inertia and high acceleration/deceleration for high throughput, this new linear servo motor has a stroke length of 0.19 in. (4.8 mm). It has a high-force-to-size ratio of 1.65 lb (7.4 N) and a peak force of 5.2 lbs. (23.3 N) at 10% duty cycle.
|
||||||||
| Imperial Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-025-022-01VAC | 0.38 | inch | 16.9 | oz | 53.5 | oz | 0.875 | inch |
Datasheet in PDF  |
9.5 | mm | 4.7 | N | 14.9 | N | 22.2 | mm |

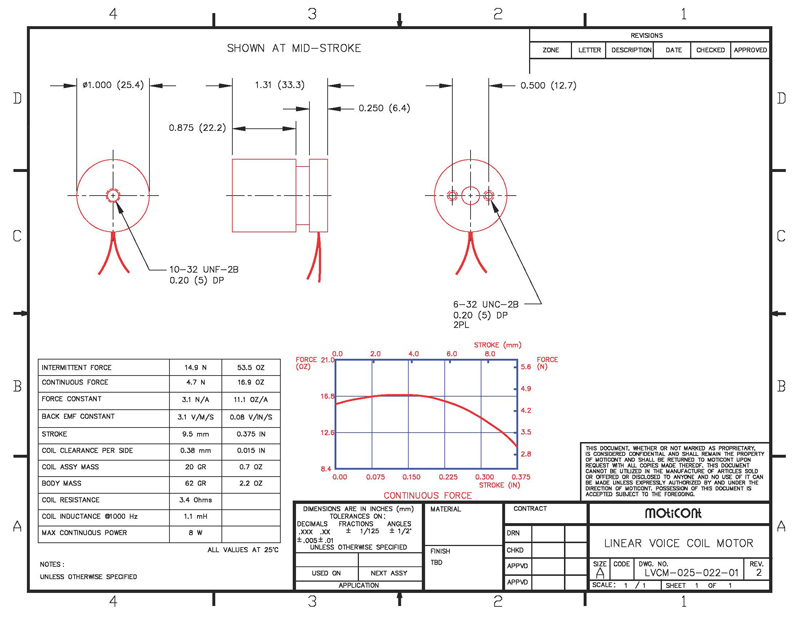

Drawing quick view
 |
Download 3D STEP |
|||||||
| ||||||||
| Metric Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-025-022-01MVAC | 0.38 | inch | 16.9 | oz | 53.5 | oz | 0.875 | inch |
|
Datasheet in PDF
|
9.5 | mm | 4.7 | N | 14.9 | N | 22.2 | mm |

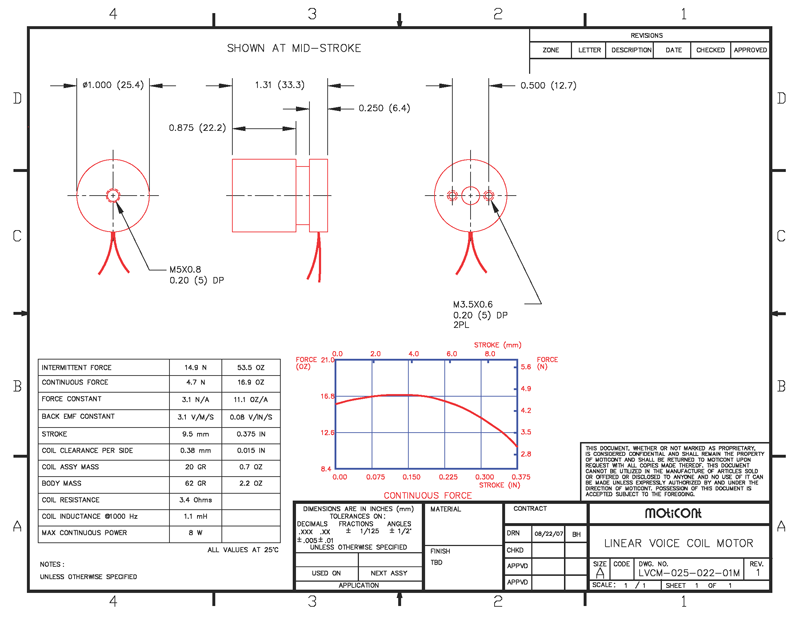

Drawing quick view
 |
Download 3D STEP
|
|||||||
|
| ||||||||
