Housing Outside Diameter, 0.750
inch, 19.1 mm |
|
|
The vacuum compatible LVCM-019-016-02VAC produces 8.9 oz. (2.5 N) of
continuous force and 28.0 oz. (7.8 N) of peak force
in a compact 0.750 in. (19.1 mm) diameter x 0.94 in.
(23.8 mm) long envelope (at mid stroke).
This
high speed motor has zero cogging and features high
accuracy, and high repeatability in.)
when operated in a closed loop as a DC servo motor.

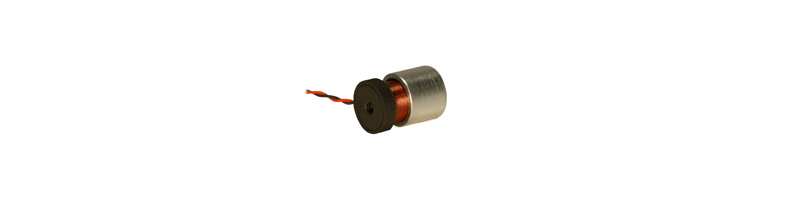

The
miniature LVCM-019-016-02VAC linear voice coil motor
has a stroke length of 0.25 in (6.4 mm). and is
easily added to new or existing applications using
the precision drilled and tapped 8-32 UNC-2B
mounting holes.
|
|
Model # |
Stroke |
|
Continuous Force |
|
Intermittent Force @ 10% Duty
Cycle |
|
Housing Length |
|
| LVCM-019-016-02VAC |
0.25 |
inch |
8.9 |
oz |
28.0 |
oz |
0.625 |
inch |
Datasheet in PDF
 |
6.4 |
mm |
2.5 |
N |
7.8 |
N |
15.9 |
mm |

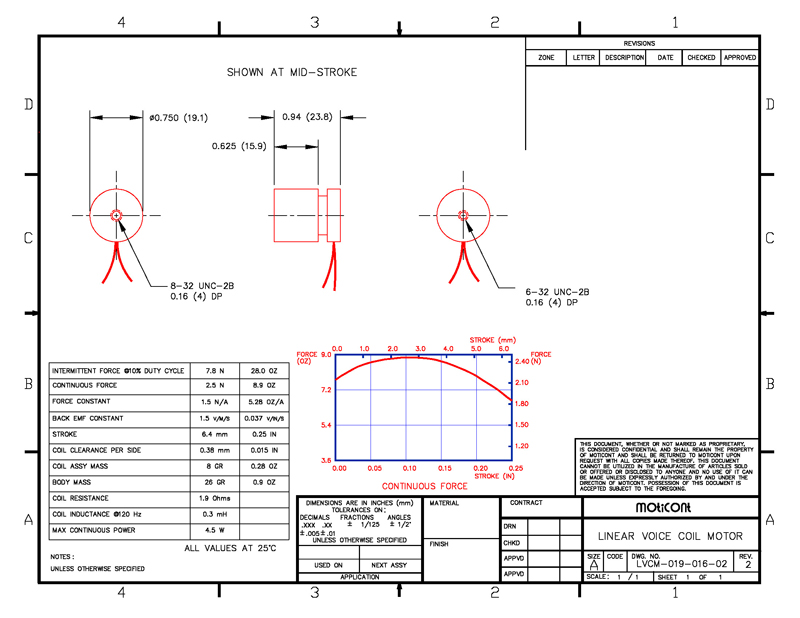

Drawing quick view
 |
Download 3D STEP |
