Hollow Core Linear Voice Coil Motors, HVCM-025-038-003-01VAC
Continuous Force: 2.5 lb (11.0 N), Stroke: 0.375 in (9.5 mm), Aperture: 3.2 mm
 |
 |
 |
 |
| Housing Outside Diameter, 1.000 inch, 25.4 mm | ||||||||||
|
||||||||||
|
The 1.00 inch body diameter open aperture voice coil
linear motor, the HVCM-025-038-003-02, featurs an
open aperture and high force-to-size ratio. This
small brushless servo motor is capable of high
acceleration, deceleration, high speed, zero
cogging, and zero backlash when connected directly
to a load. This open aperture brushless servo motors
is extremely quiet, clean room compliant, and
capable of high precision when used in closed loop
applications. This DC voice coil servo motor has a
continuous force rating of 1.0 lbs (4.6 N) and a
peak force of 3.2 lbs (14.4 N) at a 10% duty cycle.
The 0.125 in. (3.2 mm) open aperture of the HVCM-025-038-003-02VAC Linear Motor allows for optics, illumination, laser beams, or passing cables through. This open aperture voice coil motor has 1.00 in. (25.4 mm) diameter and a housing length of 1.500 in. (38.1 mm) with a 1.00 in. (25.4 mm) stroke. The extended length of the motor is 2.25 in. (57.1 mm) at mid-stroke. Two 6-32 UNF-2B x 0.25 in. threaded mounting holes on 0.500 in. (12.7 mm) centers in the housing and coil allow for flexible and easy integration into new and existing applications. |
||||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | Through Hole Dia. | |||||
| HVCM-025-038-003-01VAC | 0.375 | inch | 2.5 | lb | 7.8 | lb | 1.500 | inch | 0.125 | inch |
Datasheet in PDF  |
9.5 | mm | 11.0 | N | 34.7 | N | 38.1 | mm | 3.2 | mm |

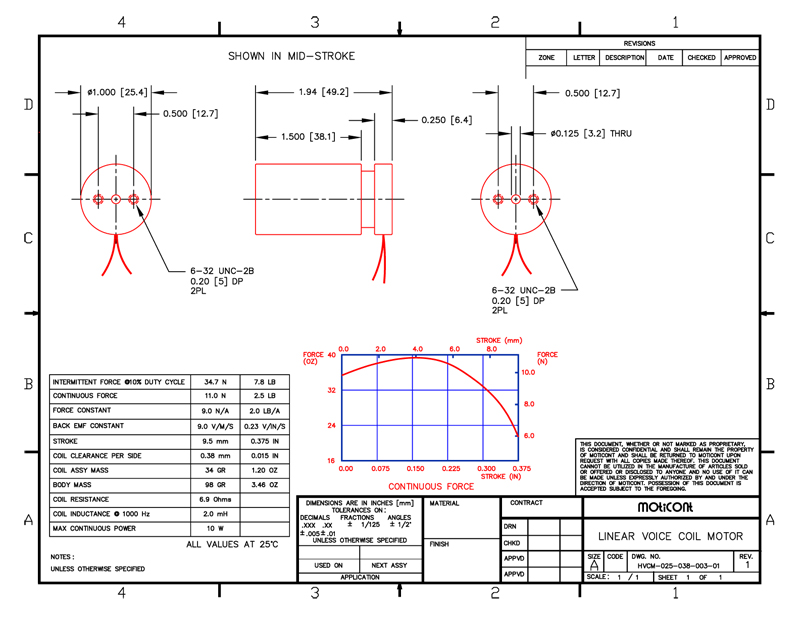

Drawing quick view
 |
Download 3D STEP | |||||||||
