Hollow Core Linear Voice Coil Motors, HVCM-019-032-003-02VAC
Continuous Force: 7.4 oz (2.1 N), Stroke: 0.875 in (22.2 mm), Aperture: 3.2 mm
 |
 |
 |
 |
| Housing Outside Diameter, 0.750 inch, 19.1 mm | ||||||||||
|
|
||||||||||
|
The miniature hollow core HVCM-019-032-003-02VAC
Voice
Coil Motor, has a 3.2 mm open aperture and high
force-to-size ratio. A true DC Servo Motor, it has a continuous force rating of 2.1 N (7.4 oz.) and a peak force of 6.5 N (23.3 oz) at a 10% duty cycle. This quiet, clean, non-commutated, miniature brushless servo motor features: Zero cogging and zero backlash when connected directly to a load, high acceleration, deceleration and high speed. The open aperture of the HVCM-019-032-003-02VAC Linear Motor allows for optics, illumination, laser beams, or passage of cables. The extended length of the motor is 47.6 mm (1.88 in) at mid-stroke. Two threaded mounting holes on 7.9 mm (0.313 in) centers in the housing and coil ends allow for flexible and easy integration into new and existing applications. When used in closed loop applications with an adequate position sensor, resolutions of less then 1 micron are achievable. |
||||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | Through Hole Dia. | |||||
| HVCM-019-032-003-02VAC | 0.875 | inch | 7.4 | oz | 23.3 | oz | 1.250 | inch | 0.125 | inch |
Datasheet in
PDF
|
22.2 | mm | 2.1 | N | 6.5 | N | 31.8 | mm | 3.2 | mm |

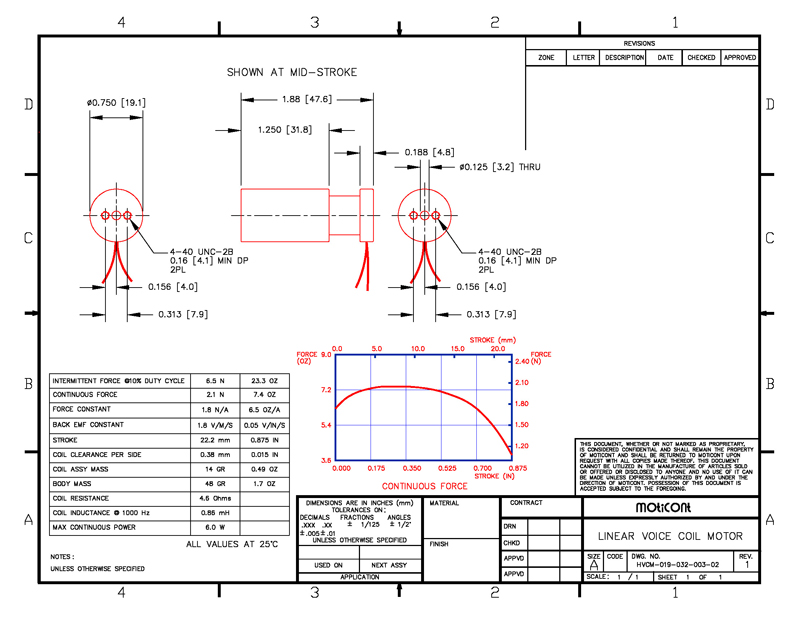

Drawing quick view
 |
Download 3D STEP | |||||||||
