Vacuum Compatible Linear Motor with Internal Shaft & Bearing, GVCM-095-089-0206VAC
Continuous Force: 58.0 lb (257.7 N), Stroke: 1.00 in (25.4 mm)

Housing Outside Diameter, 3.750 inch, 95.3 mm

The GVCM-095-089-0206VAC features 3.5 in. (88.9 mm) long by 3.750 in. (95.3 mm) dia., 1.00 inch (25.4 mm) stroke and a continuous force of 58.0 lbs (257.7 N) and 183.1 lbs (814.5 N) of peak force at a 10% duty cycle, The motor is guided by a long-life plain bearing that permits side loads up to 3 lb (13.5 N). The precision ground 0.236 inch (6.0 mm) diameter shaft has an internal thread. These new voice coil actuators feature: High speed, high acceleration/deceleration, zero backlash, high force to size ratio and high accuracy, and high repeatability when used in a closed loop servo system.
Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length
GVCM-095-089-02S06VAC	1.00	inch	58.0	lb	183.1	lb	3.50	inch
Datasheet in PDF	25.4	mm	257.7	N	814.5	N	88.9	mm

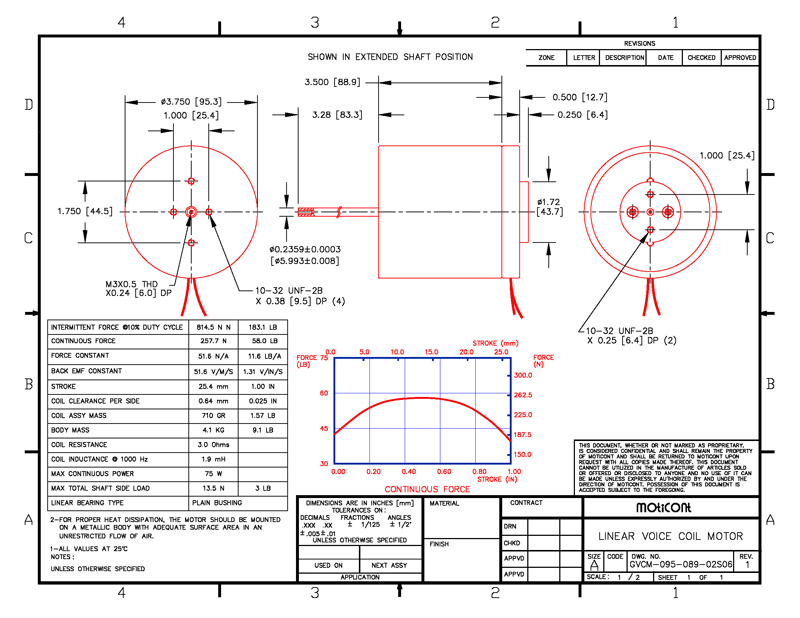

Drawing quick view	Download 3D STEP
