Vacuum Compatible Linear Motor with Internal Shaft & Bearing, GVCM-070-051-01VAC
Continuous Force: 14.6 lb (70.0 N), Stroke: 1.00 in (25.4 mm)

Housing Outside Diameter, 2.750 inch, 69.9 mm

Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length
GVCM-070-051-01VAC	1.00	inch	14.6	lb	46.0	lb	2.00	inch
Datasheet in PDF	25.4	mm	70.0	N	204.7	N	50.8	mm

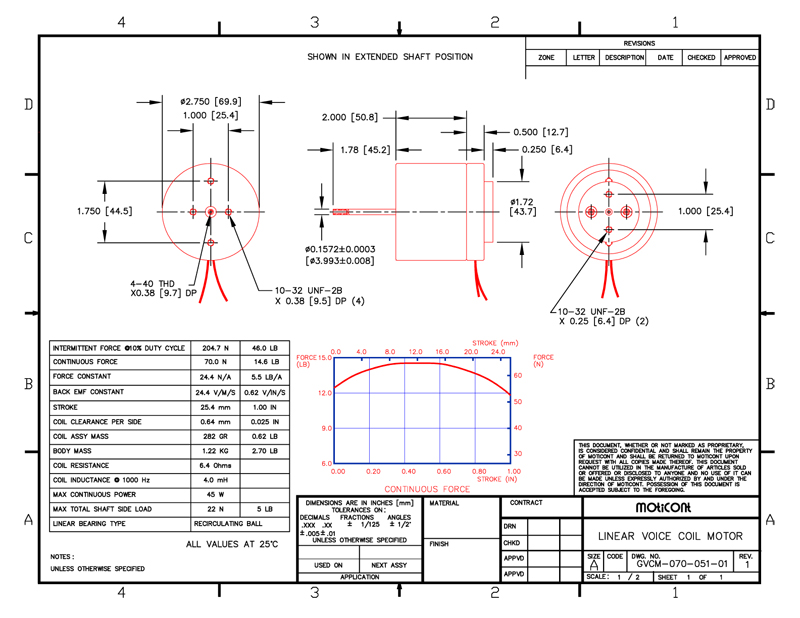

Drawing quick view	Download 3D STEP
