Vacuum Compatible Linear Motor with Internal Shaft & Bearing, GVCM-051-089-01VAC
Continuous Force: 5.9 lb (26.2 N), Stroke: 2.25 in (57.2 mm)

Housing Outside Diameter, 2.000 inch, 50.8 mm

A high Force-to-Size ratio is just one of the many features of Moticont’s GVCM-051-089-02VAC Linear Voice Coil Actuator with Built-in Bearing. Applying up to 66.4 N (14.9 lbs) of continuous force and 210 N (47.2 lbs) of peak force, this linear voice coil actuator or moving coil actuator features high speed, high acceleration/deceleration, and zero backlash. This compact linear actuator is 50.8 mm (2.000 in) in diameter and the total length of the actuator including the 82 mm (3.26 in) shaft extension is 190.5 mm (7.53 in). The diameter of the precision ground shaft is 5.99 mm (0.2360 in.) with a M3X0.5 internal thread. The shaft is supported by a long-life plain bushing and tolerates side loads to 4.4 N (1lb). The housing and coil end have threaded mounting holes on a 25.4 mm (1.000 in) bolt circle for easy integration into current and future applications.
Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length
GVCM-051-089-01S06VAC	2.25	inch	5.9	lb	18.6	lb	3.50	inch
Datasheet in PDF	57.2	mm	26.2	N	82.7	N	88.9	mm

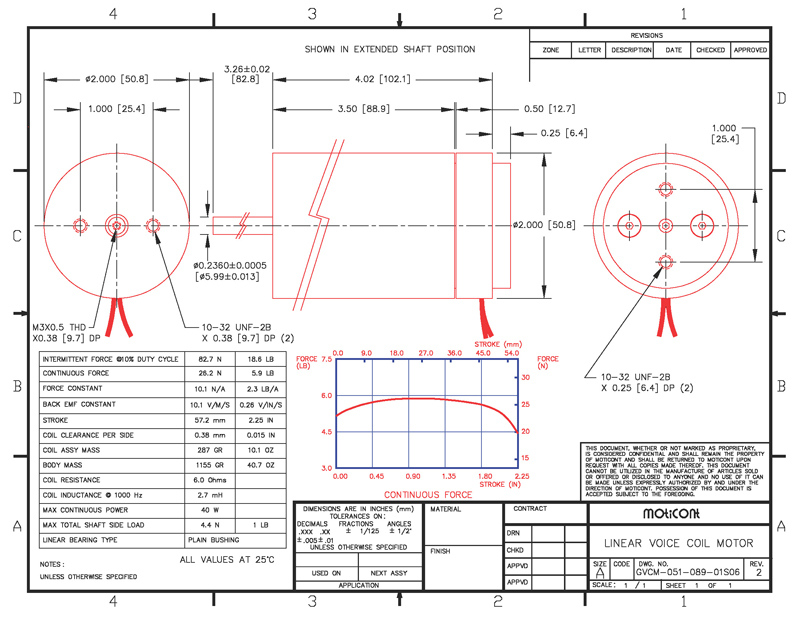

Drawing quick view	Download 3D STEP
