Vacuum Compatible Linear Motor with Internal Shaft & Bearing, GVCM-051-025-01VAC
Continuous Force: 5.3 lb (23.5 N), Stroke: 0.50 in (12.7 mm)

Housing Outside Diameter, 2.000 inch, 50.8 mm

The GVCM-051-025-01VAC Linear Voice Coil Motor features: High acceleration/deceleration, high speed, high reliability, zero backlash, high accuracy, high repeatability, and a 0.5 inch (12.7 mm) stroke length!. This clean, compact, voice coil motor has a high force to size ratio with 5.3 lbs (23.5 N) continuous force and 16.7 lb (74.4 N) of peak force at 10% duty cycle with a housing measuring just 2.00 in. (50.8 mm) diameter with a housing legth of 1.00 in. (25.4 mm). The precision ground 0.1572 (3.993 mm) diameter shaft has an internal thread, and the housing has threaded mounting holes on each end for easy integration into current and future applications.
Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length
GVCM-051-025-01VAC	0.50	inch	5.3	lb	16.7	lb	1.00	inch
Datasheet in PDF	12.7	mm	23.5	N	74.4	N	25.4	mm

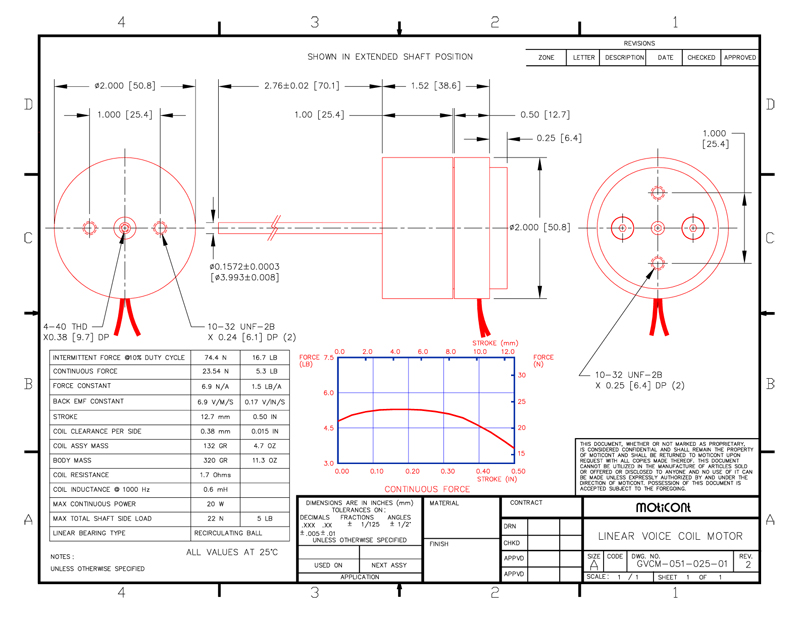

Drawing quick view	Download 3D STEP
