This compact 0.875 in. (22.2 mm) diameter high
speed, high force-to-size linear motor features
high accuracy and high repeatability when
operated in a closed loop as a DC servo motor.
This brushless servo motor is clean, quiet and
has long life, low mass and high
acceleration/deceleration for high throughput.

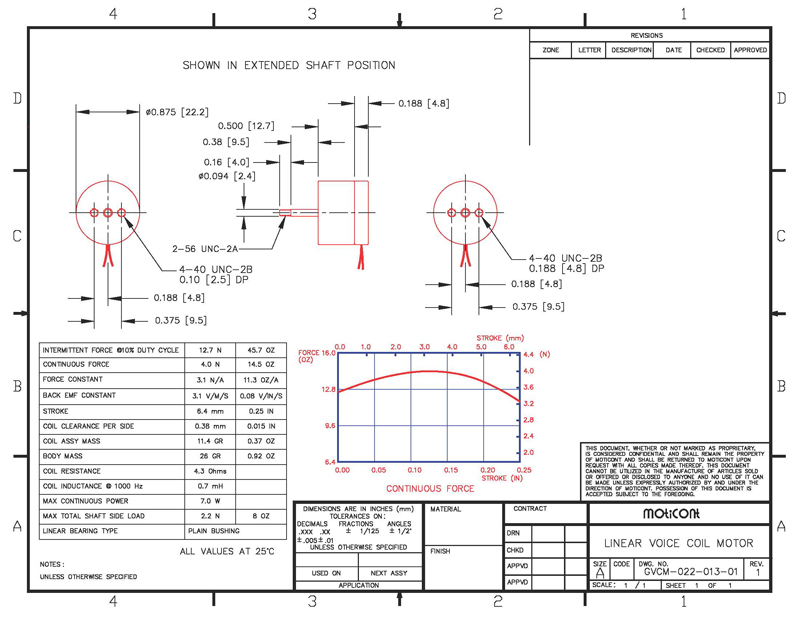

The 0.094 in. (2.4 mm)
diameter shaft has a 2-56 UNC-2A thread and
exerts 14.5 oz. (4.0 N) of continuous force and
45.7 oz (12.7 N) peak force with a 0.25 in. (6.4
mm) stroke. The housing length is 0.500 in.
(12.7 mm) long, the shaft extension is 0.54 in.
(13.5 mm) for a total length (including shaft)
of 1.22 in. (31 mm). For easy integration into
new and existing applications the housing and
coil ends have two 4-40 UNC-2B threaded holes on
a 0.375 (9.5 mm) bolt circle.
|
