Vacuum Compatible Linear Motor with Internal Shaft & Bearing, GVCM-016-010-01VAC
Continuous Force: 5.0 Oz (1.4 N), Stroke: 0.125 in (3.2 mm)

Housing Outside Diameter, 0.625 inch, 15.9 mm

The GVCM-016-010-01VAC Miniature Linear Voice Coil Motor (Linear DC Motor) has a high force to size ratio with 5.0 oz (1.4) continuous force and 15.7 oz (4.4 N) of peak force with a housing measuring just 0.625 in. (15.9 mm) dia. by 0.375 in. (9.5 mm) long. This motor features high acceleration/deceleration, high speed, high reliability, zero backlash and a 0.125 inch (3.2 mm) stroke length. This very small brushless servo motor is an ideal low cost replacement for pneumatic linear actuators. Also called an Electric Cylinder, this linear actuator has a threaded 2-56 UNC-2A shaft for a backlash free connection. The housing and coil each have 2 2-56-UNC-2B threaded mounting holes on 0.25 in (6.35 mm) centers. The built in centered shaft facilitates the commissioning of the motor for easy integration into current and future applications.
Imperial Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length
GVCM-016-010-01VAC	0.125	inch	5.0	oz	15.7	oz	0.375	inch
Datasheet in PDF	3.2	mm	1.4	N	4.4	N	9.5	mm

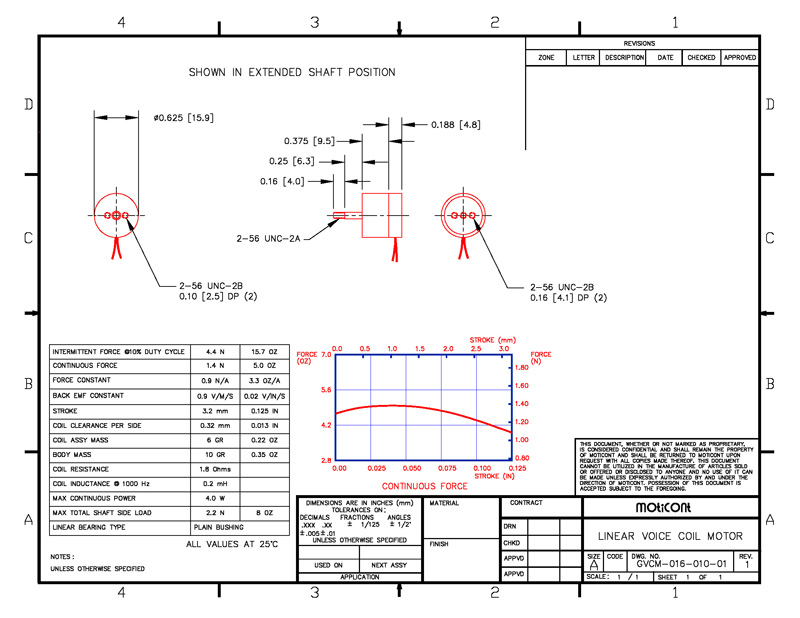

Drawing quick view	Download 3D STEP

Metric Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length
GVCM-016-010-01MVAC	0.125	inch	5.0	oz	15.7	oz	0.375	inch
Datasheet in PDF	3.2	mm	1.4	N	4.4	N	9.5	mm

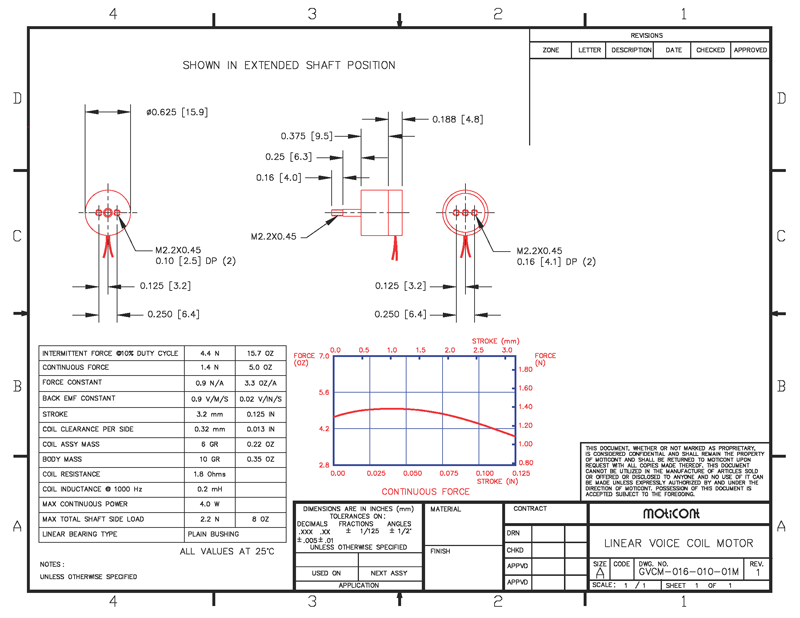

Drawing quick view	Download 3D STEP
