Linear Motor with Internal Shaft & Bearing, GVCM-095-064-02S04
Continuous
Force: 44.9 lb (199.1 N), Stroke: 0.50 in (12.7 mm)
 |
 |
 |
 |
| Housing Outside Diameter, 3.750 inch, 95.3 mm | ||||||||
|
|
||||||||
| 4 mm Diameter Shaft Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| GVCM-095-064-02S04 | 0.50 | inch | 44.9 | lb | 141.8 | lb | 2.50 | inch |
Datasheet in PDF  |
12.7 | mm | 199.1 | N | 629.2 | N | 63.5 | mm |

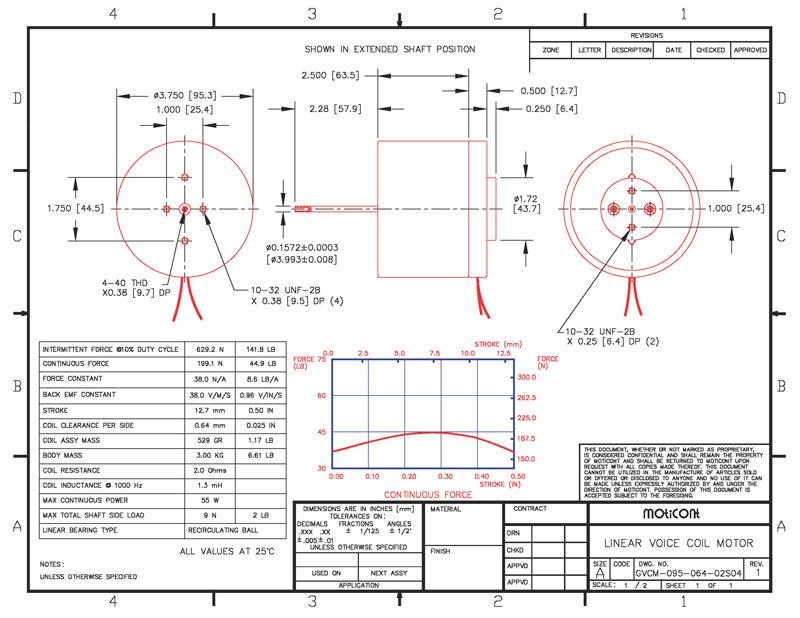

Drawing quick view
 |
Download 3D STEP | |||||||
