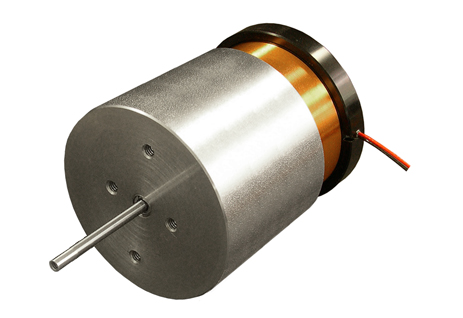

Linear Motor with Internal Shaft & Bearing, GVCM-070-051-01
Continuous
Force: 14.6 lb (70.0 N), Stroke: 1.00 in (25.4 mm)
 |
 |
 |
 |
| Housing Outside Diameter, 2.750 inch, 69.9 mm | ||||||||
|
||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| GVCM-070-051-01 | 1.00 | inch | 14.6 | lb | 46.0 | lb | 2.00 | inch |
Datasheet in PDF  |
25.4 | mm | 70.0 | N | 204.7 | N | 50.8 | mm |

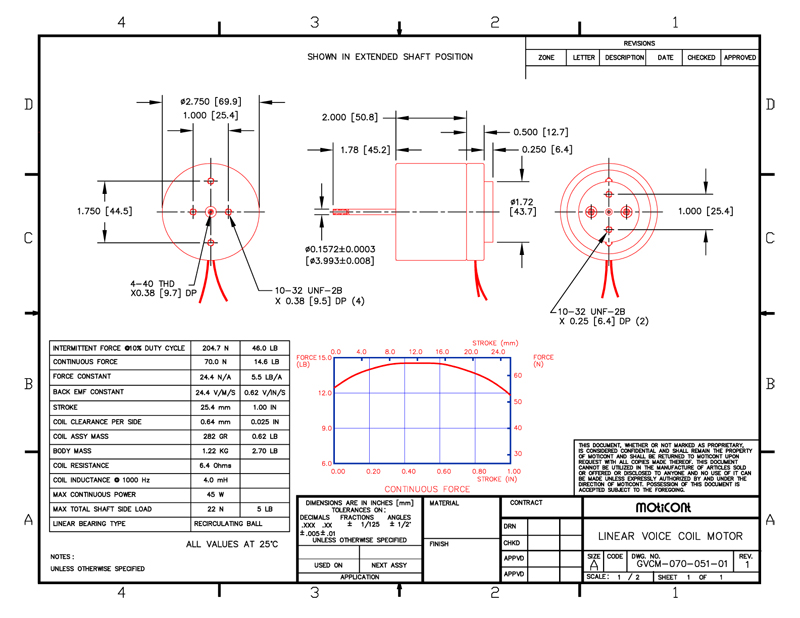

Drawing quick view
 |
Download 3D STEP | |||||||
