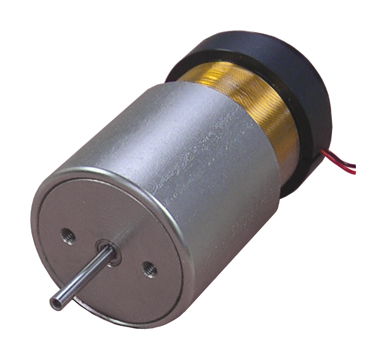

Linear Motor with Internal Shaft & Bearing, GVCM-051-051-01
Continuous
Force: 6.3 lb (28.0 N), Stroke: 0.75 in (19.1 mm)
 |
 |
 |
 |
| Housing Outside Diameter, 2.000 inch, 50.8 mm | ||||||||
|
||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| GVCM-051-051-01 | 0.75 | inch | 6.3 | lb | 19.9 | lb | 2.00 | inch |
Datasheet in PDF  |
19.1 | mm | 28.0 | N | 88.6 | N | 50.8 | mm |

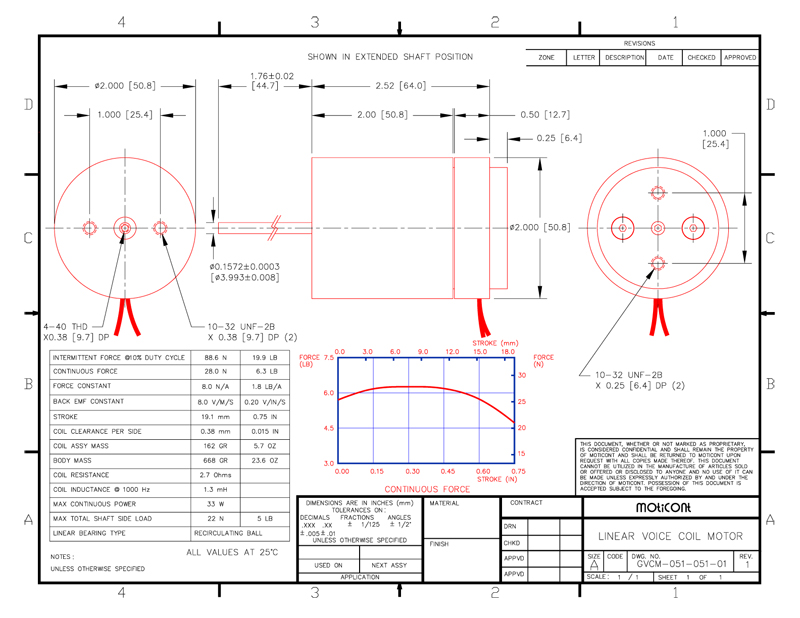

Drawing quick view
 |
Download 3D STEP | |||||||
