Voice Coil Motor Driver, 950 Series
 |
 |
A high
performance, dual channel, cost effective DC Motor Driver to implement
intelligent Motion Control with analog inputs. Supplied with mounting card for
easy wire connection and mounting.
This driver does not accept feedback.
|
Features:
|
|
ELECTRICAL SPECIFICATIONS |
|
| Supply Voltage |
+6 VDC to +12 VDC |
| Phase Current |
0 to 1 Amps Continuous, 3 Amps Peak |
| PWMFrequency |
9.7kHz |

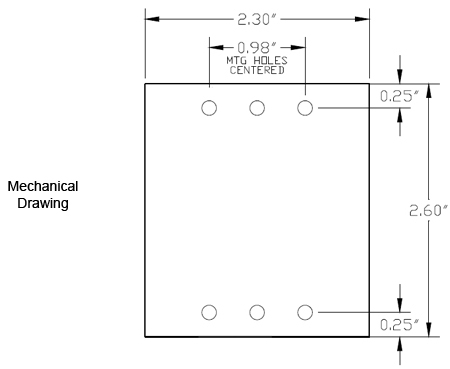

MECHANICAL SPECIFICATIONS |
|
| Dimensions | 2.6" (66 mm) x 3.2" (81.3 mm) |

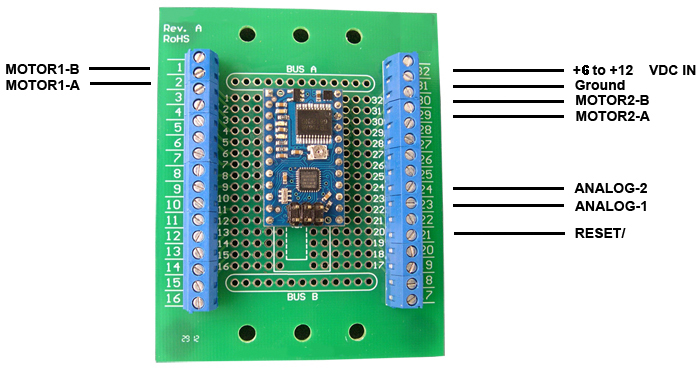

Pinout - Inputs
| PIN | Range | Description |
|---|---|---|

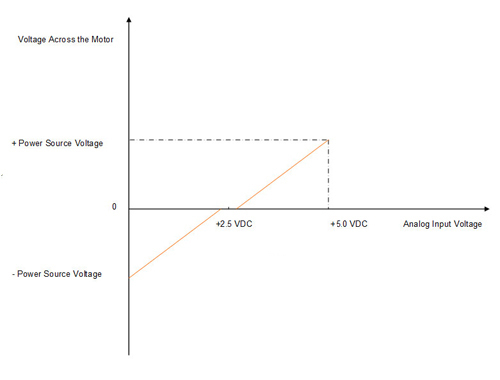

| ANALOG-1 | 0 ~ +5 VDC | Analog Control Input for Motor-1 |
| ANALOG-2 | 0 ~ +5 VDC | Analog Control Input for Motor-2 |
Pinout - Power
| PIN | Description |
|---|---|
| +6 ~ +12 VDC IN | +6 VDC to 12 VDC for Power Input |
| GROUND | Ground Connection for Power Supply and Input Signals |
| MOTOR1-A | Output to Drive Motor 1 |
| MOTOR1-B | Output to Drive Motor 1 |
| MOTOR2-A | Output to Drive Motor 2 |
| MOTOR2-B | Output to Drive Motor 2 |
