Linear DC Motors Comparison Table


Model #

Stroke   Continuous Force



  Intermittent Force @ 10% Duty Cycle   Force Constant



  Coil Mass



  Body Mass



  Housing Outside Diameter   Housing Length




LVCM-010-013-01 0.25 inch 1.0 oz 3.2 oz 1.0 oz/A 0.09 oz 0.13 oz 0.375 inch 0.500 inch
Datasheet in PDF 6.4 mm 0.28 N 0.88 N 0.29 N/A 2.5 gr 3.8 gr 9.5 mm 12.7 mm

LVCM-013-008-02 0.125 inch 2.9 oz 9.1 oz 3.5 oz/A 0.1 oz 0.18 oz 0.500 inch 0.313 inch
Datasheet in PDF 3.2 mm 0.8 N 2.53 N 0.97 N/A 2.7 gr 5.0 gr 12.7 mm 8.0 mm

LVCM-013-013-02 0.25 inch 3.1 oz 9.8 oz 2.5 oz/A 0.19 oz 0.27 oz 0.500 inch 0.500 inch
Datasheet in PDF 6.4 mm 0.86 N 2.73 N 0.69 N/A 5.4 gr 7.6 gr 12.7 mm 12.7 mm

LVCM-013-019-02 0.50 inch 2.9 oz 9.2 oz 2.8 oz/A 0.23 oz 0.37 oz 0.500 inch 0.750 inch
Datasheet in PDF 12.7 mm 0.81 N 2.55 N 0.77 N/A 6.4 gr 10.6 gr 12.7 mm 19.1 mm

LVCM-013-025-02 0.75 inch 2.9 oz 9.0 oz 2.9 oz/A 0.32 oz 0.49 oz 0.500 inch 1.000 inch
Datasheet in PDF 19.1 mm 0.79 N 2.51 N 0.80 N/A 9.0 gr 13.8 gr 12.7 mm 25.4 mm

LVCM-013-032-02 1.00 inch 2.5 oz 7.9 oz 2.7 oz/A 0.38 oz 0.60 oz 0.500 inch 1.250 inch
Datasheet in PDF 25.4 mm 0.70 N 2.20 N 0.76 N/A 10.8 gr 17 gr 12.7 mm 31.8 mm

LVCM-013-044-02 1.50 inch 2.5 oz 8.0 oz 3.0 oz/A 0.52 oz 0.88 oz 0.500 inch 1.750 inch
Datasheet in PDF 38.1 mm 0.71 N 2.23 N 0.84 N/A 14.6 gr 25 gr 12.7 mm 44.5 mm

LVCM-013-044-03 0.60 inch 6.9 oz 21.7 oz 8.01 oz/A 0.51 oz 0.88 oz 0.500 inch 1.750 inch
Datasheet in PDF 15.2 mm 1.9 N 6.0 N 2.23 N/A 14.5 gr 25 gr 12.7 mm 44.5 mm

LVCM-016-010-01 0.125 inch 5.9 oz 18.6 oz 4.0 oz/A 0.18 oz 0.25 oz 0.625 inch 0.375 inch
Datasheet in PDF 3.2 mm 1.6 N 5.2 N 1.1 N/A 5.0 gr 7.0 gr 15.9 mm 9.5 mm
LVCM-016-013-01 0.25 inch 6.3 oz 20.0 oz 5.1 oz/A 0.25 oz 0.42 oz 0.625 inch 0.500 inch
Datasheet in PDF 6.4 mm 1.8 N 5.6 N 1.4 N/A 7.0 gr 12 gr 15.9 mm 12.7 mm

LVCM-016-019-01 0.50 inch 6.1 oz 19.3 oz 6.3 oz/A 0.32 oz 0.60 oz 0.625 inch 0.750 inch
Datasheet in PDF 12.7 mm 1.7 N 5.4 N 1.7 N/A 9.0 gr 17 gr 15.9 mm 19.1 mm

LVCM-019-016-02 0.25 inch 8.9 oz 28.0 oz 5.28 oz/A 0.28 oz 0.9 oz 0.750 inch 0.875 inch
Datasheet in PDF 6.4 mm 2.5 N 7.8 N 1.5 N/A 8 gr 26 gr 19.1 mm 22.2 mm

LVCM-019-022-02 0.5 inch 8.1 oz 25.7 oz 5.74 oz/A 0.39 oz 1.3 oz 0.750 inch 0.875 inch
Datasheet in PDF 12.7 mm 2.3 N 7.1 N 1.6 N/A 11 gr 36 gr 19.1 mm 22.2 mm

LVCM-019-032-02 0.875 inch 8.1 oz 25.7 oz 7.12 oz/A 0.49 oz 1.7 oz 0.750 inch 1.250 inch
Datasheet in PDF 22.2 mm 2.3 N 7.2 N 2.0 N/A 14 gr 48 gr 19.1 mm 31.8 mm

LVCM-019-048-02 1.5 inch 7.4 oz 23.5 oz 7.06 oz/A 0.71 oz 2.6 oz 0.750 inch 1.875 inch
Datasheet in PDF 38.1 mm 2.1 N 6.5 N 2.0 N/A 20 gr 73 gr 19.1 mm 47.6 mm

LVCM-022-013-01 0.25 inch 14.5 oz 45.7 oz 11.3 oz/A 0.37 oz 0.92 oz 0.875 inch 0.500 inch
Datasheet in PDF 6.4 mm 4.0 N 12.7 N 3.1 N/A 10.4 gr 26.0 gr 22.2 mm 20.7 mm

LVCM-022-013-02 0.25 inch 5.9 oz 18.7 oz 5.9 oz/A 0.27 oz 0.75 oz 0.500 inch 0.500 inch
Datasheet in PDF 6.4 mm 1.6 N 5.2 N 1.6 N/A 7.7 gr 21.3 gr 12.7 mm 12.7 mm

LVCM-025-022-01 0.38 inch 16.9 oz 53.5 oz 11.1 oz/A 0.71 oz 2.2 oz 1.000 inch 0.875 inch
Datasheet in PDF 9.5 mm 4.7 N 14.9 N 3.1 N/A 20 gr 62 gr 25.4 mm 22.2 mm

LVCM-025-022-02 0.19 inch 26.5 oz 83.9 oz * oz/A * oz   oz * inch * inch
Datasheet in PDF 4.8 mm 7.4 N 23.3 N * N/A * gr   gr * mm * mm

LVCM-025-029-01 0.63 inch 18.2 oz 57.7 oz 13.5 oz/A 0.95 oz 2.8 oz 1.000 inch 1.125 inch
Datasheet in PDF 15.9 mm 5.1 N 16.0 N 3.75 N/A 27 gr 78 gr 25.4 mm 28.6 mm

LVCM-025-029-02 0.31 inch 37.6 oz 118.9 oz * oz/A * oz   oz * inch * inch
Datasheet in PDF 7.9 mm 10.5 N 33.1 N * N/A * gr   gr * mm * mm

LVCM-025-038-01 0.37 inch 2.5 lb 7.8 lb 2.0 lb/A 1.16 oz 3.6 oz 1.000 inch 1.50 inch
Datasheet in PDF 9.5 mm 11 N 34.7 N 9.0 N/A 33 gr 102 gr 25.4 mm 38.1 mm

LVCM-025-038-02 1.00 inch 16.4 oz 51.9 oz 0.88 lb/A 1.22 oz 3.6 oz 1.000 inch 1.50 inch
Datasheet in PDF 25.4 mm 4.6 N 14.4 N 3.9 N/A 35 gr 102 gr 25.4 mm 38.1 mm

LVCM-032-025-02 0.50 inch 2.1 lb 6.6 lb 0.88 lb/A 0.99 oz 4.5 oz 1.250 inch 1.00 inch
Datasheet in PDF 12.7 mm 9.3 N 29.3 N 3.9 N/A 28 gr 127 gr 31.8 mm 25.4 mm

LVCM-032-038-02 1.00 inch 1.9 lb 5.9 lb 0.94 lb/A 1.34 oz 6.5 oz 1.250 inch 1.50 inch
Datasheet in PDF 25.4 mm 8.3 N 26.1 N 4.2 N/A 38 gr 184 gr 31.8 mm 28.6 mm

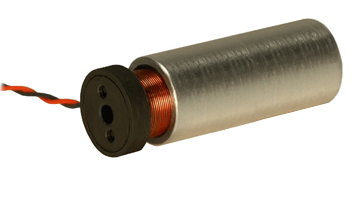

LVCM-032-076-02 2.50 inch 1.8 lb 5.7 lb 1.11 lb/A 2.40 oz 12.7 oz 1.250 inch 3.0 inch
Datasheet in PDF 63.5 mm 8.0 N 25.3 N 5.0 N/A 68 gr 360 gr 31.8 mm 76.2 mm

LVCM-038-038-01 0.75 inch 3.0 lb 9.5 lb 2.3 lb/A 1.90 oz 9.5 oz 1.500 inch 1.50 inch
Datasheet in PDF 19.1 mm 13.4 N 42.5 N 10.1 N/A 54 gr 270 gr 38.1 mm 38.1 mm

LVCM-038-038-02 0.38 inch 5.6 lb 17.7 lb 3.9 lb/A 1.83 oz 9.3 oz 1.500 inch 1.50 inch
Datasheet in PDF 9.5 mm 24.9 N 78.8 N 17.3 N/A 52 gr 265 gr 38.1 mm 38.1 mm

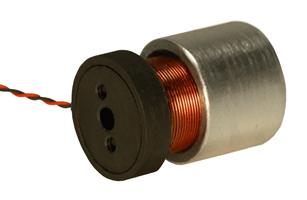

LVCM-044-032-02 0.50 inch 5.0 lb 15.8 lb 2.8 lb/A 2.3 oz 11.3 oz 1.750 inch 1.25 inch
Datasheet in PDF 12.7 mm 22.2 N 70.4 N 12.3 N/A 64 gr 320 gr 44.5 mm 31.8 mm

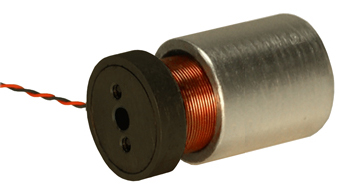

LVCM-044-051-01 1.25 inch 4.9 lb 15.4 lb 2.3 lb/A 5.8 oz 14.3 oz 1.750 inch 2.00 inch
Datasheet in PDF 31.8 mm 21.6 N 68.4 N 10.3 N/A 165 gr 405 gr 44.5 mm 50.8 mm

LVCM-044-051-02 1.25 inch 5.0 lb 15.8 lb 1.6 lb/A 3.2 oz 17.5 oz 1.750 inch 2.00 inch
Datasheet in PDF 31.8 mm 22.3 N 70.4 N 6.9 N/A 90 gr 497 gr 44.5 mm 50.8 mm

LVCM-051-025-01 0.50 inch 5.3 lb 16.9 lb 1.6 lb/A 3.2 oz 11.5 oz 2.000 inch 1.00 inch
Datasheet in PDF 12.7 mm 23.7 N 74.8 N 6.9 N/A 92 gr 326 gr 50.8 mm 25.4 mm

LVCM-051-032-01 0.75 inch 6.3 lb 20.0 lb 1.9 lb/A 3.6 oz 14.4 oz 2.000 inch 1.25 inch
Datasheet in PDF 19.1 mm 28.2 N 89.9 N 8.4 N/A 103 gr 409 gr 50.8 mm 31.8 mm

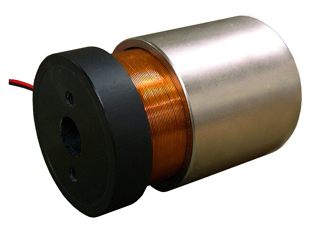

LVCM-051-051-01 0.75 inch 6.3 lb 19.9 lb 1.8 lb/A 4.23 oz 24.2 oz 2.000 inch 2.00 inch
Datasheet in PDF 19.1 mm 28.0 N 88.6 N 8.0 N/A 120 gr 685 gr 50.8 mm 50.8 mm

LVCM-051-051-05 1.00 inch 6.6 lb 20.8 lb 1.98 lb/A 4.23 oz 23.6 oz 2.000 inch 2.00 inch
Datasheet in PDF 25.4 mm 29.3 N 92.6 N 8.8 N/A 120 gr 670 gr 50.8 mm 50.8 mm

LVCM-051-051-06 1.25 inch 3.0 lb 9.5 lb * lb/A * lb   lb * inch * inch
Datasheet in PDF 31.8 mm 13.3 N 42.2 N * N/A * gr   gr * mm * mm

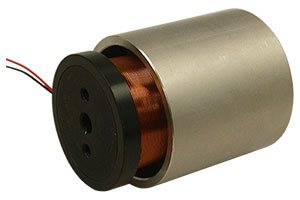

LVCM-051-051-07 0.625 inch 5.02 lb 15.9 lb 1.59 lb/A 3.07 oz 16.1 oz 2.000 inch 2.00 inch
Datasheet in PDF 15.9 mm 22.3 N 70.6 N 7.9 N/A 87 gr 455 gr 50.8 mm 50.8 mm

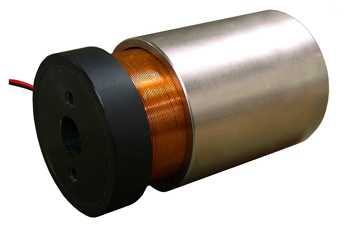

LVCM-051-064-01 1.25 inch 6.6 lb 20.9 lb 2.2 lb/A 5.3 oz 30.0 oz 2.000 inch 2.50 inch
Datasheet in PDF 31.8 mm 29.4 N 92.9 N 9.6 N/A 150 gr 850 gr 50.8 mm 63.5 mm

LVCM-051-064-02 0.50 inch 15.3 lb 48.5 lb 4.8 lb/A 4.9 oz 29.6 oz 2.000 inch 2.50 inch
Datasheet in PDF 12.7 mm 68.2 N 215.5 N 21.6 N/A 140 gr 840 gr 50.8 mm 63.5 mm

LVCM-051-064-03 0.5 inch 19.3 lb 60.8 lb * lb/A * lb   lb * inch * inch
Datasheet in PDF 12.7 mm 85.4 N 270.0 N * N/A * gr * gr * mm * mm

LVCM-051-064-05 2.0 inch 5.8 lb 18.4 lb * lb/A * lb   lb * inch * inch
Datasheet in PDF 50.8 mm 25.8 N 81.7 N * N/A * gr * gr * mm * mm

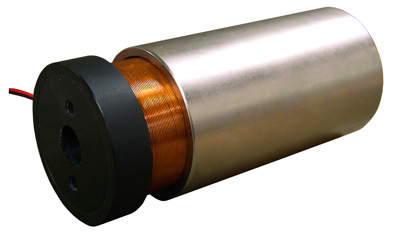

LVCM-051-089-01 2.25 inch 5.9 lb 18.6 lb 2.3 lb/A 6.9 oz 40.7 oz 2.000 inch 3.50 inch
Datasheet in PDF 57.2 mm 26.2 N 82.7 N 10.1 N/A 195 gr 1155 gr 50.8 mm 88.9 mm

LVCM-051-089-02 1.00 inch 14.9 lb 47.2 lb 5.7 lb/A 6.7 oz 40.6 oz 2.000 inch 3.50 inch
Datasheet in PDF 25.4 mm 66.4 N 210 N 25.5 N/A 190 gr 1150 gr 50.8 mm 88.9 mm

LVCM-051-089-05 2.75 inch 5.5 lb 17.5 lb * lb/A * lb   lb * inch * inch
Datasheet in PDF 69.9 mm 24.6 N 77.7 N * N/A * gr   gr * mm * mm

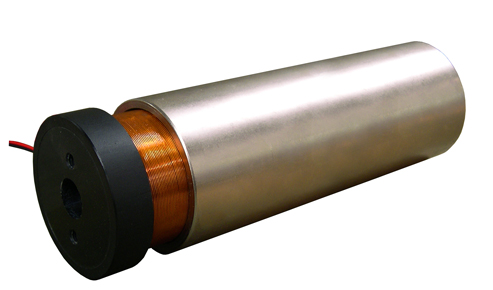

LVCM--051-127-01 3.75 inch 5.0 lb 15.8 lb * lb/A * lb   lb * inch * inch
Datasheet in PDF 95.3 mm 22.2 N 70.3 N * N/A * gr   gr * mm * mm

LVCM--051-127-02 1.75 inch 13.8 lb 43.7 lb * lb/A * lb   lb * inch * inch
Datasheet in PDF 44.5 mm 61.5 N 194.4 N * N/A * gr   gr * mm * mm

LVCM--051-127-03 1.00 inch 22.4 lb 70.7 lb * lb/A * lb   lb * inch * inch
Datasheet in PDF 25.4 mm 99.5 N 314.5 N * N/A * gr   gr * mm * mm

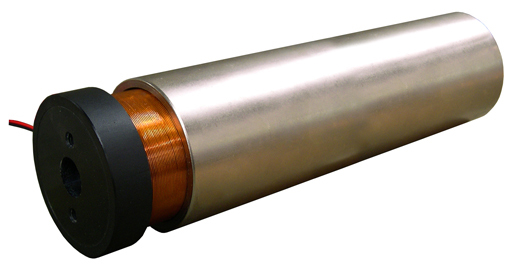

LVCM-051-165-01 5.25 inch 4.8 lb 15.3 lb 2.4 lb/A 12.0 oz 74.0 oz 2.000 inch 6.50 inch
Datasheet in PDF 133.4 mm 21.5 N 68.1 N 10.6 N/A 340 gr 2100 gr 50.8 mm 165.1 mm

LVCM-051-165-02 2.50 inch 13.4 lb 42.3 lb 6.6 lb/A 12 oz 340 oz 2.000 inch 2.50 inch
Datasheet in PDF 63.5 mm 59.4 N 187.8 N 29.3 N/A 74 gr 2100 gr 50.8 mm 63.5 mm

LVCM-051-165-03 1.00 inch 26.5 lb 83.8 lb 13.1 lb/A 11.6 oz 330 oz 2.000 inch 2.50 inch
Datasheet in PDF 25.4 mm 117.7 N 372.3 N 58.2 N/A 72.7 gr 2060 gr 50.8 mm 63.5 mm

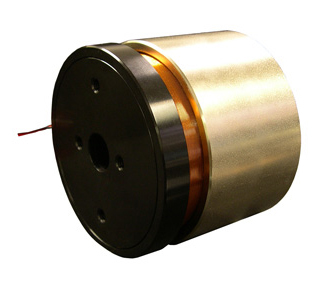

LVCM-070-038-01 0.50 inch 14.5 lb 45.9 lb 4.7 lb/A 0.42 oz 2.1 lb 2.750 inch 1.50 inch
Datasheet in PDF 12.7 mm 64.6 N 204.4 N 21.2 N/A 192 gr 0.95 kg 69.9 mm 28.6 mm

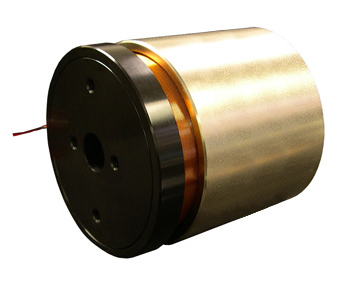

LVCM-070-051-01 1.00 inch 14.6 lb 46.0 lb 5.5 lb/A 0.53 oz 2.74 oz 2.750 inch 2.00 inch
Datasheet in PDF 25.4 mm 64.7 N 204.3 N 24.4 N/A 240 gr 1.24 kg 69.9 mm 50.8 mm

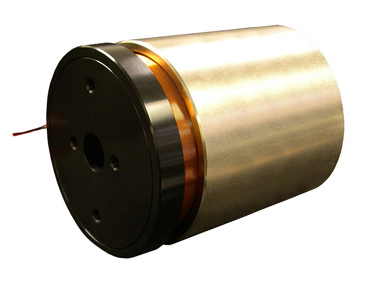

LVCM-070-064-01 1.50 inch 14.4 lb 45.5 lb 2.5 lb/A 0.67 oz 3.37 lb 2.750 inch 2.50 inch
Datasheet in PDF 38.2 mm 64.0 N 202.0 N 11.0 N/A 305 gr 1.53 kg 69.9 mm 63.5 mm

LVCM-070-064-02 0.50 inch 28.7 lb 90.5 lb * oz/A * oz * oz * inch * inch
Datasheet in PDF 12.7 mm 128.0 N 403.0 N * N/A * gr * gr * mm * mm

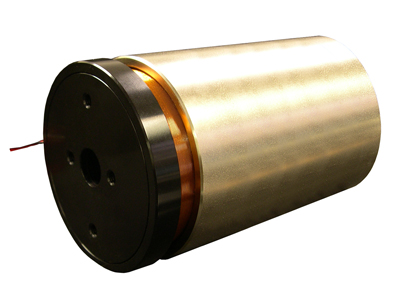

LVCM-070-089-01 2.50 inch 14.1 lb 44.6 lb 2.6 lb/A 0.904 oz 4.67 lb 2.750 inch 3.50 inch
Datasheet in PDF 63.5 mm 62.8 N 198.3 N 11.5 N/A 410 gr 2.12 kg 69.9 mm 88.9 mm

LVCM-070-089-02 1.00 inch 33.9 lb 107.1 lb 6.3 lb/A 0.873 oz 4.69 lb 2.750 inch 3.50 inch
Datasheet in PDF 25.4 mm 150.7 N 476.3 N 28.2 N/A 396 gr 2.13 kg 69.9 mm 88.9 mm

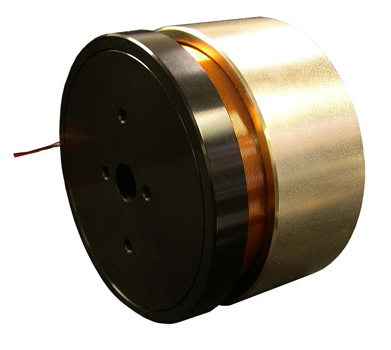

LVCM-095-038-01 0.50 inch 23.1 lb 73.1 lb 8.5 lb/A 0.72 oz 4.07 lb 3.750 inch 1.50 inch
Datasheet in PDF 12.7 mm 102.7 N 324.4 N 38.0 N/A 326 gr 1.85 kg 95.3 mm 28.6 mm

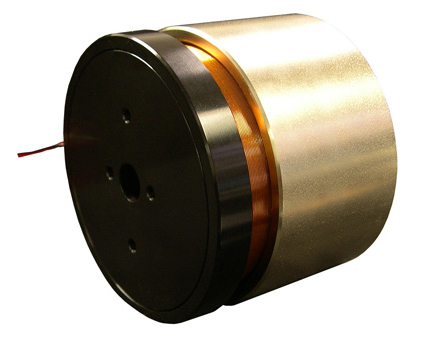

LVCM-095-051-01 1.00 inch 23.4 lb 70.0 lb 10.1 lb/A 0.87 oz 5.34 lb 3.750 inch 2.0 inch
Datasheet in PDF 25.4 mm 104.0 N 328.7 N 44.8 N/A 395 gr 2.42 kg 95.3 mm 50.8 mm

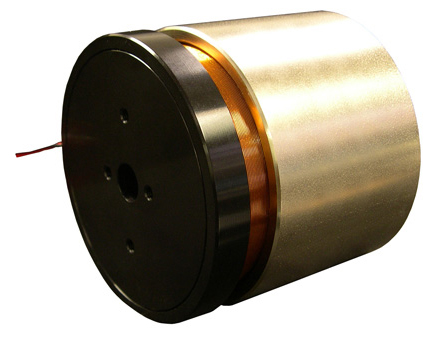

LVCM-095-064-01 1.50 inch 24.4 lb 77.1 lb 4.8 lb/A 1.07 lb 6.61 lb 3.750 inch 2.50 inch
Datasheet in PDF 38.2 mm 108.2 N 342.0 N 21.1 N/A 484 gr 3.00 kg 95.3 mm 63.5 mm

LVCM-095-064-02 0.50 inch 44.9 lb 141.8 lb * lb/A * lb * lb * inch * inch
Datasheet in PDF 12.7 mm 199.1 N 629.2 N * N/A * gr * gr * mm * mm

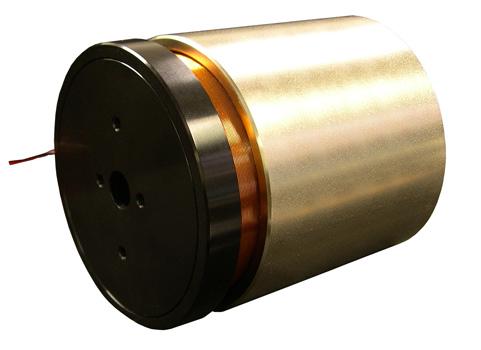

LVCM-095-089-01 2 .50 inch 25.0 lb 79.0 lb 5.0 lb/A 1.39 lb 9.14 lb 3.750 inch 3.50 inch
Datasheet in PDF 63.5 mm 111.2 N 351.3 N 22.2 N/A 632 gr 4.14 kg 95.3 mm 88.9 mm

LVCM-095-089-02 1.00 inch 58.0 lb 183.1 lb 11.6 lb/A 1.37 lb 9.15 lb 3.750 inch 3.50 inch
Datasheet in PDF 25.4 mm 257.7 N 814.5 N 51.6 N/A 621 gr 4.15 kg 95.3 mm 88.9 mm

LVCM-095-089-03 0.50 inch 63.9 lb 202.0 lb * lb/A * lb * lb * inch * inch
Datasheet in PDF 12.7 mm 284.1 N 898.4 N * N/A * gr * gr * mm * mm
