Linear Voice Coil Motor Actuator LVCM-095-038-01, Continuous Force: 23.1 lb (102.8 N), Stroke: 0.50 in (12.7 mm)




Previous Buy Online View Cart Next
Housing Outside Diameter, 3.750 inch, 95.3 mm

Linear Voice Coil Motor

The LVCM-095-038-01 Linear Voice Coil Motor is a servo motor featuring zero cogging, high accuracy, and high repeatability when operated in a closed positioning loop.



Clean non-commutating, zero cogging, zero backlash voice coil motors (also referred to as linear actuators) are, efficient, brushless high speed linear DC servo motors.  This LVCM-095-038-01 Linear Servo is 3.75 in. (95.3 mm) in diameter and has a continuous force of 23.1 lb. (102.7 N) and a peak force of 73.1 lb. (324.4 N) at a 10% duty cycle.



This brushless, energy efficient, smooth motion, compact servo motor just 2.250 in. (57.1 mm) long at mid-stroke, and featuring low inertia, high acceleration/deceleration, and high speed is ideal for:  Work holding and clamping, assembly, positioning, sorting, testing, wafer handling, dynamic vibration absorption, medical devices, industrial and packaging applications.

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
LVCM-095-038-01 0.50 inch 23.1 lb 73.1 lb 1.50 inch
Datasheet in PDF 12.7 mm 102.7 N 324.4 N 28.6 mm

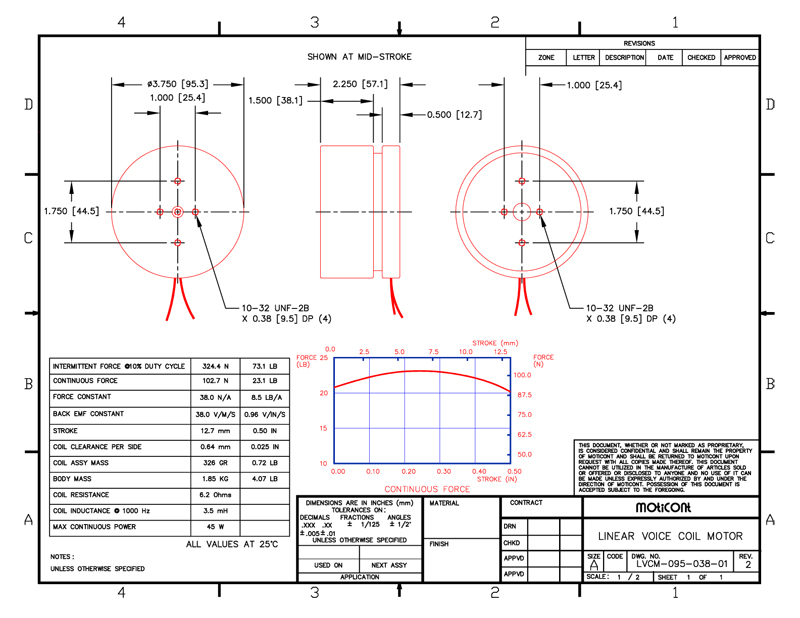

Drawing quick view Mechanical Drawing Download 3D STEP
