Linear Voice Coil Motor Actuator LVCM-070-089-03, Continuous Force: 41.0 lb (182.3 N), Stroke: 0.50 in (12.7 mm)




Previous Buy Online View Cart Next
Housing Outside Diameter, 2.750 inch, 69.9 mm

Linear Voice Coil Motor

The LVCM-070-089-03 linear voice coil motor features 40.86 lbs. (181.5 N) continuous force and 129.1 lbs. (573.4 N) peak force at 10% duty cycle.

This linear voice coil motor has a diameter of 2.750 in. (69.9 mm) diameter, a housing length of 3.50 in. (88.9 mm).

This clean, quiet, efficient, low inertia, high acceleration, brushless high speed linear motor has zero cogging and features high accuracy, and a high repeatability when operated in a closed loop as a DC servo motor.

This compact, powerful motor is ideal for: work holding and clamping, antenna positioning, medical devices, assembly, testing, laser machining and drilling, wafer handling, optical focusing, dynamic vibration absorption, scanners and laser beam steering and filtering.

The LVCM-070-089-03 linear voice coil motor linear motor has a stroke length of 1.00 in (25.4 mm). and can be  easily added to new or existing applications.

Model # Stroke   Continuous Force   Intermittent Force @ 10% Duty Cycle   Housing Length
LVCM-070-089-03 0.50 inch 41.0 lb 129.6 lb 3.50 inch
Datasheet in PDF 12.7 mm 182.3 N 576.6 N 88.9 mm

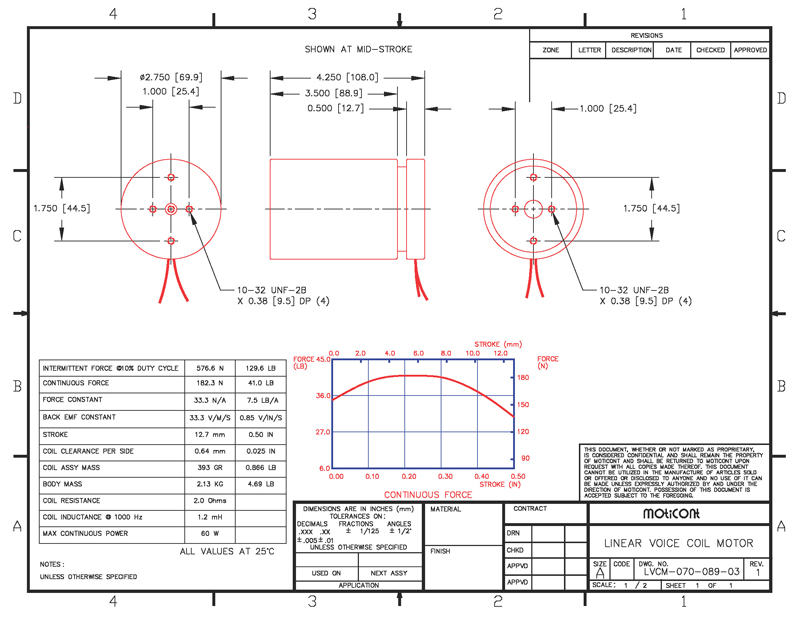

Drawing quick view Mechanical Drawing Download 3D STEP
