Linear Motor Actuators



The Linear Motor Actuator is used in positioning applications where high speed and high accuracy are required. The actuator may be used in the following industries; Semiconductor, Disk Drive, Automotive, Medical, Industrial, Optical, Test and Manufacturing.


Voice coil motors do not need commutation and using a position sensor, positioning accuracies of less than one micron or 0.00004 inches are achievable.


Each actuator is integrated with a quadrature position sensor, inner limit, outer limit and home switch.


Customized solutions can be provided upon request.



  • High Acceleration
  • High Speed
  • High Accuracy
  • Cog Free
  • High Repeatability
  • Independent Multiple Coil Operation with Overlapping Trajectories
  • No Metal-to-Metal Contact, Virtually Maintenance Free
  • Modular Magnet Tracks
  • Trapezoidal or Sinusoidal Commutation
  • Increased throughput, a Function of High Acceleration





Linear Motor Actuator LMA-051-051-01
  • Range of Motion: 0.7” (17.8 mm) Max
  • Continuous Force: 6.0 lb (26.7 N)
  • Intermittent Force: 19 lbs (84.3 N) at 10% duty cycle
  • Optional Return Spring
  • Quadrature Optical Encoder with Optional Differential Outputs
  • Built-in Home Switch
LMA-051-051-01
Drawing quick view Mechanical Drawing




Linear Motor Actuator LMA-051-064-01
  • Range of Motion: 1.2” (30.5 mm) Max
  • Continuous Force: 6.4 lb (28.4 N)
  • Intermittent Force: 20.2 lbs (89.9 N) at 10% duty cycle
  • Optional Return Spring
  • Quadrature Optical Encoder with Optional Differential Outputs
  • Built-in Home Switch
LMA-051-064-01
Drawing quick view Mechanical Drawing



Linear Motor Actuator LMA-051-089-01
  • Range of Motion: 2.2” (55.9 mm) Max
  • Continuous Force: 6.0 lb (26.7 N)
  • Intermittent Force: 19 lbs (84.3 N) at 10% duty cycle
  • Optional Return Spring
  • Quadrature Optical Encoder with Optional Differential Outputs
  • Built-in Home Switch

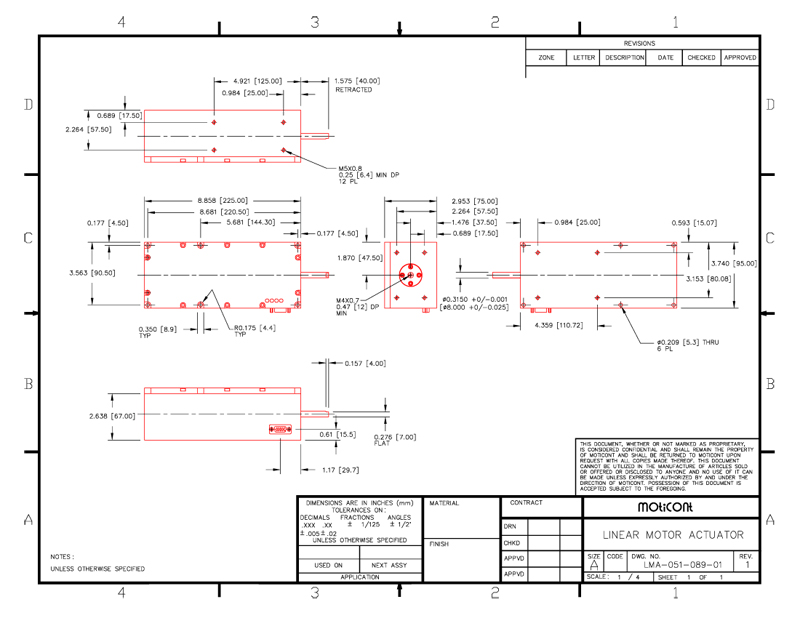

LMA-051-089-01
Drawing quick view Mechanical Drawing



Linear Motor Actuator LMA-051-165-01
  • Range of Motion: 5.2” (132.1 mm) Max
  • Continuous Force: 3.2 lb (14.2 N)
  • Intermittent Force: 10.1 lbs (44.9 N) at 10% duty cycle
  • Optional Return Spring
  • Quadrature Optical Encoder with Optional Differential Outputs
  • Built-in Home Switch
LMA-051-165-01
Drawing quick view Mechanical Drawing
