Linear Voice Coil Motor Actuator LVCM-013-025-03M, Continuous Force: 7.9 Oz (2.20 N), Stroke: 0.375 in (9.5 mm)
 |
 |
 |
| Housing Outside Diameter, 0.500 inch, 12.7 mm | ||||||||
|
||||||||
| Metric Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-013-025-03M | 0.375 | inch | 2.9 | oz | 25.0 | oz | 1.000 | inch |
Datasheet in PDF  |
9.5 | mm | 0.79 | N | 6.96 | N | 25.4 | mm |

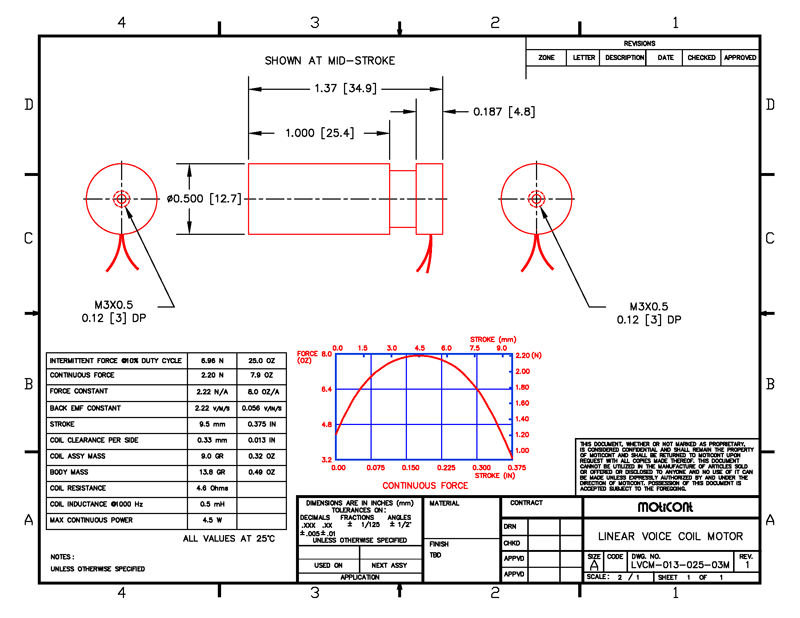

Drawing quick view
 |
Download 3D STEP |
|||||||
| ||||||||
