Linear Voice Coil Motor Actuator LVCM-013-019-03M, Continuous Force: 6.8 Oz (1.90 N), Stroke: 0.25 in (6.4 mm)
 |
 |
 |
| Housing Outside Diameter, 0.500 inch, 12.7 mm | ||||||||
|
||||||||
| Metric Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-013-019-03M | 0.25 | inch | 6.8 | oz | 21.6 | oz | 0.750 | inch |
Datasheet in PDF  |
6.4 | mm | 1.90 | N | 5.01 | N | 19.1 | mm |

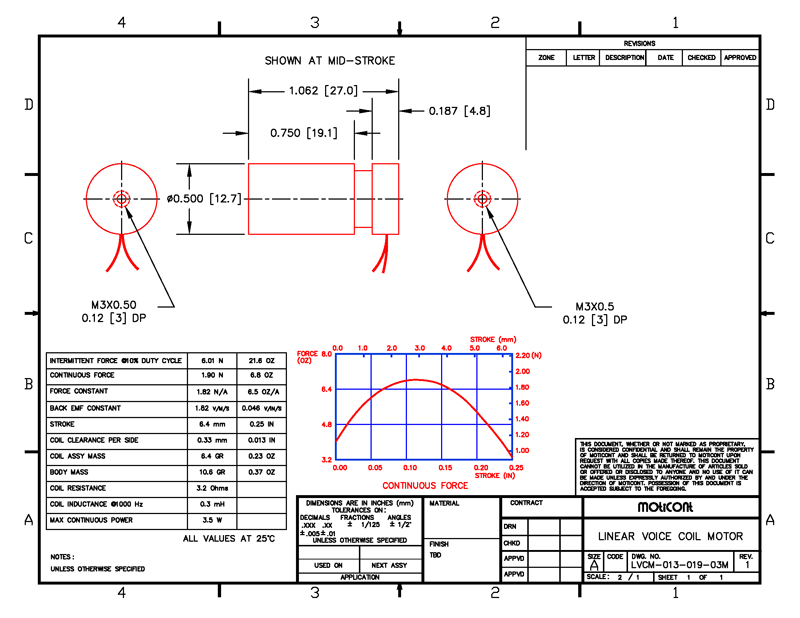

Drawing quick view
 |
Download 3D STEP |
|||||||
| ||||||||
