Linear Voice Coil Stage, VCDS-032-038-02-F2-01
Continuous Force: 3.8 lb (16.6 N), Range of Motion: 0.97” (24.6 mm), Resolution: 1 micron

Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

Cable is not included and is sold separately
Optional cables CBL-01 or CBL-04

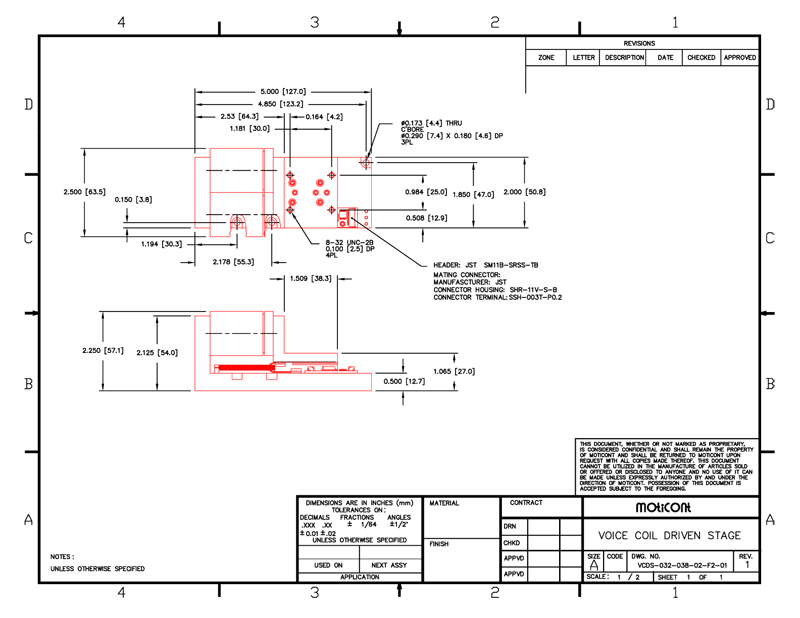

VCDS-032-038-02-F2-01

Datasheet in PDF

STAGE SPECIFICATIONS
Intermittent Force @ 10% Duty Cycle	52.2	N	11.8	lb
Continuous Force	16.6	N	3.8	lb
Force Constant	4.2	N/A	0.94	lb/A
BACK EMF Constant	4.2	V/M/S	0.11	V/in/S
Stroke	24.6	mm	0.97	in
Moving Mass	180	gr	6.3	oz
Total Mass	855	gr	30.2	oz
Coil Resistance	2.1	Ohm
Coil Inductance at 1000 Hz	0.6	mH
Continuous Power	32	W

Pin Assignment

Pin	Description
1	+5 VDC Power
2	A- Channel of Quadrature Encoder
3	B+ Channel of Quadrature Encoder
4	A+ Channel of Quadrature Encoder
5	Return for +5 VDC Power
6	Reference Signal, Active High
7	B- Channel of Quadrature Encoder
8	Motor Minus
9	Motor Plus
