Linear Voice Coil Motor Actuator LVCM-025-029-02, Continuous Force: 37.6 Oz (10.5 N), Stroke: 0.31 in (7.9 mm)
 |
 |
 |
| Housing Outside Diameter, 1.000 inch, 25.4 mm | ||||||||
|
||||||||
|
These miniature 1 inch (25.4 mm)
diameter brushless high speed linear servo motors feature high
force-to-size ratios, and zero cogging. Clean, quiet, and efficient they
feature high accuracy and high repeatability, and sub-micron resolution
when operated in a closed loop as a DC servo motor. Featuring low inertia and high acceleration/deceleration for high throughput, these new linear servo motors have a stroke length of 0.313 in. (7.9mm), a high-force-to-size ratio of 37.6 oz. (10.5 N) and a peak force of 118.9 oz. (33.1N) at 10% duty cycle.
Compact, these linear voice coil motors, also
known as a Moving Coil Motors, are ideal for: Medical devices, dynamic
vibration absorption, haptic feedback, work holding and clamping,
scanners, laser beam steering and filtering, laser machining and
drilling, wafer handling assembly, testing, and optical focusing. |
||||||||
| Imperial Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-025-029-02 | 0.313 | inch | 37.6 | oz | 118.9 | oz | 1.125 | inch |
Datasheet in PDF  |
7.9 | mm | 10.5 | N | 33.1 | N | 28.6 | mm |

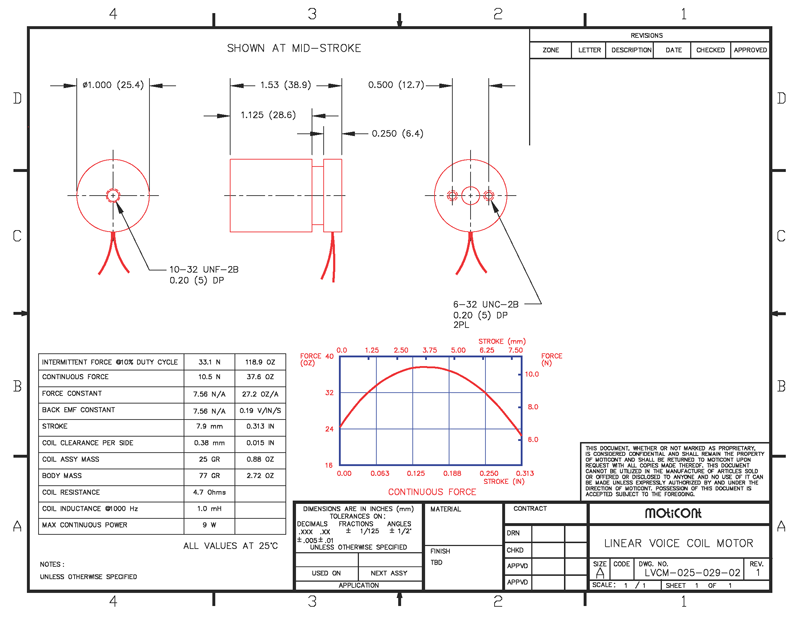

Drawing quick view
 |
Download 3D STEP |
|||||||
| ||||||||
| Metric Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-025-029-02M | 0.313 | inch | 37.6 | oz | 118.9 | oz | 1.125 | inch |
|
Datasheet in PDF |
7.9 | mm | 10.5 | N | 33.1 | N | 28.6 | mm |

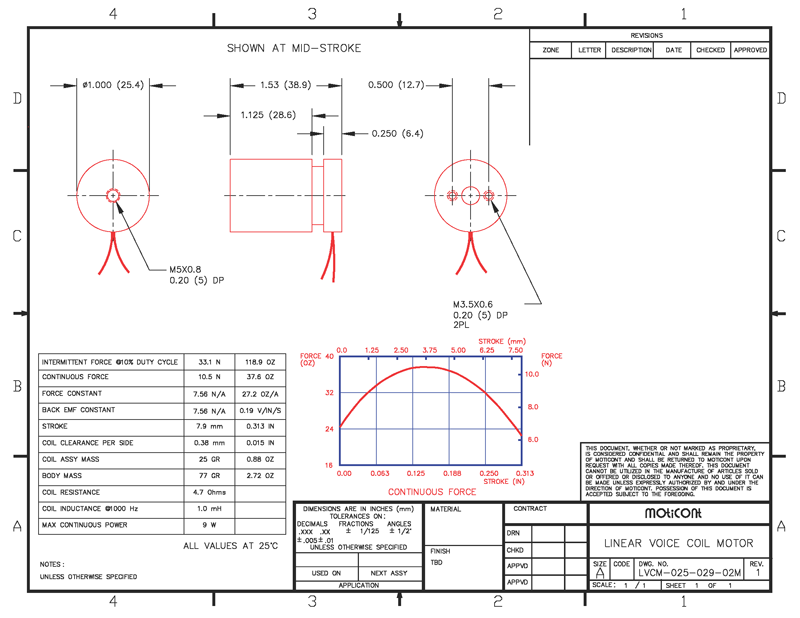

Drawing quick view
 |
Download 3D STEP |
|||||||
|
| ||||||||
